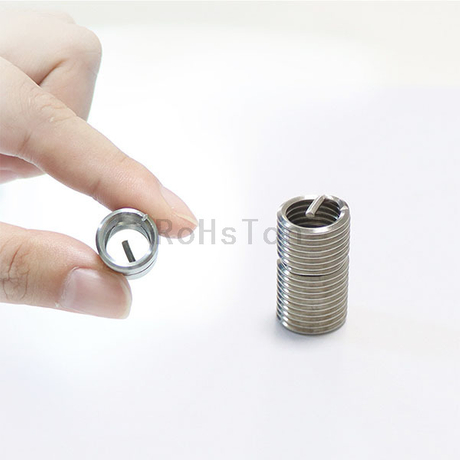

A self-tapping insert is a cylindrical sleeve, typically made of metal, featuring external threads designed to cut or form threads into a pre-drilled hole in the host material (like aluminum, plastic, wood, or thin sheet metal). Simultaneously, it has precise internal threads that accept a standard machine screw or bolt. Essentially, it acts as a bridge, providing a robust threaded connection point where the base material alone would be insufficient or unreliable.
Self-tapping inserts are manufactured from various materials chosen for strength, corrosion resistance, and compatibility with the host material:
Stainless Steel (A2/AISI 304, A4/AISI 316): Most common, offering excellent corrosion resistance and good strength. A4 is preferred for harsh environments.
Carbon Steel: Often zinc-plated for corrosion resistance; offers high strength at a lower cost than stainless.
Aluminum Alloys: Used where weight is critical and high strength isn't the primary requirement (e.g., some aerospace or electronics applications). Offers good corrosion resistance.
Brass: Primarily used for its anti-galling properties and corrosion resistance in specific applications (e.g., marine, plumbing). Less common than steel.
Phosphor Bronze: Used for wear resistance and conductivity in electrical applications.
Cylindrical Body: The main sleeve.
External Threads: These are the key to "self-tapping." They are usually coarse, sharp, and often have a cutting flute or notch near the leading end. This design allows the insert to cut or form threads into the host material as it's installed. The thread profile might be specific to the insert type (e.g., some mimic a wood screw thread).
Internal Threads: Fine-precision machine screw threads (e.g., Metric, UNC, UNF) designed to accept standard fasteners. This is the "usable" thread after installation.
Drive Feature: A slot or recess at the top to engage an installation tool (screwdriver, hex key, or specialized mandrel). Common types include slotted, hex socket (Allen), or cruciform (Phillips).
Lead-in Taper: The leading end is often tapered to aid starting in the hole.
Knurled or Ribbed Shank (Optional): Some inserts have a knurled section below the head or along the shank. This increases grip within the host material, especially in softer substrates like plastic or wood, preventing rotation under load ("spin-out").
Flange/Head (Optional): A wider collar at the top provides a bearing surface, helps with alignment, and countersinks the insert flush or slightly below the surface.
Self-tapping inserts come in a vast range of sizes, defined by two key dimensions:
Internal Thread Size (Core Size): The size of the screw/bolt the insert accepts (e.g., M3, M4, M5, M6, M8, M10, M12; #4-40, #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18).
External Size (Installation Size): The diameter of the pre-drilled hole required for installation (e.g., hole sizes corresponding to inserts designed for M3 internal might be 4.2mm or 5.0mm, depending on the specific insert model and material thickness).
Finishes enhance corrosion resistance, appearance, lubricity, or electrical properties:
Zinc Plating (Clear, Yellow, Black): Most common for carbon steel, offering basic corrosion protection. Chromate conversion coatings (yellow, iridescent, black) often enhance this.
Passivation: For stainless steel, removes free iron and enhances the natural oxide layer for maximum corrosion resistance.
Anodizing: Primarily for aluminum inserts, providing corrosion and wear resistance in various colors (clear, black, red, etc.).
Phosphating/Parkerizing: Creates a corrosion-resistant, mildly lubricious phosphate coating, often used under paint or for carbon steel.
Dry Film Lubricants (e.g., Molybdenum Disulfide): Applied to reduce friction during installation and service.
Electroless Nickel: Provides excellent corrosion and wear resistance with a uniform coating.
Installation is relatively simple but requires the correct hole size and tool:
Drill: Drill a hole in the host material to the exact diameter specified for the insert. Hole depth should equal or slightly exceed the insert length.

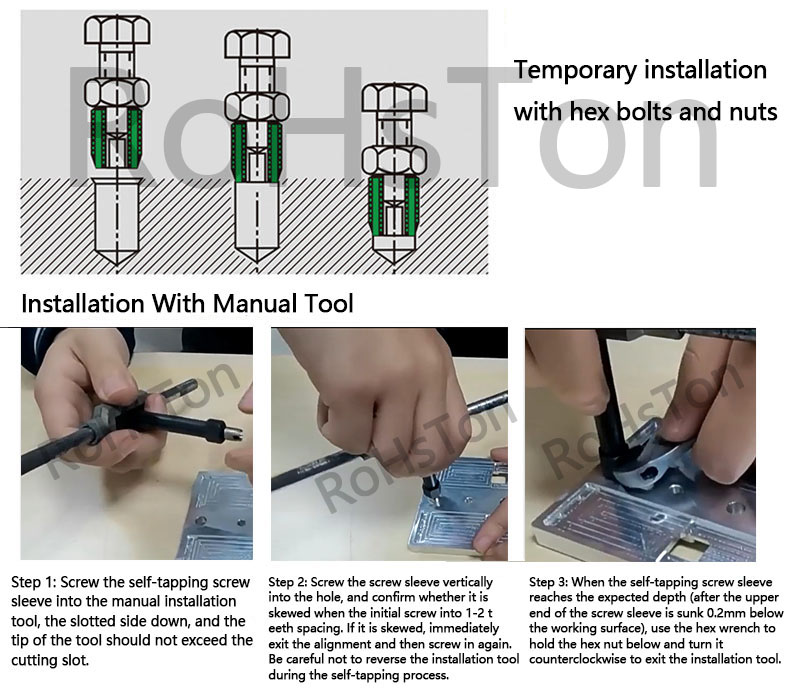

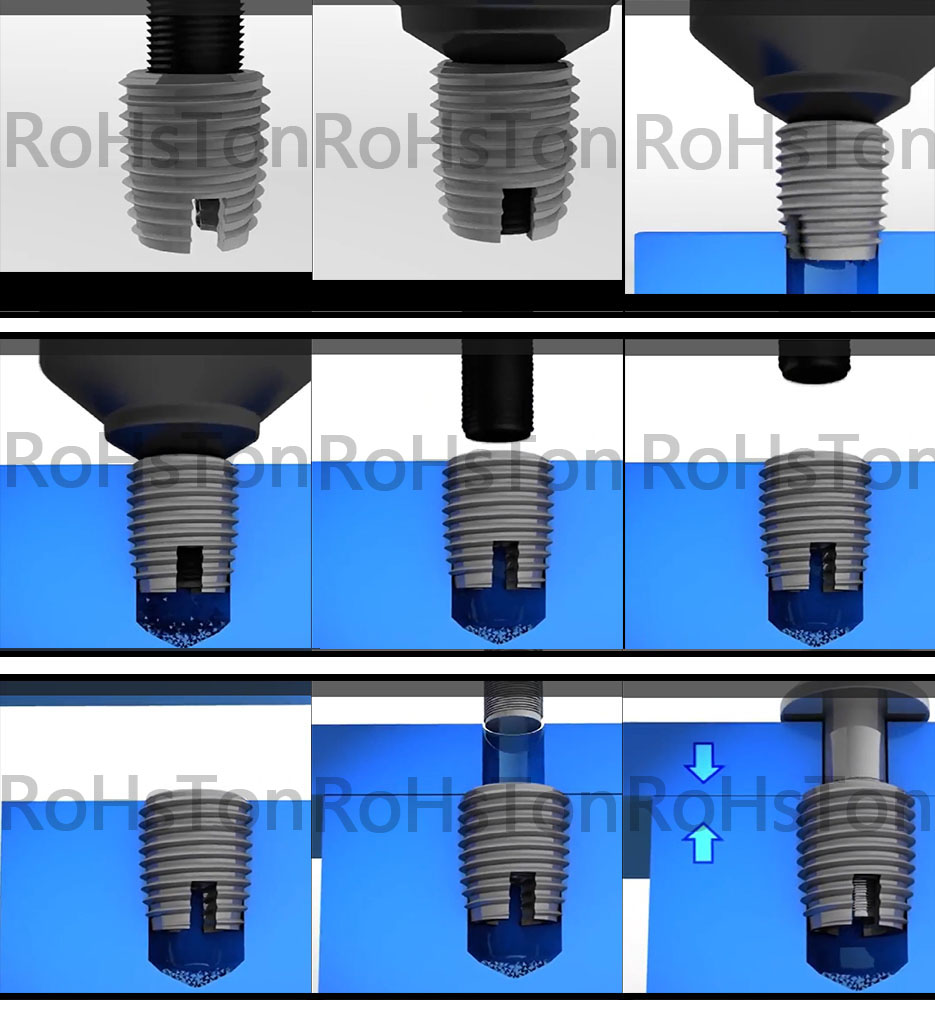

Drive: Insert the self-tapping insert into the hole. Using the appropriate driver bit (screwdriver, hex key, or mandrel attached to a hand driver, electric screwdriver, or drill), rotate the insert clockwise. The sharp external threads will cut or form mating threads into the wall of the hole.
Seat: Continue driving until the insert is flush with or slightly below the surface (as per design). Avoid overtightening, which can strip the newly formed threads.
Fasten: The internal threads are now ready to accept the designated machine screw or bolt.
Self-tapping inserts are ubiquitous where strong, reusable threads are needed in materials that lack the strength or durability for direct threading:
Repairing Stripped Threads: The classic use case - salvaging damaged threads in engine blocks, machinery housings, aluminum castings, or plastic parts.
Reinforcing Soft Materials: Providing durable threads in plastics (nylon, ABS, PVC), wood, particle board, MDF, and thin sheet metal where screws would pull out easily.
Design for Assembly: Used in new product designs (especially consumer electronics, appliances, automotive interiors, furniture) to allow repeated assembly/disassembly without wearing out the base material.
Joining Dissimilar Materials: Creating a strong threaded point in a softer material to bolt onto a harder material.
Aerospace: Used in non-critical structures and interiors (panels, brackets) in aluminum and composite materials.
Automotive: Interior trim, plastic components, aluminum housings.
Marine: Fittings in fiberglass, wood, or aluminum.
Industrial Machinery: Mounting components to sheet metal guards, plastic covers, or soft metal frames.
In essence, the self-tapping insert is a versatile and robust fastener that solves the problem of weak or damaged threads by embedding a permanent, high-strength threaded bushing directly into the host material, significantly improving the reliability and longevity of bolted joints.
