What Is The Difference Between SMT And SMD?

In the world of modern electronics manufacturing, especially when dealing with printed circuit boards (PCBs), you'll frequently encounter the terms SMT and SMD. While often used interchangeably (and sometimes confusingly), they represent distinct but intrinsically linked concepts. Understanding the difference is key to grasping how most of today's electronic devices are built.

SMT: Surface Mount Technology (The Process)

• What it is: SMT stands for Surface Mount Technology. It refers to the entire methodology and process of mounting electronic components directly onto the surface of a PCB.

• Core Concept: Instead of inserting component leads through holes drilled in the board (as in traditional Through-Hole Technology - THT), components are placed and soldered onto specially designed copper pads (called "land patterns") on the surface of the PCB.

• The Process: The SMT process typically involves several automated stages:

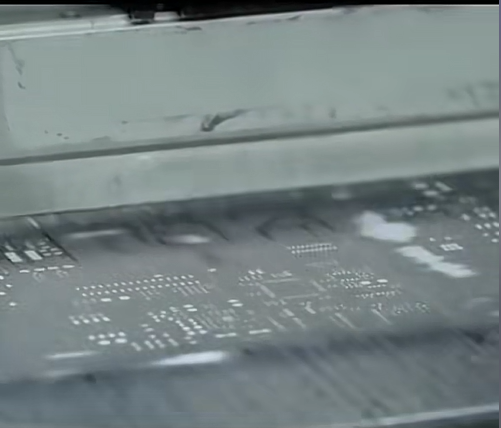

1. Solder Paste Application: A stencil is placed over the PCB, and solder paste (a sticky mixture of flux and tiny solder balls) is printed onto the pads.

2.

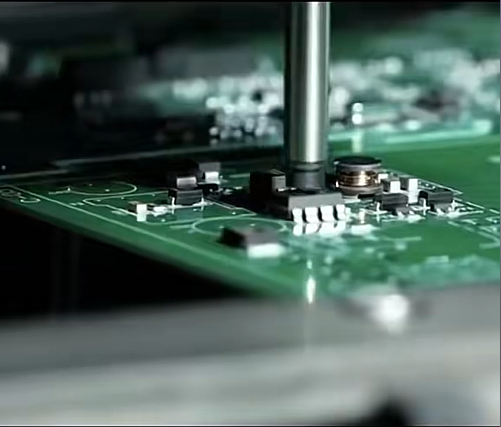

3. Component Placement: High-precision pick-and-place machines pick up components from reels or trays and accurately position them onto the solder paste-covered pads.

4.

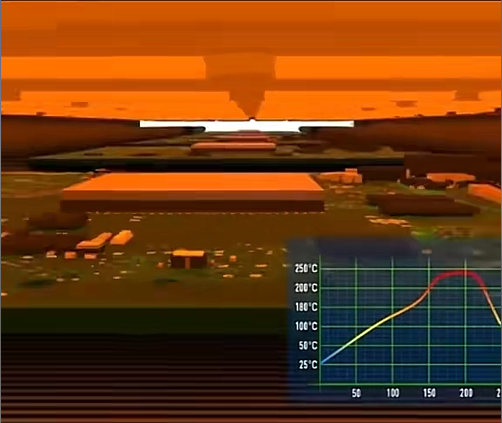

5. Reflow Soldering: The populated PCB passes through a reflow oven. Controlled heating melts the solder paste, forming permanent electrical and mechanical connections between the component terminations and the PCB pads as it cools.

6.

• Key Advantages of SMT:

• Miniaturization: Allows for much smaller components and higher component density (more parts per board).

• Speed & Automation: Highly automated, enabling very high-volume, efficient production.

• Performance: Shorter lead lengths reduce parasitic inductance and capacitance, often improving high-frequency performance.

• Cost-Effectiveness (at scale): Reduced board drilling and material costs; faster assembly.

• Dual-Sided Assembly: Components can easily be placed on both sides of the PCB.

SMD: Surface Mount Device (The Component)

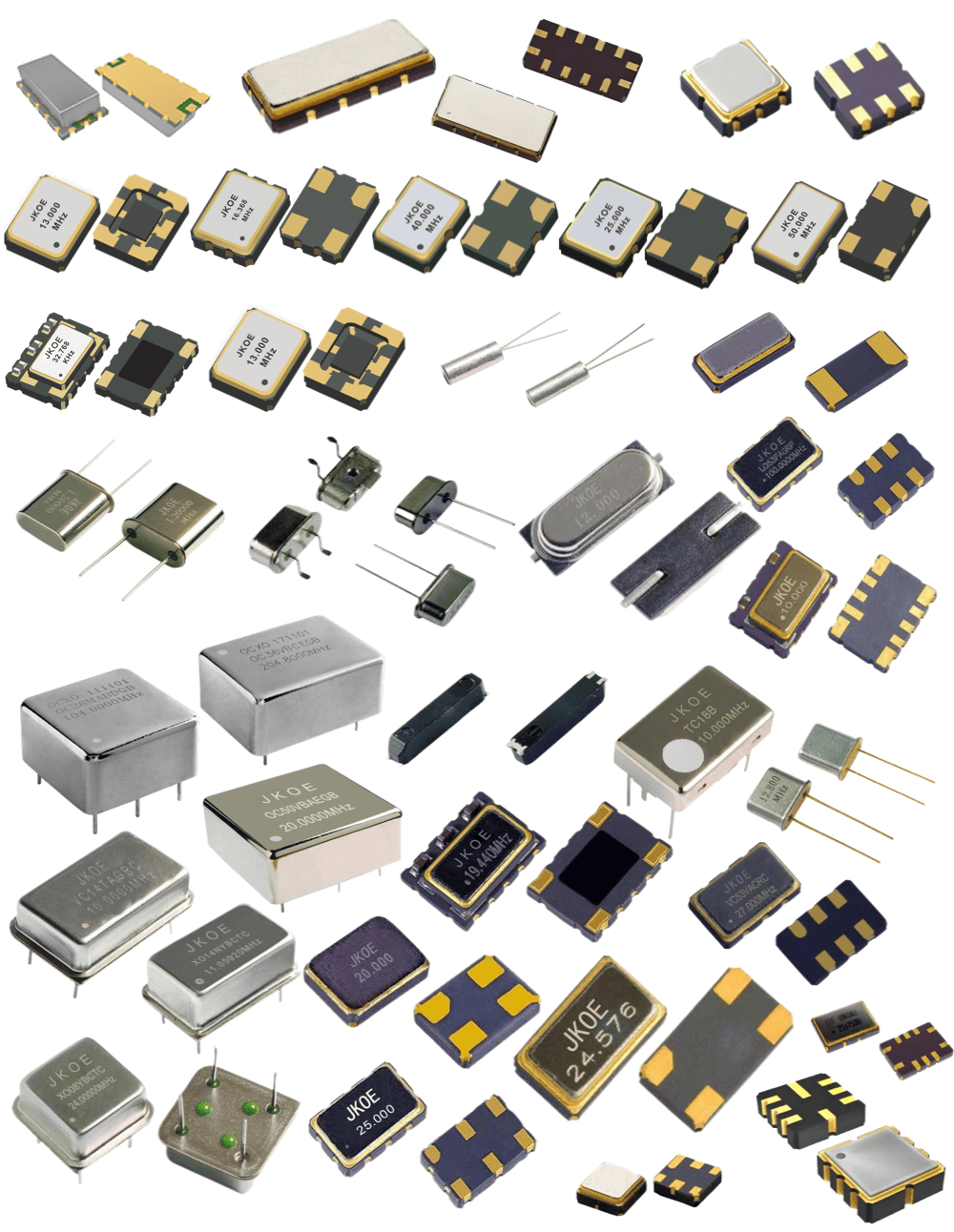

• What it is: SMD stands for Surface Mount Device. It refers to the actual electronic component itself that is designed to be mounted using Surface Mount Technology.

• Core Concept: An SMD has specific features (like flat terminals, small solder balls, or short leads) that allow it to be placed directly onto the surface pads of a PCB and soldered using SMT processes (reflow soldering). They lack the long wire leads characteristic of through-hole components.

• Characteristics of SMDs:

• Small Size: Ranging from tiny passive components (like 0201 resistors: 0.02" x 0.01") to large integrated circuits (ICs) with hundreds of pins.

• Flat Terminations: Pads, gull-wing leads, J-leads, or solder balls (as in Ball Grid Arrays - BGAs) instead of wire leads.

• Standardized Packaging: Components come in standardized package sizes and types (e.g., resistors/capacitors: 0402, 0603, 0805; ICs: SOIC, QFP, BGA, LGA).

• Types of SMDs:

• Passives: Resistors (R), Capacitors (C), Inductors (L), Ferrite Beads.

• Actives: Diodes, Transistors, Integrated Circuits (ICs - microcontrollers, memory, processors, FPGAs, etc.).

• Electromechanical: Connectors, switches, small relays (specifically designed for SMT).

•

Key Differences Summarized

Applications: Where You Find SMT and SMDs

The combination of SMT and SMDs is absolutely dominant in modern electronics manufacturing. You'll find them in virtually every compact electronic device:

• Consumer Electronics: Smartphones, tablets, laptops, smartwatches, TVs, gaming consoles, cameras, headphones.

• Computing: Motherboards, graphics cards, solid-state drives (SSDs), servers.

• Communication: Routers, modems, base stations, smartphones (again!).

• Automotive: Engine control units (ECUs), infotainment systems, sensors, advanced driver-assistance systems (ADAS).

• Medical Devices: Pacemakers, hearing aids, imaging equipment, portable monitors.

• Industrial Electronics: PLCs, motor drives, control systems, sensors.

• Aerospace and Defense: Avionics, guidance systems, communication equipment (where miniaturization and reliability are critical).

Conclusion

In essence:

• SMDs are the building blocks – the tiny resistors, capacitors, chips, and other components designed for surface mounting.

• SMT is the construction method – the advanced, automated process used to place and solder those SMDs onto the surface of printed circuit boards.

They are two sides of the same coin. SMT revolutionized electronics manufacturing by enabling the use of SMDs, which in turn enabled the incredible miniaturization, complexity, and performance we expect from modern electronic devices. You cannot effectively practice SMT without SMDs, and SMDs rely on SMT processes to be utilized. Understanding this distinction clarifies the language and processes fundamental to contemporary electronics production.

Key Takeaways:

• SMT = Process (Surface Mount Technology)

• SMD = Component (Surface Mount Device)

• SMT is used to assemble SMDs onto PCBs.

• Together, they enable the small, powerful, and ubiquitous electronics we use daily.
