Views: 1000 Author: Site Editor Publish Time: 2025-07-05 Origin: Site
Coohsing the right Helicoil® wire thread insert (or any equivalent wire thread insert) is crucial for a successful, strong, and long-lasting threaded repair or reinforcement. Selecting the wrong one can lead to installation problems, weak threads, or component failure. Here’s a step-by-step guide to determining exactly which Helicoil you need:

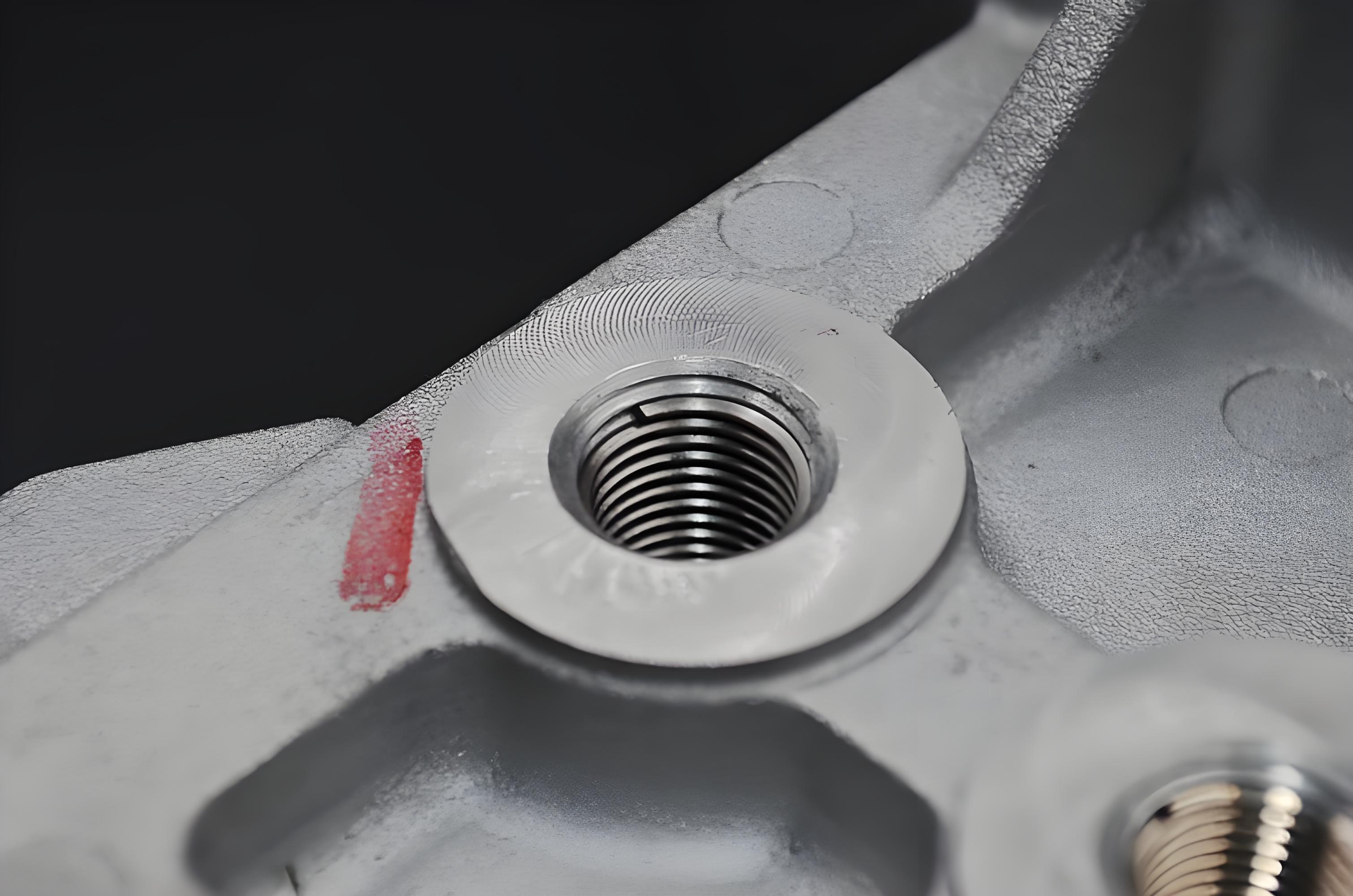

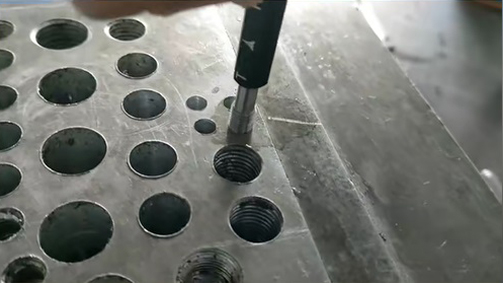

Identify the Original Bolt/Screw: Use a thread pitch gauge and calipers to measure the diameter and threads per inch (or mm pitch) of the bolt that screwed into the hole before it was damaged. This defines the thread size you need to replicate internally.
Check Existing Tapping (if possible): If the hole is only partially damaged, you might still be able to measure its size and pitch with a thread gauge.
Consult Machinery Manuals/Drawings: If available, these will specify the thread size for the hole.
This is the MOST critical factor. The Helicoil insert must match the internal thread (the tapped hole) you are repairing or creating.
How to Determine:
Result: You now know the Nominal Size (e.g., M8, 5/16") and the Thread Pitch (e.g., 1.25, 18 TPI). This defines the Helicoil's "size" (e.g., Helicoil M8x1.25 or Helicoil 5/16"-18).
Measure the Hole Depth: Carefully measure the depth of the usable threaded hole (or the depth you intend to tap to) using a depth gauge. Subtract a small safety margin (1-2 thread pitches) to ensure the insert won't bottom out.
Consider the Application:
Standard Duty: Typically requires an insert length of 1.5 times the nominal diameter (1.5D). This provides sufficient strength for most applications.
High Strength/Critical Applications: Use 2D or 3D for maximum strength and load distribution, especially in softer materials like aluminum or plastic. Check engineering specifications if available.
Minimum Engagement: The insert must be long enough to engage the full length of the mating bolt/screw's threads. Generally, the insert should be at least as long as the bolt's threaded portion entering the hole.
Helicoils come in various standard lengths (usually specified as multiples of the nominal diameter, e.g., 1D, 1.5D, 2D, 3D).
How to Determine:
Result: You determine the required Length Code (e.g., 1.5D, 2D, 3D). So, for an M6 hole needing standard length, you'd look for Helicoil M6x1.0 - 1.5D.

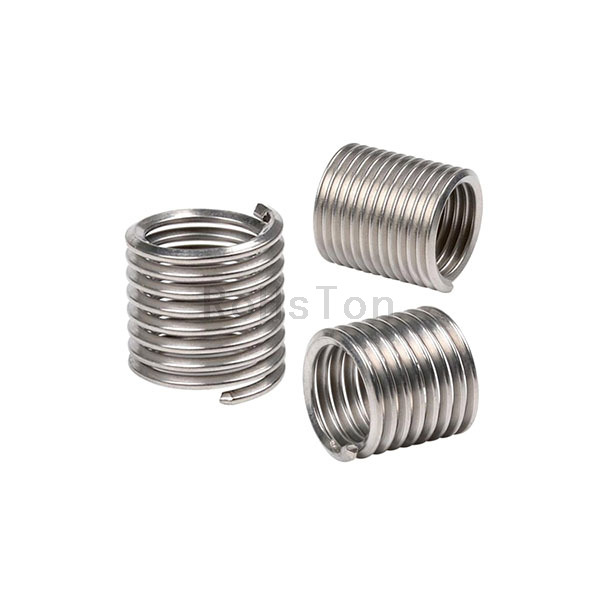

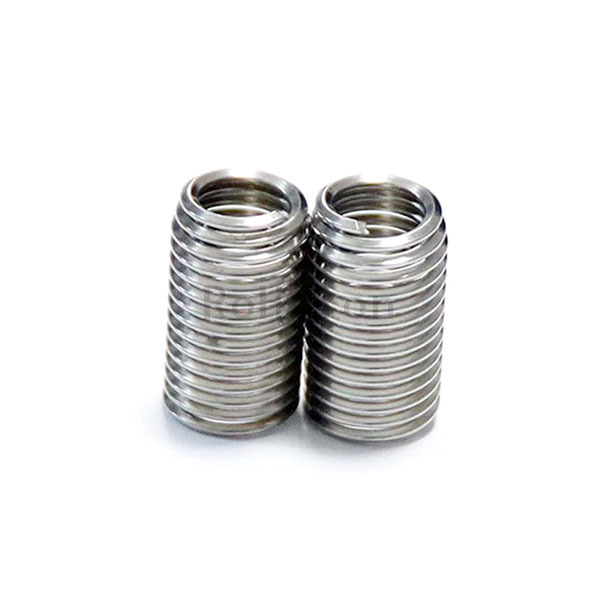

Standard Tang Style (Most Common): Has a tang (drive lug) for installation that must be broken off afterwards. Widely available and suitable for most repairs.
Tangless (e.g., Helicoil Taptite 2G): No tang to break off. Essential for blind holes where the tang couldn't be removed, or applications where a loose tang could cause catastrophic damage (e.g., aerospace, engines). Requires a special installation tool.
Solid Body Inserts (e.g., Helicoil STI): Made from solid bar stock, not wire. Used for extremely high loads, high temperatures, or where maximum wall thickness is needed. Require different tapping and installation.
High-Temperature Alloys: Available in materials like Inconel for extreme heat applications.
Corrosion-Resistant Alloys: Available in materials like 316 Stainless Steel for harsh environments.

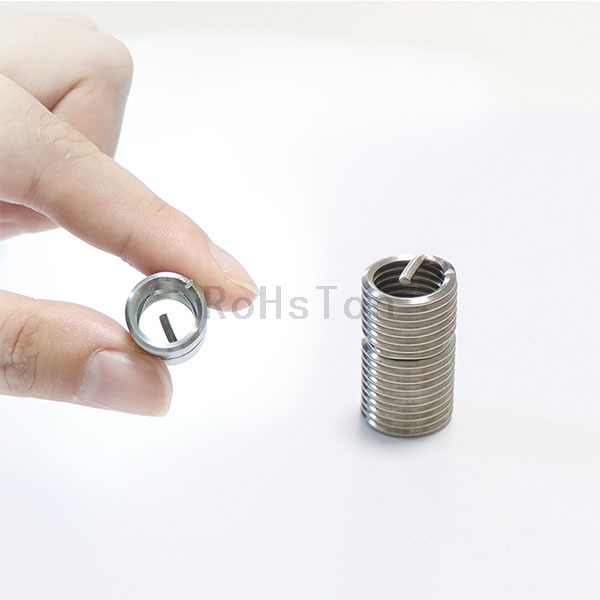

Free-Running vs. Screw Locking: Standard inserts provide free-running threads. Screw-locking versions add prevailing torque to prevent loosening.
Result: Choose the Type based on hole accessibility (blind/open), criticality, temperature, corrosion needs, and locking requirements. For most general repairs, the standard tang style in standard material (often carbon steel or 18-8 SS) is sufficient.
Base Material: The material you are installing the insert into influences tap selection (more critical than the insert itself) and sometimes insert material choice (e.g., stainless insert in aluminum to reduce galvanic corrosion risk).
Operating Environment: Consider temperature, chemicals, vibration, and load types (shear, tension, cyclic). This impacts the choice of insert material and potentially type (e.g., high-temp alloy, corrosion-resistant alloy, screw-locking).
Result: Ensure the Helicoil Material is compatible with the environment and base material. Standard materials work for most applications.
Once you have the information above, you can precisely specify the Helicoil you need. Your specification will look like:
[Brand] [Nominal Size]x[Pitch] - [Length]D - [Type] - [Material]
Example 1 (Common Repair): Helicoil M6x1.0 - 1.5D - Standard Tang - Carbon Steel
Example 2 (Blind Hole): Helicoil 1/4"-20 - 2D - Tangless - Stainless Steel
Example 3 (High Load): Helicoil M10x1.5 - 3D - Solid Body (STI) - Alloy Steel
Don't Forget Installation Tools!
Special Taps: Each Helicoil size/type requires a specific STI Tap (Standard Thread Insert Tap) or equivalent. This tap creates the oversized internal thread needed for the insert. You MUST use the correct tap.

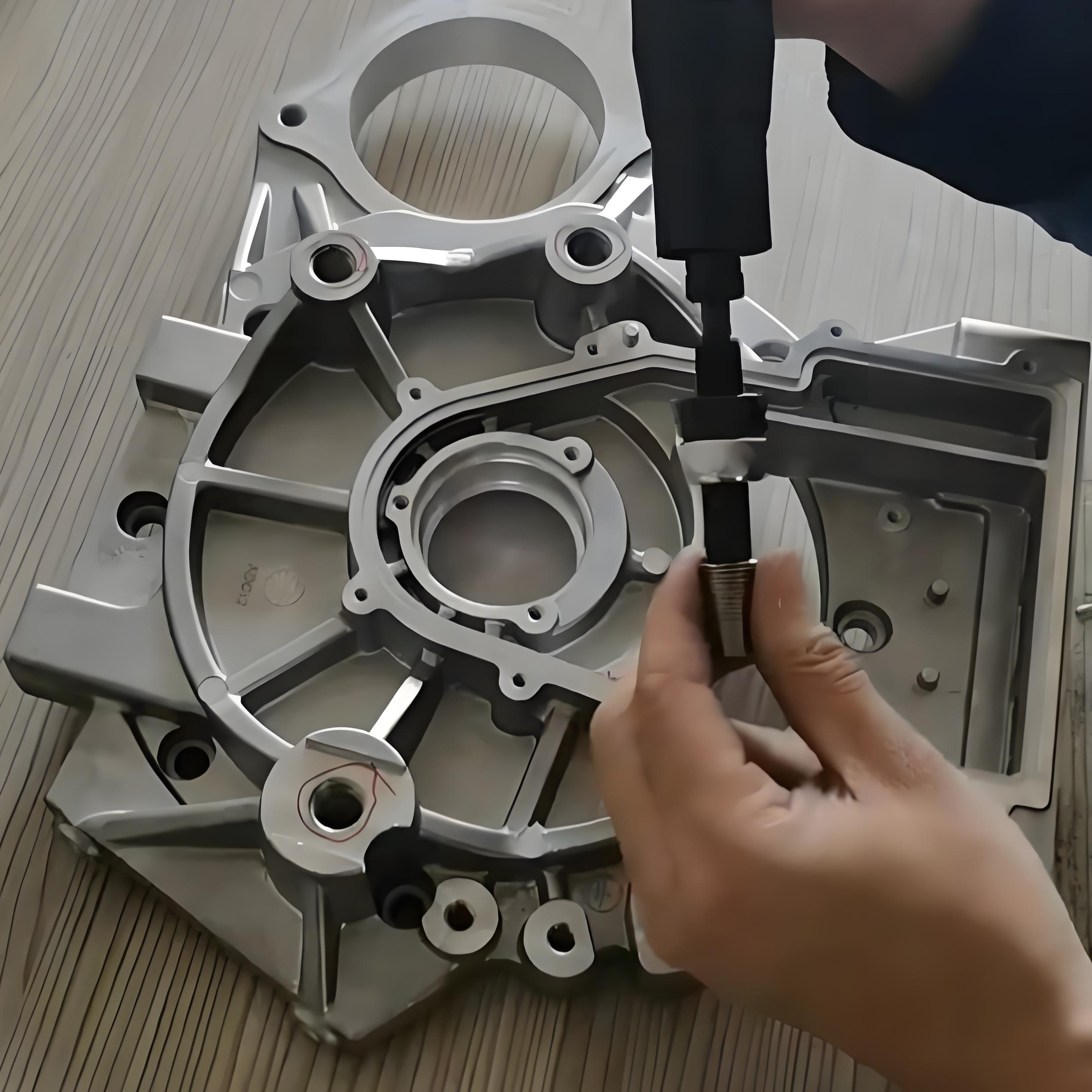

Insertion Tool: Mandrels are needed to wind and install the insert into the tapped hole. Tang inserts require a standard mandrel and tang break-off tool. Tangless inserts require a special tangless mandrel.
Result: Factor in the cost and availability of the correct Tap and Insertion Mandrel for your chosen Helicoil size and type.
Identify the Original Internal Thread Size & Pitch (MUST match).
Determine the Required Insert Length (Measure hole depth, consider application strength needs - 1.5D is common).
Choose the Insert Type (Standard Tang, Tangless, Solid Body, etc.) based on hole type and application demands.
Select the Material based on environment and compatibility.
Ensure you have the Correct Installation Tools (Specific Tap and Mandrel).
By methodically working through these steps, you can confidently select the exact Helicoil wire thread insert needed for a reliable and durable threaded connection. When in doubt, consult the manufacturer's catalog or technical support with your specific thread size, hole depth, and application details.
