Threaded inserts are indispensable components in engineering and manufacturing, providing durable, reliable threads in materials that are too soft, thin, or brittle to hold threads directly. Choosing the correct installation hole size is absolutely critical for their performance. While the simple answer is "slightly smaller than the insert's outer diameter," the specifics depend heavily on the insert type and the base material. Let's delve deeper.
A threaded insert is a sleeve-like fastener with internal threads (accepting a bolt/screw) and an external feature designed to grip the surrounding material (the "host"). They are installed into a pre-drilled hole, creating a robust threaded anchor point where one wouldn't otherwise exist or would wear out quickly.

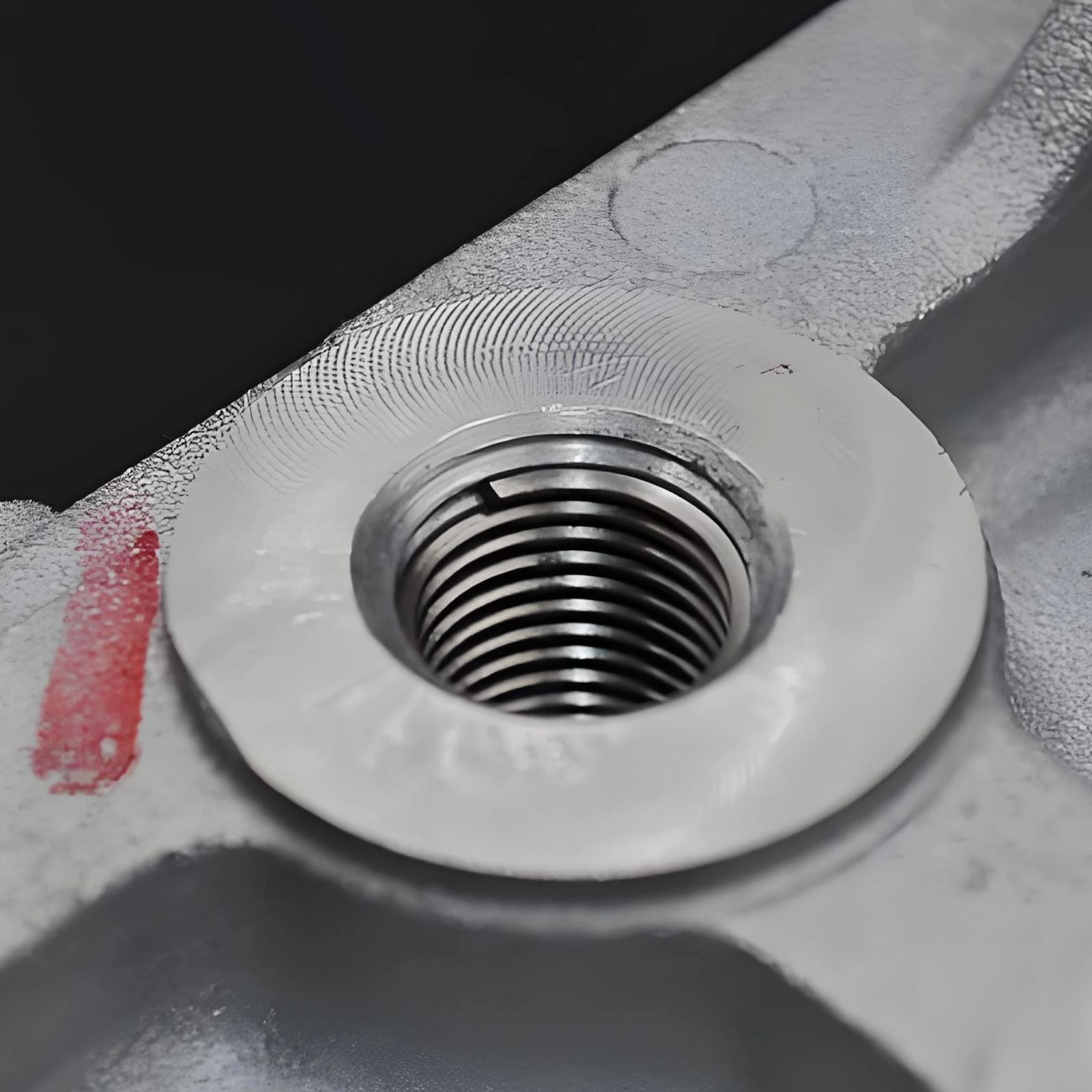

Helical Coil Inserts (e.g., Helicoil®): Made from coiled stainless steel wire with a diamond-shaped cross-section. Installed into a tapped hole, they provide strong threads in softer metals, repair stripped threads, and offer vibration resistance. Hole Prep: Requires a tapped hole matching its specific size.
Press-Fit Inserts: Feature a smooth or knurled outer surface. Forced into an undersized hole in softer materials (plastic, wood), relying on compression for retention. *Hole Prep: Hole diameter is typically 0.002" - 0.005" (0.05mm - 0.13mm) smaller than the insert's outer diameter (OD).*
Knurled Inserts: Similar to press-fit but have aggressive external knurling (diamond pattern or straight ridges) that bites into the host material upon installation (often combined with thermal methods in plastic). Common in plastics and wood. Hole Prep: Hole is slightly undersized (similar to press-fit) but relies heavily on knurl engagement.

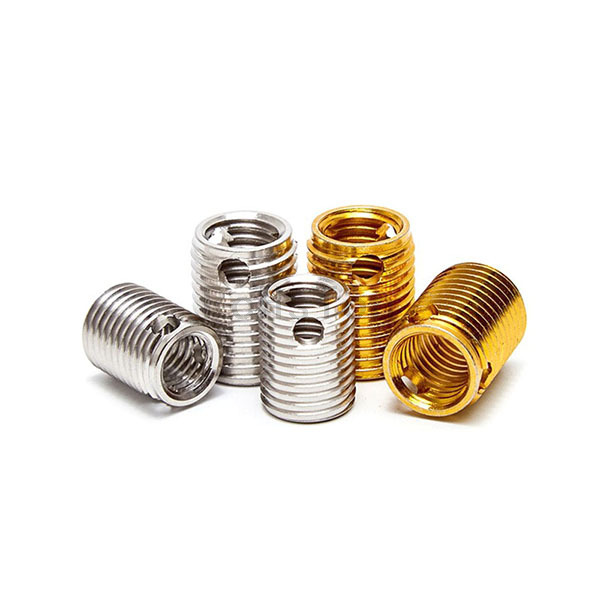

Self-Tapping Inserts: Have cutting threads on the OD. They are screwed into a pilot hole in plastics or soft metals, cutting their own mating threads. Hole Prep: Requires a specific pilot hole diameter, usually slightly smaller than the minor diameter of the insert's cutting threads.
Molded-In Inserts: Placed into an injection mold before plastic is injected. The molten plastic flows around the insert, locking it in place upon cooling. Hole Prep: N/A (Designed into the mold tooling).
Expansion Inserts: Used in materials like concrete or masonry. Expand when a bolt is tightened, gripping the hole walls. Hole Prep: Requires a drilled hole matching the insert's nominal size.
Materials: Brass, Carbon Steel, Stainless Steel (303, 304, 316), Aluminum, Thermoplastics (for molded-in).
Surface Finishes: Zinc Plating (common on steel), Passivation (for stainless steel), Nickel Plating, Black Oxide, Often left plain (especially brass/stainless).

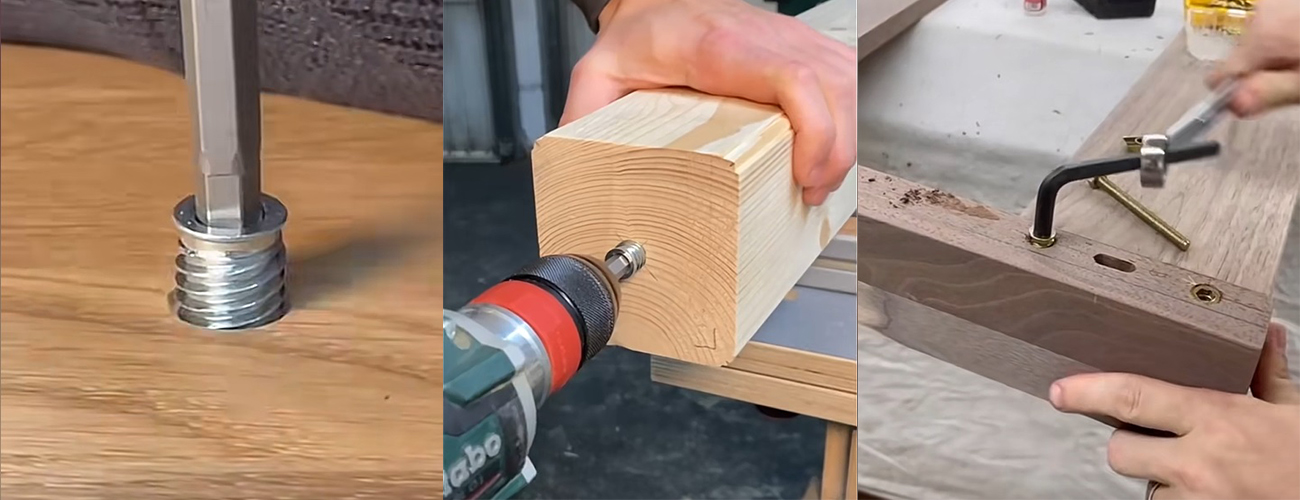

Woodworking: Adding machine screw threads to particle board, MDF, plywood (furniture assembly, cabinetry hardware).
Plastics: Creating durable threads in plastic housings, enclosures, consumer goods, automotive parts (knurled, press-fit, molded-in).
Metalworking: Repairing stripped threads in engines, machinery, aerospace components (helical coil inserts). Adding threads to thin sheet metal (self-tapping, press-fit). Providing wear-resistant threads in soft alloys like aluminum or magnesium.
3D Printing: Reinforcing threads in printed parts (press-fit, knurled, heat-set inserts).
General Manufacturing: Anywhere a strong, reusable thread is needed in a substrate that can't reliably provide it directly.
This is the core question! There is no single answer. The correct hole size depends entirely on:
The Insert Type: Each type has a specific installation method dictating hole prep.
The Insert's Outer Diameter (OD): This is the key dimension you measure.
The Host Material:
Soft Materials (Wood, Plastic): Require an undersized hole. The material compresses around the insert's OD or knurling for retention. Hole size is typically 90-98% of the insert's nominal OD.
Hard Materials (Metal): Helical coil inserts require a tapped hole of a specific size corresponding to their wire diameter and internal thread size. Self-tapping inserts require a specific pilot hole.
| Common Thread Size | Typical Insert OD | Recommended Hole Size (Wood/Soft Plastic - Approx.) | Common Drill Bit |
|---|---|---|---|
| M3 x 0.5 | ~4.0mm - 4.5mm | 3.8mm - 4.3mm | #19 (3.9mm) |
| 4-40 | ~0.156" | 0.149" - 0.152" | #25 (0.1495") |
| 6-32 | ~0.210" - 0.220" | 0.200" - 0.215" | #7 (0.201") |
| 8-32 / M4 x 0.7 | ~0.250" - 0.265" | 0.240" - 0.260" | #F (0.257") / 6.5mm (0.256") |
| 1/4"-20 / M6 x 1.0 | ~0.360" - 0.375" | 0.350" - 0.370" | #U (0.368") / 9.5mm (0.374") |
| 5/16"-18 / M8 x 1.25 | ~0.450" - 0.475" | 0.440" - 0.465" | 29/64" (0.453") / 11.5mm (0.453") |
Hole Diameter ≈ Insert OD minus 0.002" to 0.010" (0.05mm to 0.25mm).
A common rule-of-thumb is 90-95% of the insert's OD.
Example: For a knurled insert with an OD of 0.250" (1/4"), a typical hole size might be 0.245" - 0.248". A #F drill bit (0.257") is often specified for a true 1/4" OD insert in wood, relying on some compression and the knurls to bite.
Helical Coil Inserts (Metal Repair/Strength): Require a tapped hole. The tap drill size is specified by the insert manufacturer based on the insert's wire size and desired internal thread (e.g., "STI Tap" for a 1/4"-20 Helicoil requires a specific size drill, not the standard 1/4"-20 tap drill). DO NOT GUESS.
Self-Tapping Inserts (Plastic/Soft Metal): Require a specific pilot hole diameter, usually specified by the manufacturer, often slightly larger than the insert's minor diameter but smaller than its major cutting diameter.
Molded-In Inserts: The core pin in the mold that forms the hole is designed to the insert manufacturer's specifications, accounting for plastic shrinkage.
Know exactly which type and size you have.
THIS IS NON-NEGOTIABLE. Find the recommended hole size, depth, and installation method for your specific insert and your specific material. Do not rely solely on generic charts.
Use a sharp drill bit of the exact specified size.
Drill perpendicular to the surface.
Drill to the correct depth (slightly deeper than the insert length is usually safe, but check specs).
Clean out all debris from the hole.
Press-Fit: Use an arbor press, vise, or specialized installation tool. Apply force straight down. Excessive force can split material.
Thermal (Heat-Set) for Plastics: Heat the insert (soldering iron, heat gun) and press it into the hole. The plastic softens, flows around the knurls, and locks it in upon cooling. Fast and clean.
Ultrasonic: High-frequency vibrations melt the plastic locally around the insert, embedding it. Common in high-volume manufacturing.
Threaded (Helical Coil): Use the specific mandrel/tool provided to screw the insert into the pre-tapped hole until flush or slightly below.
Self-Tapping: Drive in with a screwdriver or hex key (depending on insert design) until flush.
Hole Too Small: Causes cracking/splitting of host material, excessive installation force, insert damage.
Hole Too Large: Results in poor retention, loose insert, stripped threads under load, insert spinning.
Hole Too Shallow: Prevents insert from seating fully, leaving internal threads obstructed.
Misaligned Hole: Causes insert to install crookedly, weakening hold and misaligning internal threads.
Debris in Hole: Prevents full seating and weakens grip.
Wrong Installation Tool/Method: Can damage the insert or host material.
Ignoring Material Differences: Hardwood vs. softwood, dense plastic vs. brittle plastic – adjust hole size slightly if manufacturer provides a range. Test in scrap material first!
Determining the perfect hole size for a threaded insert isn't guesswork; it's precise engineering. While undersizing is generally the rule for inserts in wood and plastic, the exact diameter is paramount and dictated by the insert manufacturer's specifications for your specific model and host material. Always, always refer to the manufacturer's technical data sheet. Taking the time to drill the correct hole ensures a strong, reliable, and durable threaded connection that performs as intended. Investing in the right drill bits and following the specs meticulously will save significant time, frustration, and potential component failure down the line.
