What Is The Difference Between Soldering And Surface Mount Technology ?

In the world of electronics manufacturing, "soldering" and "Surface Mount Technology (SMT)" are fundamental terms, often used together. However, they represent distinct concepts that are sometimes confused. Understanding the difference is key to grasping modern electronic assembly.

1. Soldering: The Fundamental Joining Process

• Definition: Soldering is a process of joining two or more metal items together by melting and flowing a filler metal (solder) into the joint. The solder has a lower melting point than the workpieces being joined.

• Core Principle: It creates a metallurgical bond, providing both electrical conductivity and mechanical strength.

• Methods: Soldering can be performed using various techniques:

• Hand Soldering: Using a soldering iron for repair, prototyping, or small-scale work.

•

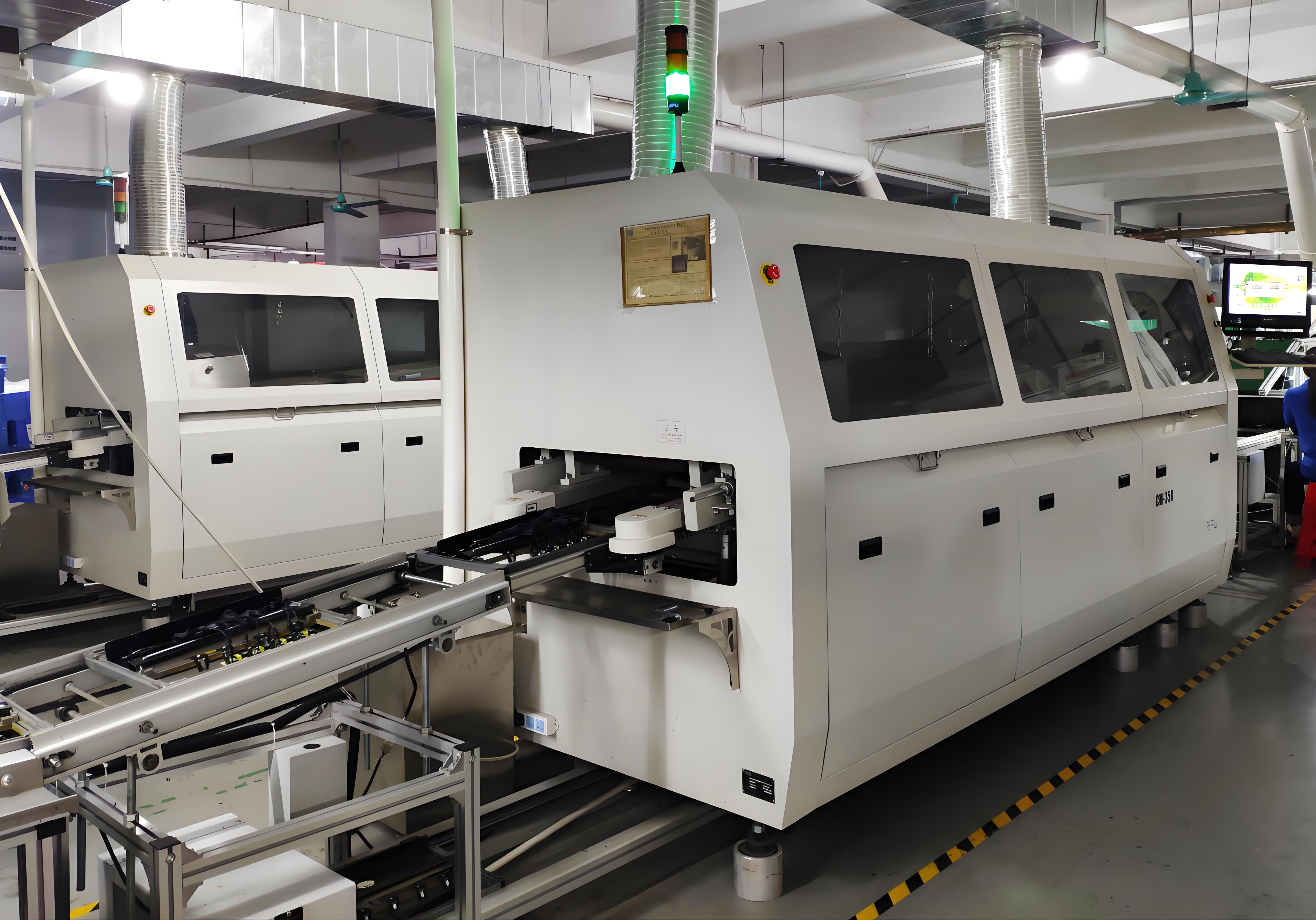

• Wave Soldering: Primarily used for Through-Hole Technology (THT), where a board passes over a wave of molten solder to solder component leads protruding through holes.

•

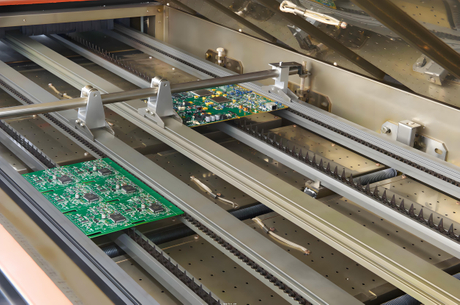

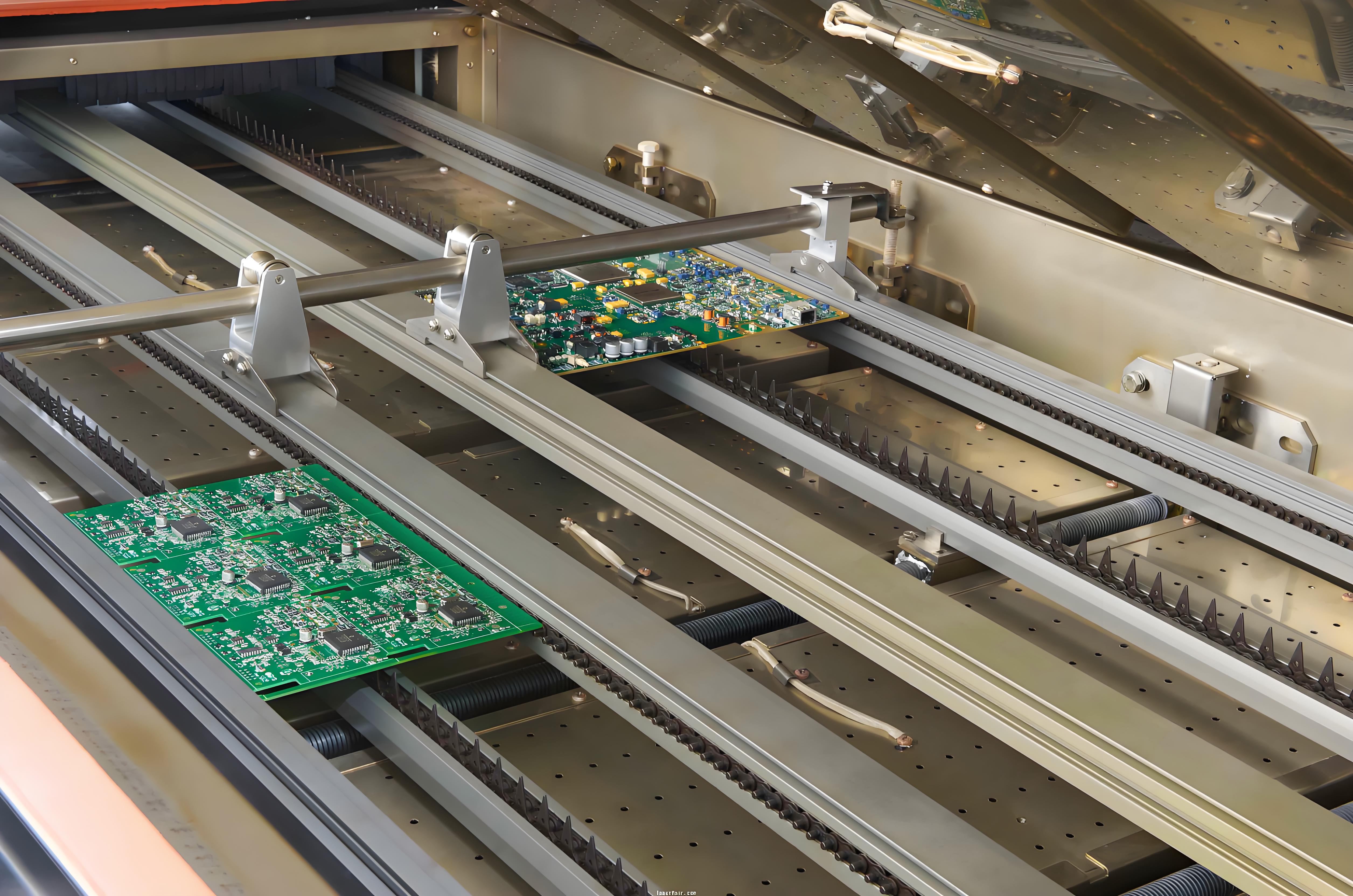

• Reflow Soldering: The primary method used in SMT. Solder paste (a mixture of solder powder and flux) is applied to pads, components are placed on top, and the entire assembly is heated in an oven. The heat melts the solder paste, forming the solder joints upon cooling.

•

• Scope: Soldering is the act of making the joint itself, regardless of the component type or board technology. It's used in both Through-Hole Technology (THT) and Surface Mount Technology (SMT).

2. Surface Mount Technology (SMT): A Component Mounting and Assembly Methodology

• Definition: SMT is an overall methodology and set of technologies for assembling electronic circuits where components (Surface Mount Devices - SMDs) are mounted directly onto the surface of a printed circuit board (PCB).

• Core Principle: Elimination of leads that need to pass through holes in the PCB. Components have small metal contacts (pads, terminations, balls) designed to sit on pre-defined pads on the board surface.

• Process Flow: SMT involves a specific sequence:

1. Solder Paste Application: Stencil printing solder paste onto PCB pads.

2. Component Placement: Precise machines (pick-and-place) position SMDs onto the solder paste.

3. Reflow Soldering: The board passes through a reflow oven, melting the solder paste to form permanent joints.

4. Inspection & Cleaning (Optional): Automated Optical Inspection (AOI), X-ray inspection, and potentially cleaning.

• Key Characteristics:

• Components are much smaller and lighter than equivalent Through-Hole (THT) parts.

• Allows for significantly higher component density and smaller PCB designs.

• Suited for high-volume, high-speed automated assembly.

• Generally better high-frequency performance due to shorter lead lengths.

• Requires specialized equipment (paste printer, pick-and-place machine, reflow oven).

The Crucial Distinction:

• Soldering is the process of making the electrical/mechanical joint. It's how the connection is physically formed. Soldering is used in both THT and SMT assemblies.

• Surface Mount Technology (SMT) is the method of attaching components to the surface of the PCB. It defines the type of components used (SMDs), the board design (no holes drilled for leads), and the specific assembly process sequence (paste, place, reflow). SMT relies on soldering (specifically reflow soldering) to make the joints.

Analogy:

Think of building a structure:

• Soldering is like the welding or riveting process used to join pieces together.

• Surface Mount Technology (SMT) is like the prefabricated building method, where specially designed components are precisely placed onto a foundation and then joined using the chosen fastening method (welding/riveting). The method dictates the type of components and how they are assembled before the joining occurs.

Comparison Summary:

In Conclusion:

You cannot have SMT assembly without soldering (specifically reflow soldering) to form the critical connections. However, soldering extends far beyond SMT; it's also essential for traditional through-hole assembly and countless other applications. SMT defines how components are designed and placed onto the board's surface, leveraging soldering as its core joining technique to enable the miniaturized, high-density electronics we rely on today. They are interdependent but fundamentally different concepts: SMT is the system, soldering (reflow) is a vital step within that system.
