In the manufacturing and assembly industries, fasteners like weld nuts and clinch nuts are crucial for creating strong and reliable threads in metal sheets and structures. While they serve a similar ultimate purpose, their installation methods, working principles, and ideal applications differ significantly. This article explores these differences to help you select the right fastener for your project.
A weld nut is a specialized type of nut designed to be permanently fused to a base material, typically another metal component, through a welding process. It often features projections or a pilot to concentrate the heat from welding, facilitating a strong bond. The primary function of a weld nut is to provide a robust, permanent threaded insert on a metal surface.
A clinch nut, also known as a self-clinching nut, is a fastener that installs permanently into a pre-drilled hole in a ductile metal sheet by applying a high squeezing force. This force causes the sheet metal to cold flow into a specially designed undercut and serrations on the nut, creating a secure, mechanically locked connection without the need for heat . The serrated clinching ring also prevents the fastener from rotating after installation .

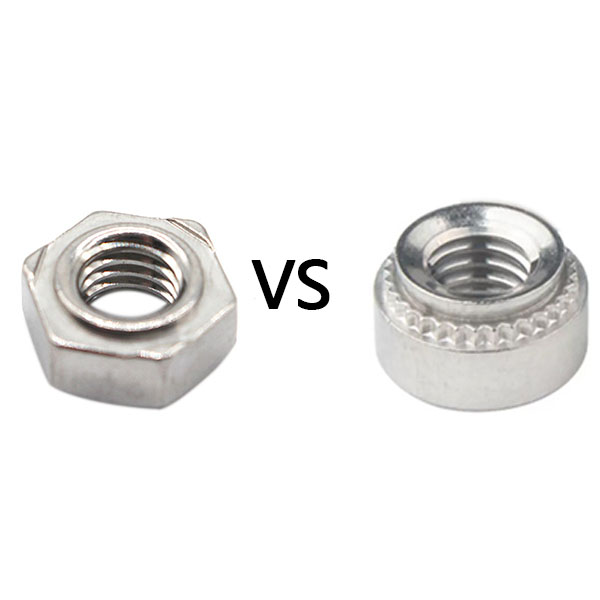

Understanding their physical design is key to distinguishing between these nuts.
Projection Welding Variants: Many weld nuts have small projections on their base surface. These projections melt first during welding, ensuring a concentrated and strong weld.
Pilot Style: Some weld nuts feature a pilot to guide placement and positioning onto a stud or in a hole before welding.
Post-Installation Appearance: After welding, the nut is fused to the base material, often with a visible weld ring or spatter around its base, which may require post-process cleaning.
Undercut: This is a critical feature. When force is applied, the surrounding sheet metal is made to cold flow into this undercut, creating a strong mechanical lock .
Serrated Clinching Ring: The nut has a ring of serrations on its mounting side. These serrations bite into the metal sheet during installation, providing high torque-out resistance and preventing rotation .
Low-Profile Head: Once installed, the clinch nut typically sits flush with the sheet surface, making it a low-profile and clean fastener.
The choice of material and finish affects the nut's performance and corrosion resistance.
Weld Nuts: These are typically made from weldable materials like low-carbon steel or stainless steel. The nut material must be compatible with the base material to form a strong weld joint.
Clinch Nuts: They are commonly made from stainless steel, carbon steel, or aluminum alloys like 6082-T6 . The key requirement is that the host sheet material must be ductile enough (e.g., aluminum, mild steel) to undergo cold flow during installation .
Weld Nuts: Any plating or coating (like zinc or cadmium) is usually applied after the welding process. The intense heat of welding would otherwise damage or destroy a pre-applied finish.
Clinch Nuts: These nuts can be pre-treated with various finishes, such as zinc plating or anodizing (for aluminum nuts), before installation . Since installation involves no heat, the finish remains intact. The CLA series of clinch nuts, for example, are specifically compatible with aluminum anodizing .
The installation process is the most significant difference between these two fasteners.

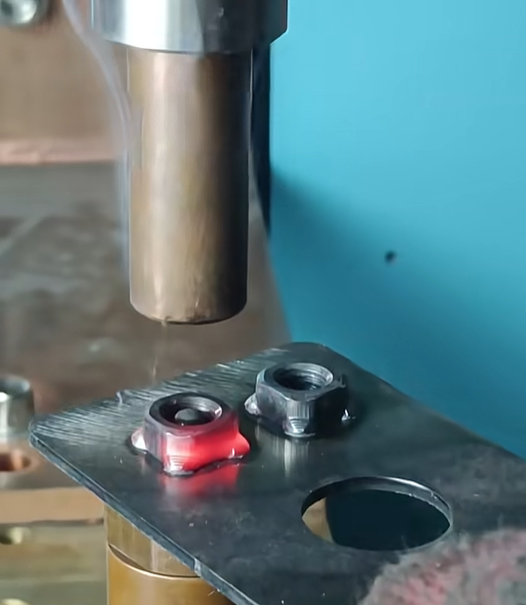

Weld Nut Installation:
Method: It requires a fusion welding process, such as arc welding . The nut is positioned, and an electric current is passed through the contact point, melting the projections and fusing the nut to the base metal.
Tools: This process requires specialized welding equipment , a power source, and protective gear . It demands skilled labor and poses risks associated with high heat, such as warping the base material or creating a heat-affected zone (HAZ) that can weaken the material .
Permanence: The joint is permanent and metallurgical.
Clinch Nut Installation:
Method: Installation is a cold-forming process. The nut is placed into a properly sized hole in the sheet, and a parallel squeezing force is applied to the head, causing the sheet metal to cold flow into the nut's undercut and serrations .
Tools: Installation typically uses a press or a specialized pneumatic/hydraulic clamping tool. Robotic systems can also be easily programmed for this task, making it highly suitable for automation .
Advantages: The process is fast, requires no consumables like gas or wires, and produces no heat, thus avoiding thermal distortion and preserving the base material's properties and any pre-applied coatings .
While both nuts come in various metric and imperial thread sizes (e.g., M85049-96-22-A is a specific perimeter nut with a clinch nut specification ), the key is their performance rating.
Weld Nuts: Their strength is tied to the weld integrity and the base material. They can achieve high strength grades comparable to the nuts themselves.
Clinch Nuts: Their performance is defined by push-out strength (resistance to being pushed out of the sheet) and torque-out strength (resistance to rotational force) . They are rated for use in sheets of specific hardness; for example, the CLS/CLSS series are for sheets with a hardness of HRB 70 or less .
Choosing the right nut depends heavily on the application's requirements.

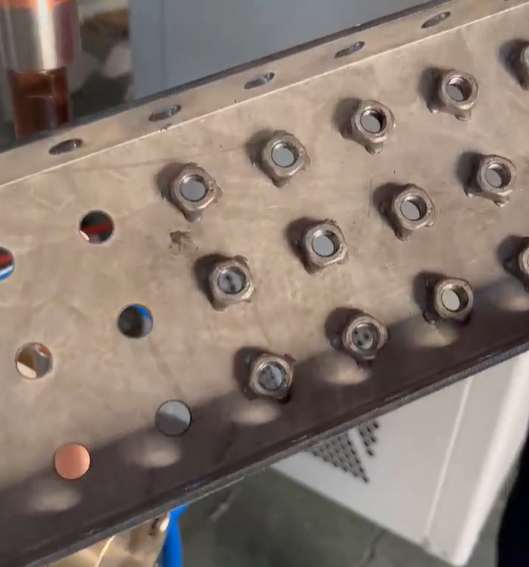

Weld Nuts are typically used in:
High-strength, permanent structures where disassembly is not intended.
Applications involving thicker materials.
Heavy machinery and structural steelwork.
Clinch Nuts are ideal for:
Thin sheets where welding might cause warping or burn-through.
Applications requiring high-volume, automated assembly, such as in automotive body panels (e.g., hood inner panels) or electronics enclosures.
Materials with coatings or finishes that must not be damaged by heat .
Environments sensitive to heat or sparks.
Assemblies where a clean, flush finish on the back side is required.
In summary, the choice between a weld nut and a clinch nut boils down to your specific needs. If you require an extremely strong, permanent bond on a thicker component and have access to welding capabilities, a weld nut is a robust choice. However, if you are working with thin sheets, need to preserve a surface finish, prioritize fast installation speed, or wish to avoid the complications of heat, a clinch nut offers a superior and highly reliable solution.
