Weld nuts are specialized fasteners designed to be permanently attached to a metal workpiece, providing a strong, reusable threaded hole. They are a fundamental component in manufacturing and fabrication, enabling the secure assembly of parts in industries ranging from automotive to furniture. This article explores the nature of weld nuts, their characteristics, and the detailed process of how they are welded.
A weld nut is a nut that has a special configuration, often with a protruding pilot or alignment features, and is welded to a base metal to create a durable threaded attachment point. Unlike a standard nut, it becomes an integral part of the workpiece, eliminating the need for a wrench on the nut side during assembly and allowing for blind fastening.
The design of a weld nut is optimized for the welding process and strength. Key features include:
Pilot or Alignment Boss: A cylindrical projection that centers the nut in a pre-punched hole, ensuring precise positioning before welding.
Welding Projections (Nubs): Most weld nuts have small, raised projections on the base (the welding face). These projections concentrate the welding current and heat, ensuring a consistent and strong weld with minimal energy.
Flange: A flat surface surrounding the pilot that provides a larger area for welding, enhancing strength and stability.
Internal Threads: The core functional feature, which is protected from weld spatter during the process.
There are several common types, each suited for specific applications:

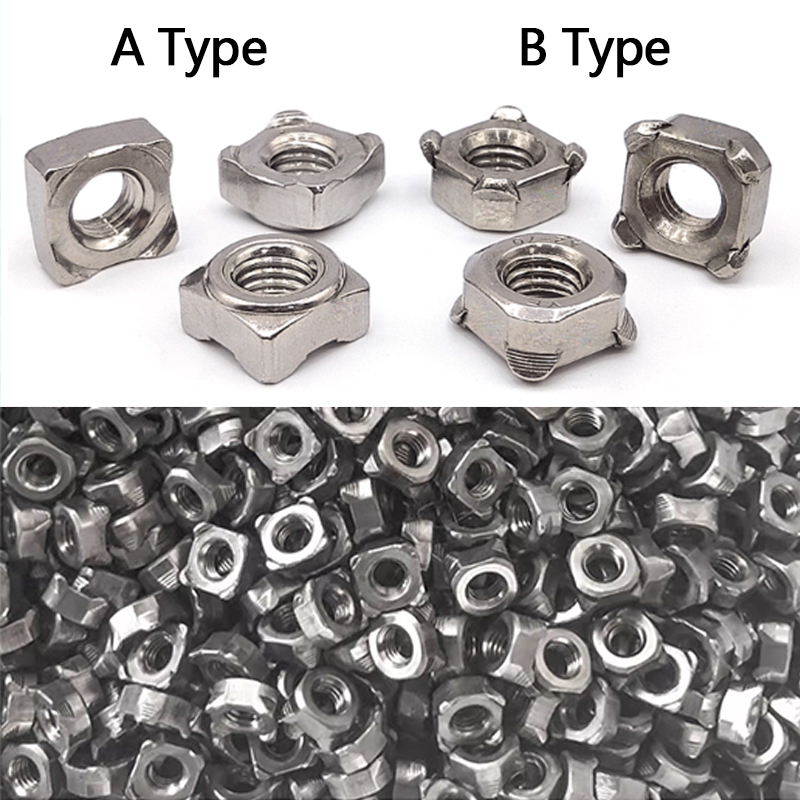

Projection Weld Nuts: The most common type, featuring welding projections. They are typically welded to sheet metal.

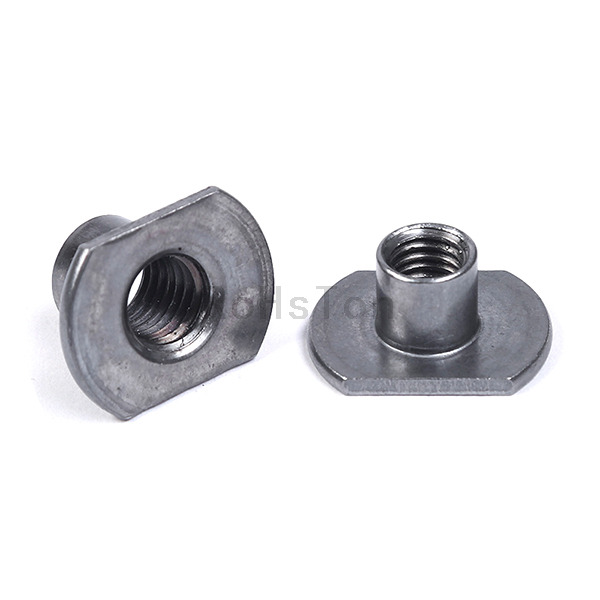

Pilot Projection Weld Nuts: Include both a pilot for alignment and welding projections for a secure weld. This is the standard design for most applications.
Tab Weld Nuts: These have one or two tabs with holes for plug welding (arc welding through the hole) instead of projections. They are versatile and used where projection welding is not feasible.
Counterbore Weld Nuts: Designed to sit flush with the surface of the workpiece, providing a smooth finish.
Material: Weld nuts are most commonly made from low-carbon steel (e.g., Grade 1008 or 1010) for its excellent weldability. Stainless steel (e.g., 304 or 316) is used for corrosion resistance, and alloy steels are used for high-strength applications.
Surface Treatment: To prevent corrosion and sometimes to improve weld performance, weld nuts can be coated with:
Zinc Plating: The most common coating, offering good corrosion resistance.
Phosphate Coating: Often used before painting and provides a good base for holding oil.
Geomet®: A zinc-flake coating that provides excellent corrosion resistance without significantly interfering with the welding process.
Weld nuts are available in a wide range of sizes, mirroring standard nut dimensions. Common thread sizes include M4, M5, M6, M8, M10 (metric) and #10-32, 1/4"-20, 5/16"-18, 3/8"-16 (imperial). The flange size and pilot diameter are correspondingly designed for each thread size.
The primary method for attaching weld nuts is Resistance Projection Welding (RPW), a type of spot welding. The process involves several distinct stages:
Alignment and Clamping: The weld nut is placed onto the workpiece, with its pilot inserted into a pre-punched hole. Two copper alloy electrodes then clamp the assembly together with significant force.
The upper electrode contacts the nut's threads.
The lower electrode supports the workpiece.

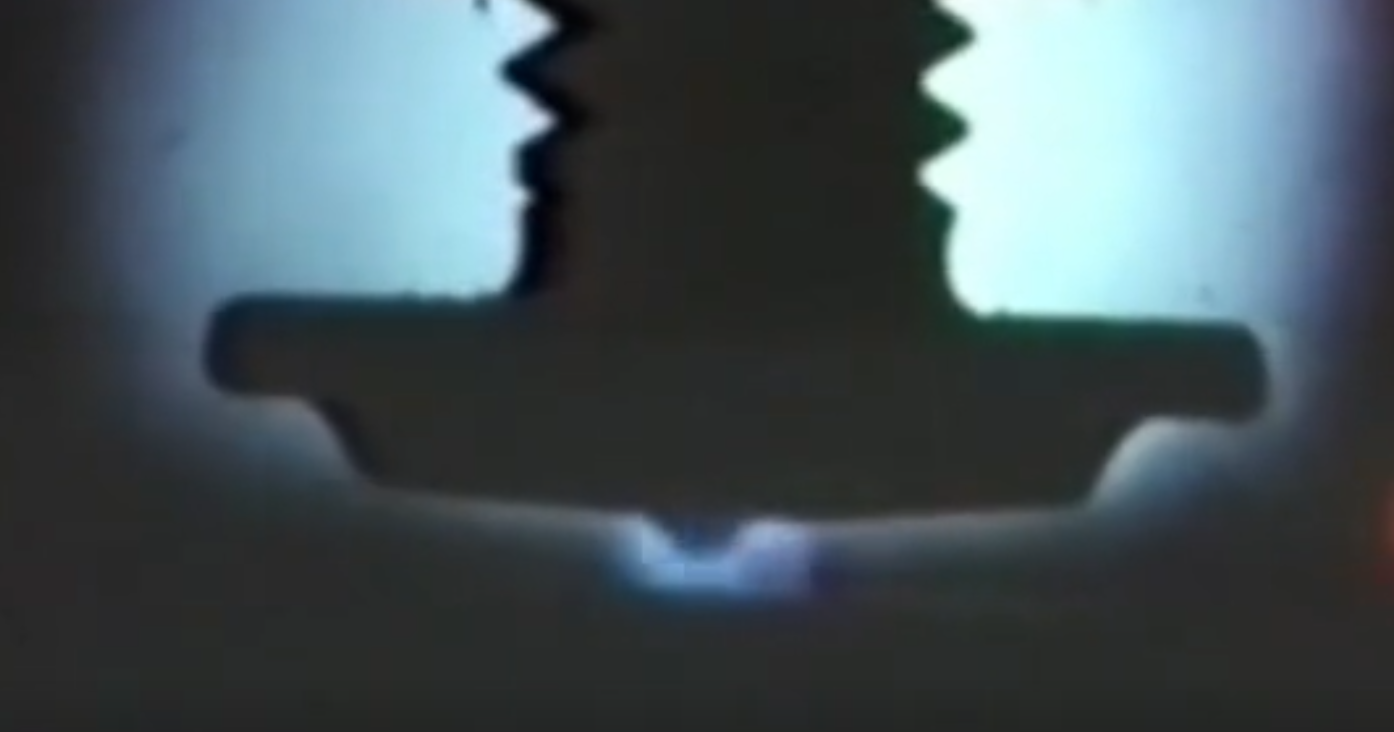

Application of Current: A very high electrical current (thousands of Amps) is passed through the electrodes for a very short time (typically 0.1 to 0.5 seconds). The current is forced to concentrate at the small welding projections, due to their high electrical resistance.

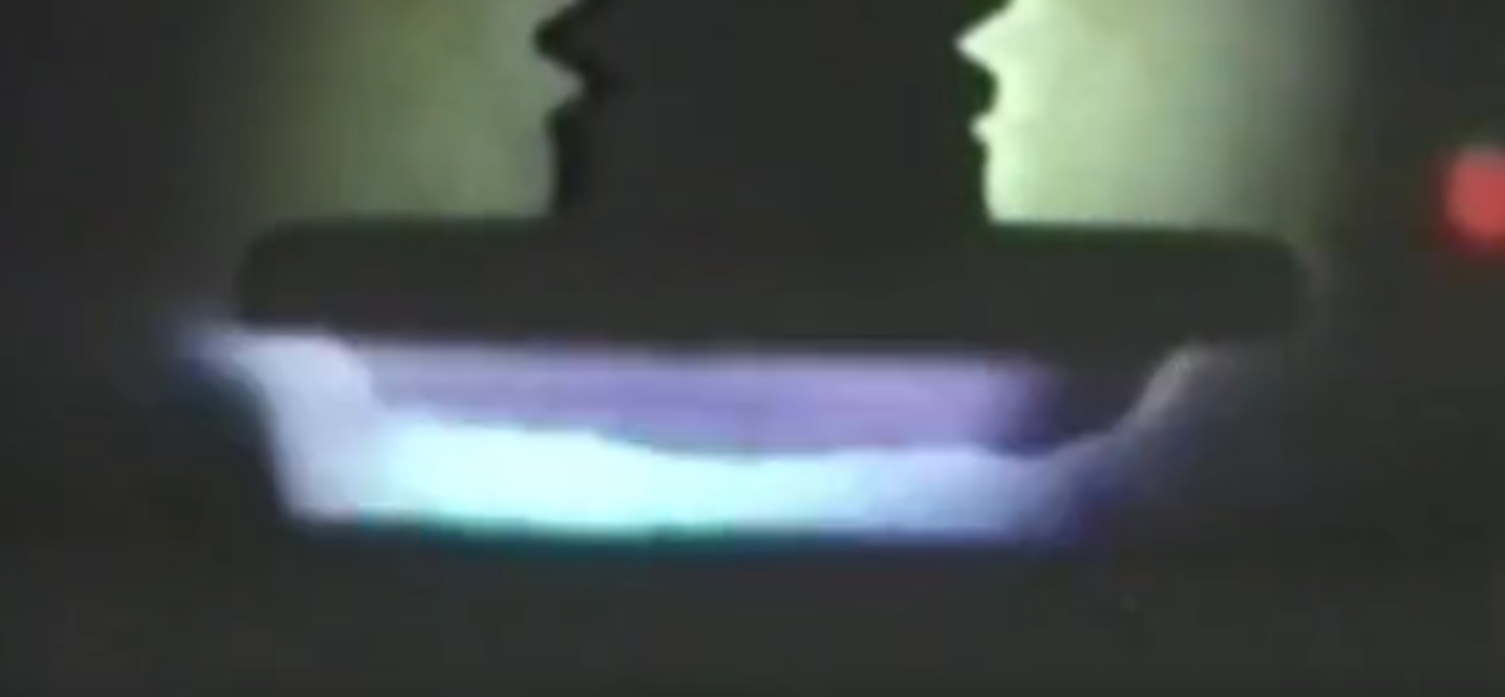

Heat Generation and Melting: The concentrated current causes intense, localized heat at the projections. This heat rapidly raises the temperature of both the nut projections and the adjacent workpiece material, causing them to melt and form a small pool of molten metal, or a "nugget."

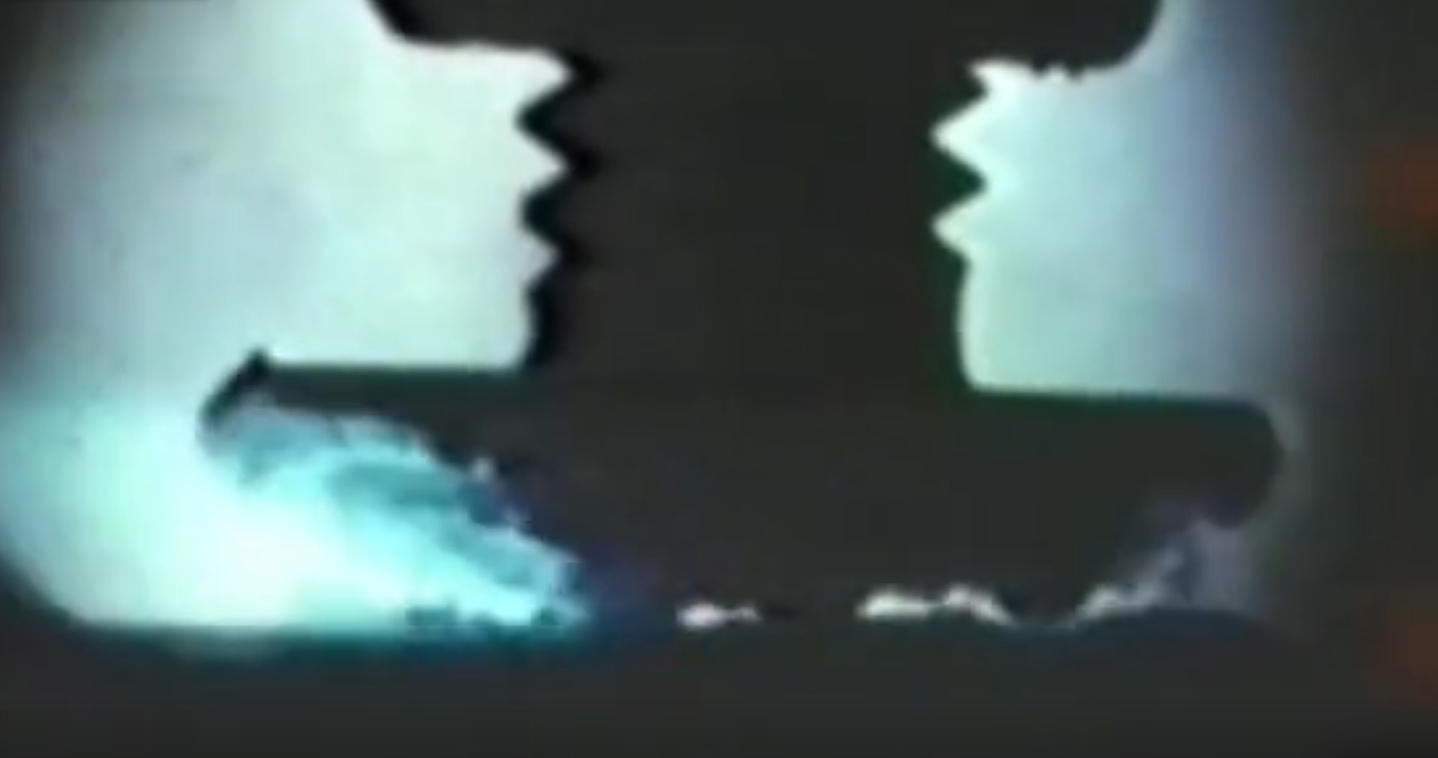

Forging and Solidification: While the metal is still in a plasticized state, the continued clamping force forges the parts together. The projections collapse completely, and the molten nugget solidifies under pressure, creating a metallurgical bond between the nut and the workpiece.
Hold Time and Release: The current is turned off, but the clamping force is maintained for a brief moment. This "hold time" allows the weld nugget to cool and solidify completely without cracking. The electrodes then retract, leaving a firmly welded nut.

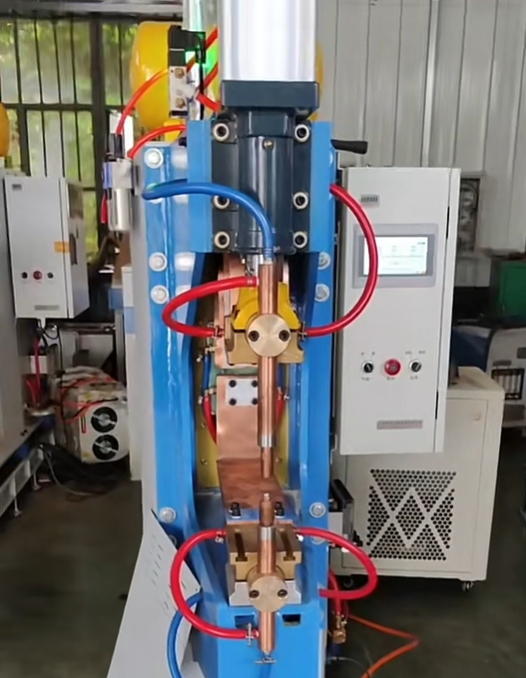

The primary tool for high-volume production is a Resistance Projection Welder, which can be a dedicated machine or a specialized cell in an automated assembly line. For lower-volume repair or prototyping, Arc Welders (MIG or TIG) can be used with tab weld nuts or by manually adding weld material around the base of a standard weld nut.
Weld nuts are ubiquitous in any industry where strong, reliable threaded points are needed on metal sheets or structures.

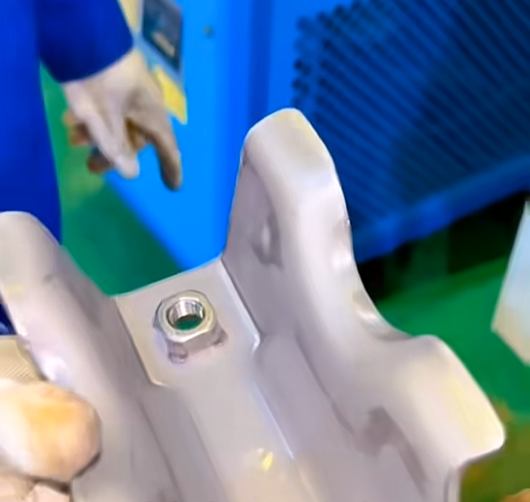

Automotive Industry: Used extensively in car bodies, chassis, and frames to attach brackets, trim, electrical components, and interior panels.
Appliances: Found inside washing machines, refrigerators, and ovens to secure panels, control units, and insulation.
Furniture: Used in metal office furniture, shelving, and frames to allow for easy assembly and disassembly.
Electronics Enclosures: Provide strong threaded points in sheet metal server racks and control boxes.
Construction and HVAC: Used in structural steelwork and ducting for attaching access panels and other components.
In conclusion, the welding of weld nuts is a highly efficient and robust process centered on resistance projection welding. Their specialized design ensures precise location, strong metallurgical bonds, and reliable performance, making them an indispensable fastener in modern manufacturing.
