What Is A Roll Or Slotted Spring Pin? A Guide To Elastic Pins

Views: 1000     Author: Site Editor     Publish Time: 2025-07-30      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Elastic cylindrical pins, often referred to by the genericized trademark "Roll Pin" (specifically for coiled types) or descriptively as slotted spring pins or spring dowel pins, are a unique and versatile category of fastener. Unlike solid dowel pins, they derive their holding power not from an interference fit alone, but from their inherent radial spring force. This force is generated when the pin is compressed during installation into a hole slightly smaller than its nominal diameter.

The Core Principle: Made from spring-tempered material, these pins have a built-in gap (slot or spiral seam). When driven into the properly sized hole, the pin compresses radially, exerting continuous outward pressure against the hole walls. This creates significant frictional resistance to movement and loosening, even under vibration or dynamic loads. They accommodate minor hole size variations and wear over time better than solid pins.

Classification and Types:

Elastic pins are primarily categorized into three main types, each further subdivided into Light Duty (Standard) and Heavy Duty versions:

  1. Slotted Spring Pin (DIN 1481 / ISO 8752):

    • Appearance/Structure: A straight, cylindrical tube with a single longitudinal slot running its entire length.

    • Light Duty: Thinner wall thickness. Used for general-purpose applications with moderate loads. Standard material is carbon steel.

    • Heavy Duty: Thicker wall thickness and consequently higher radial spring force. Used for higher shear loads, more severe vibrations, and applications requiring greater resistance to pin deformation. Often made from alloy steel for increased strength.

    • Key Feature: The slot allows significant compression. Easy to identify visually by the straight slot.

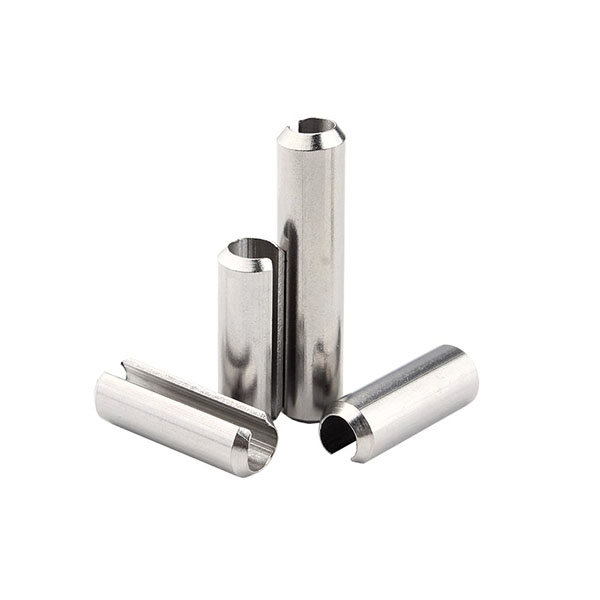

    • Stainless Steel Slotted Spring Pin

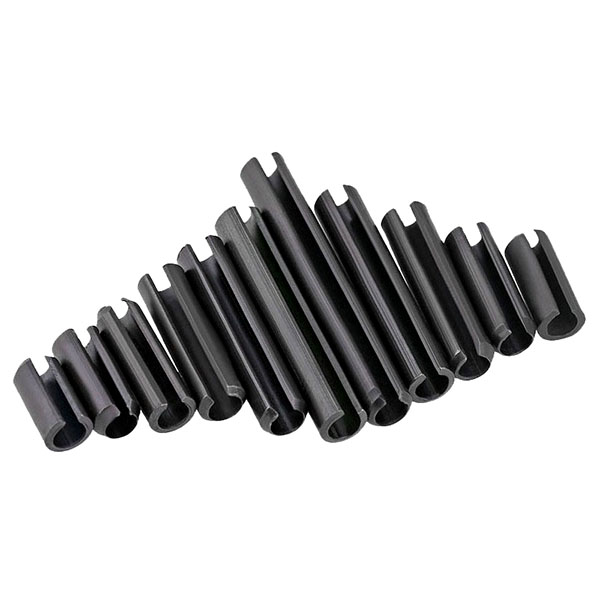

    • Carbon Steel Slotted Spring Pin

  2. Coiled (Roll) Spring Pin (DIN 7343 / ISO 8748):

    • Appearance/Structure: Formed by tightly coiling a strip of spring steel into 2.25 or more overlapping layers, creating a spiral seam along its length. Has a chamfer on both ends.

    • Light Duty: Fewer coil layers (typically 2.25), lower radial force. General-purpose use.

    • Heavy Duty: More coil layers (typically 3.5+), significantly higher radial spring force and shear strength. Designed for the most demanding applications with high vibration or shock loads.

    • Key Feature: The spiral seam and coiled structure distribute stress more evenly and offer superior fatigue resistance and resilience compared to slotted pins. The term "Roll Pin" is often used specifically for this type.

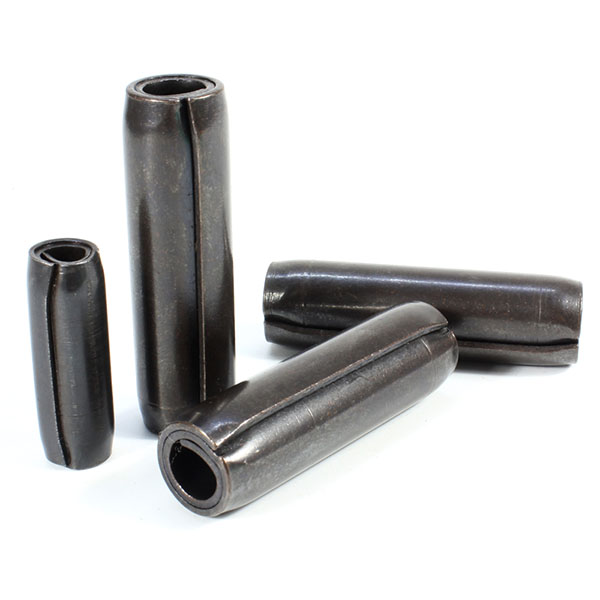

    • Carbon Steel Roll Spring Pin

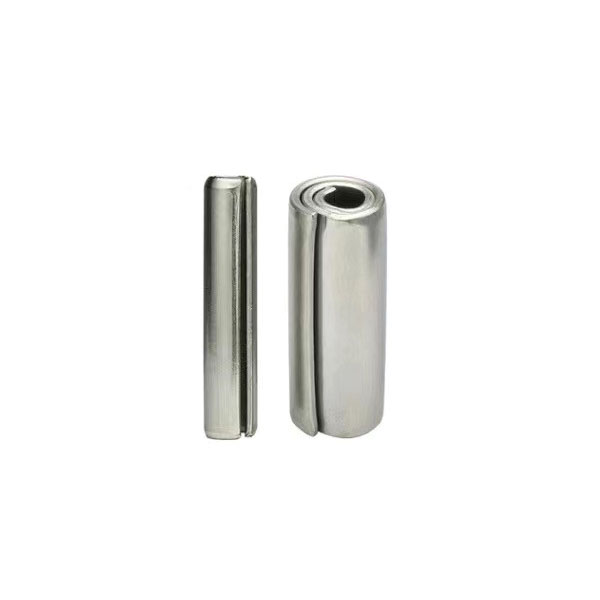

    • Stainless Steel Roll Spring Pin

  3. Serrated (Slotted Grooved) Spring Pin (Similar to DIN 1481 but with grooves):

    • Appearance/Structure: Similar in basic form to the slotted spring pin (cylindrical tube with a longitudinal slot) but features transverse grooves or serrations pressed into its outer surface along its length.

    • Light Duty: Standard serrated pins.

    • Heavy Duty: Serrated pins made with thicker walls/higher force materials.

    • Key Feature: The serrations act like tiny barbs, significantly increasing resistance to axial movement (pull-out force) compared to smooth slotted or coiled pins. Ideal for applications where resisting axial loads is critical.

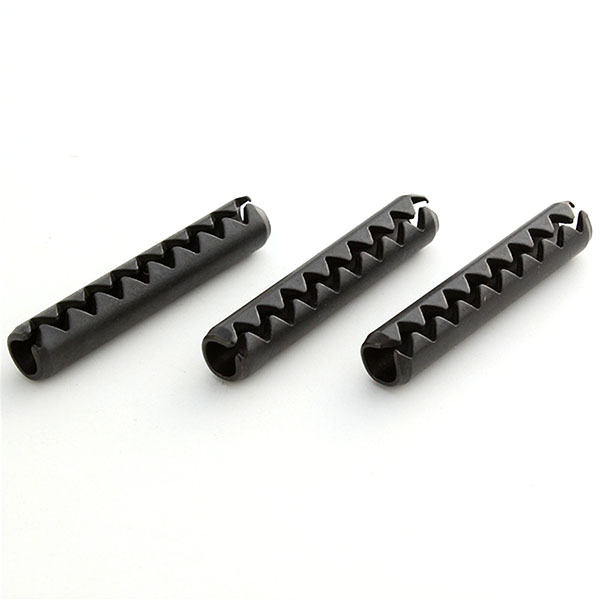

    • Carbon Steel Serrated Spring Pin

    • Stainless Steel Serrated Spring Pin

Materials:

  • Carbon Steel: The most common material, spring-tempered for elasticity and strength (e.g., SAE 1070, 1074, 1095). Cost-effective and suitable for most environments.

  • Alloy Steel: Used for Heavy Duty pins requiring higher shear strength and fatigue resistance (e.g., SAE 6150, 9254).

  • Stainless Steel: (e.g., AISI 302, 304, 316). Essential for applications requiring corrosion resistance or non-magnetic properties. Offers good spring properties but typically lower shear strength than equivalent carbon steel pins.

  • Brass: Occasionally used for specific electrical conductivity or non-sparking requirements. Lower strength than steel pins.

Surface Treatments:

  • Zinc Plating: (Clear, Yellow, or Black chromate). The most common finish for carbon steel pins, providing good general corrosion resistance at low cost. Black oxide is also common.

  • Phosphate Coating (Parkerizing): Often used as a base layer for oil retention or paint adhesion, offering some corrosion resistance.

  • Cadmium Plating: Historically common for excellent corrosion resistance and lubricity, but environmental concerns have drastically reduced its use (RoHS non-compliant).

  • Dry Film Lubricants: Sometimes applied over plating to ease installation.

  • Passivation: Used for stainless steel pins to enhance their natural corrosion resistance by removing free iron from the surface.

  • Unfinished: Stainless steel pins are often used without additional plating.

Installation Methods:

  1. Hole Preparation:

    Critical. The hole must be a clean, straight, drilled hole (reamed for precision applications) with a size specified in the relevant standard (DIN, ISO) for the pin type and size. Hole size is smaller than the pin's nominal diameter.

  2. Chamfer:

    A slight chamfer (typically 15-30 degrees) at the hole entrance is essential to prevent pin edge damage during insertion.

  3. Tools:

    • Hammer: A standard ball-peen hammer can be used, striking the pin squarely on its end. Use cautiously to avoid damaging the pin or workpiece.

    • Punch: Often used with a hammer, especially for starting the pin or driving it flush. The punch tip should be slightly concave or flat to fit the pin end.

    • Arbor Press/Hydraulic Press: The preferred method for controlled, straight installation, minimizing damage risk. Use a flat or slightly concave pusher.

    • Automatic Feeders: Used in high-volume production.

  4. Key Point:

    The pin must be driven straight into the hole until its ends are flush with or slightly below the surfaces of the joined parts. Never drive a pin only partway in if it needs to be flush later; install it fully in one action.

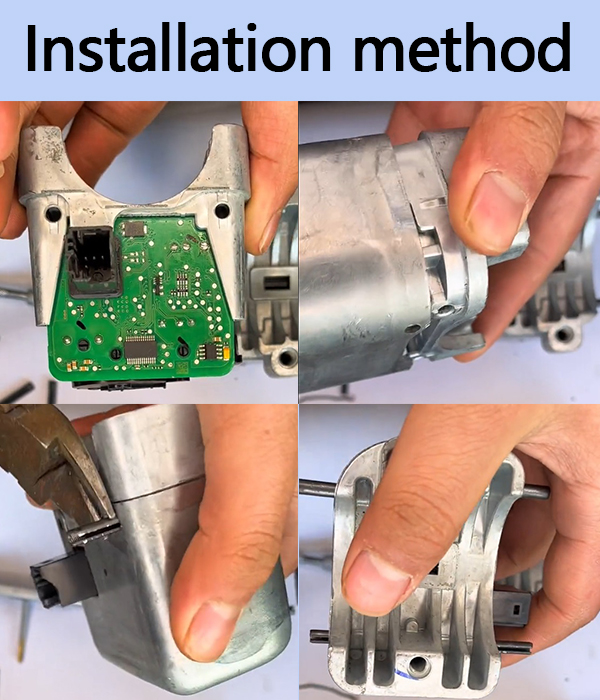

  5. Spring Pin Installation Method

Selection Criteria:

Choosing the right elastic pin involves considering:

  1. Load Type & Magnitude:

    • Shear Loads: The primary strength of spring pins. Select type (Slotted/Coiled/Serrated) and duty (Light/Heavy) based on required shear strength. Coiled Heavy Duty offers the highest shear strength.

    • Axial Loads (Pull-out): Serrated pins offer vastly superior resistance. Coiled pins offer moderate resistance, slotted pins the least.

    • Vibration/Shock: Coiled pins generally offer the best fatigue resistance and resilience. Heavy Duty versions of any type are better than Light Duty.

  2. Hole Size & Material:

    Must match pin specifications. Harder materials require precise holes. Consider hole depth relative to pin length.

  3. Environment:

    Corrosive environments dictate stainless steel or adequately plated carbon steel. Temperature extremes affect material choice.

  4. Required Precision:

    Coiled pins often provide more consistent force and are less prone to bulging than slotted pins. Reamed holes improve precision.

  5. Installation Access:

    Ensure suitable tools can access the hole.

  6. Cost:

    Slotted pins are generally the most economical, followed by coiled, then serrated. Heavy Duty costs more than Light Duty. Stainless costs more than carbon steel.

  7. Removability:

    While designed to be semi-permanent, pins can usually be driven out with a punch and hammer. Serrated pins are the hardest to remove without damage.

Common Application Scenarios:

Elastic pins are ubiquitous in machinery due to their vibration resistance and ease of installation. Examples include:

  • Linkages & Levers: Securing pivot pins in control linkages, gear shifters, brake pedals.

  • Gears & Sprockets: Retaining gears, sprockets, pulleys, and collars onto shafts (often combined with keyways). Shear load primary.

  • Shafts & Axles: Aligning and securing components on shafts, locating bearings in housings.

  • Engine & Transmission: Connecting rods (small end bushings), valve train components, transmission shift forks, clutch assemblies. High vibration/shock.

  • Agricultural & Construction Equipment: Securing pins in hitches, bucket linkages, track assemblies. Harsh environments, high loads.

  • Automotive: Door hinges, seat mechanisms, suspension components, steering column joints.

  • Aerospace: Non-critical hinges, panels, and internal mechanisms (using specific high-grade materials and standards).

  • Electronics: Securing components in chassis or heat sinks (often smaller stainless pins).

  • Jigs & Fixtures: Precisely locating parts during manufacturing or assembly. Coiled pins preferred for precision.

  • Replacing Cotter Pins: In clevis pins or castellated nuts where vibration resistance is needed (Serrated pins excel here for axial retention).

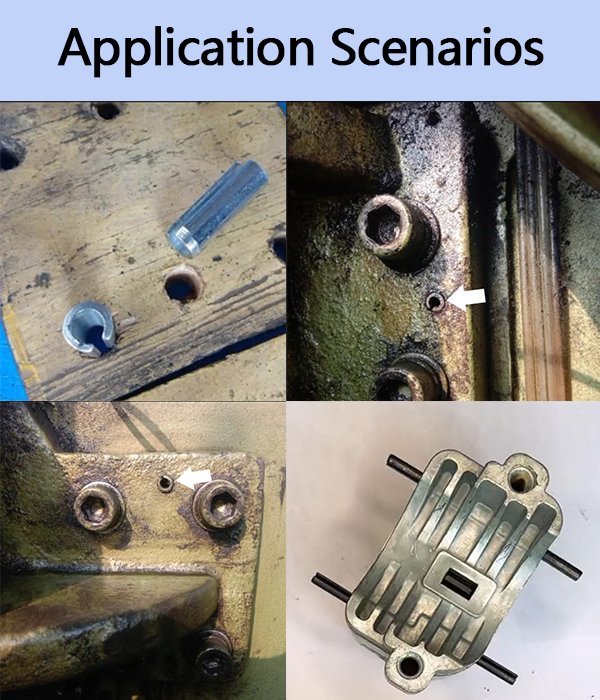

  • Spring Pin Application

Conclusion:

Slotted, coiled, and serrated elastic spring pins are ingenious, reliable fastening solutions where vibration resistance, accommodation of tolerance variations, and ease of installation are paramount. Understanding the differences between the types (Slotted, Coiled, Serrated) and duty ratings (Light, Heavy), along with their materials, finishes, and proper installation techniques, is key to selecting the optimal pin for any given mechanical application. Their versatility ensures they remain a fundamental component in engineering design across countless industries.
