A weld stud, often referred to as a welding stud or stud weld pin, is a specialized fastener designed to be welded directly onto a metal substrate or base material. Its primary purpose is to provide a strong, reliable, and often flush-mounted threaded or unthreaded attachment point without the need for drilling holes from the opposite side. This makes weld studs an efficient and crucial component in countless manufacturing, construction, and fabrication industries.
In essence, a weld stud is a metal rod with one end prepared for welding. The welding end typically has a feature—such as a small tip, a flange, or a specific contour—that concentrates the heat from the welding process, facilitating a clean and strong bond. The other end of the stud is designed for its function, which could be:
Threaded: To accept a nut for securing panels, components, or other structures.
Unthreaded: Used for hanging items, guiding parts, or providing a grounding point.
You might encounter weld studs under various names, all describing the same fundamental product:
Welding Stud
Stud Weld Pin
Weld Pin
Stud Weld Fastener

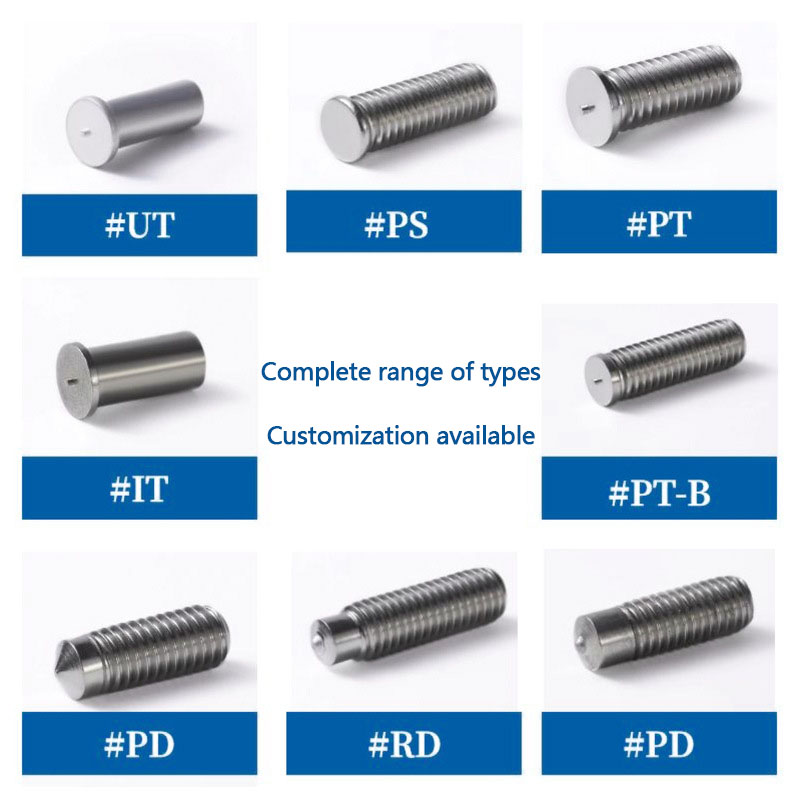

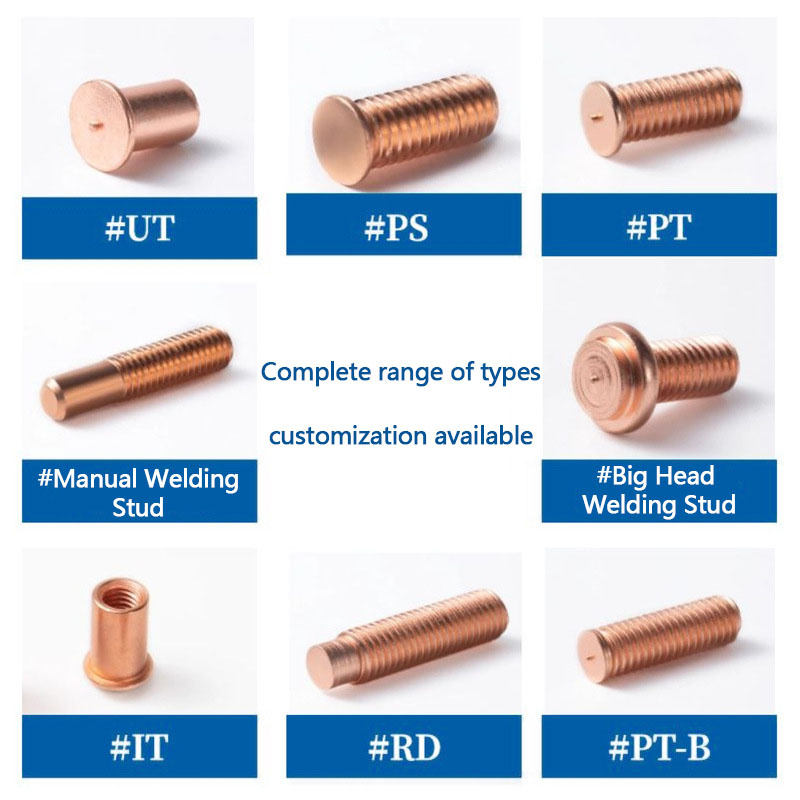

Weld studs are primarily categorized by their welding method and their functional end:

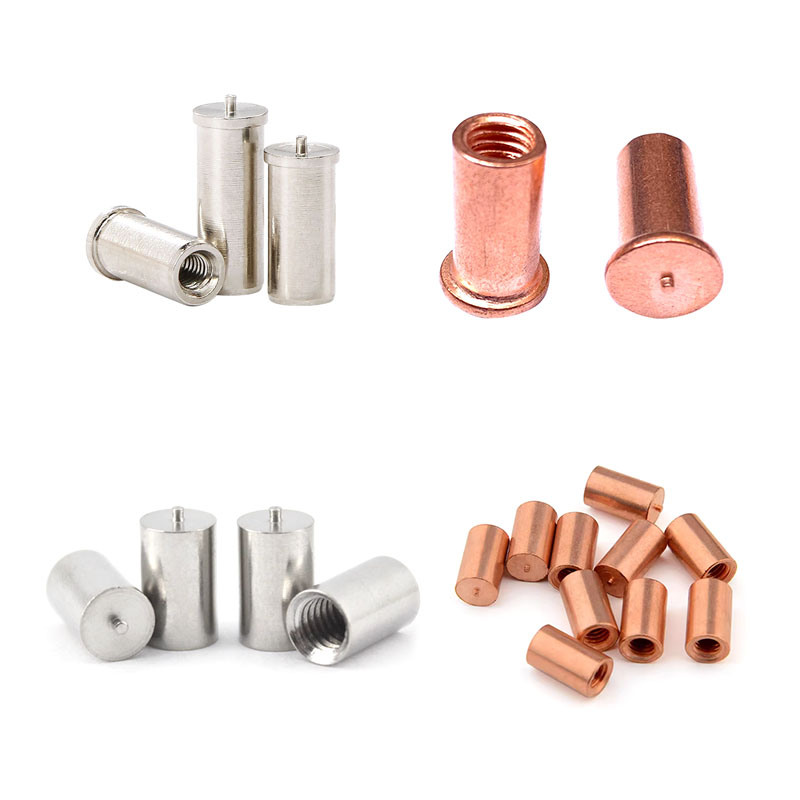

Capacitor Discharge (CD) Studs: These are designed for very fast welding (1-3 milliseconds) using a high electrical current. They have a small, pointed tip that vaporizes to create the arc. CD welding is ideal for thinner materials (as thin as 0.5mm) and creates minimal distortion or marking on the reverse side.
Threaded CD Studs: The most common type, with a thread on the non-welding end.
Unthreaded CD Studs: Often used as pins or stops.
Drawn Arc Studs: This process is used for larger diameter studs. It involves a ceramic ferrule placed over the stud. An initial arc is drawn, and then the stud is plunged into the molten metal pool. The ferrule contains the molten metal and shapes the weld fillet. This method produces extremely strong welds suitable for heavy-duty applications and thicker base materials.

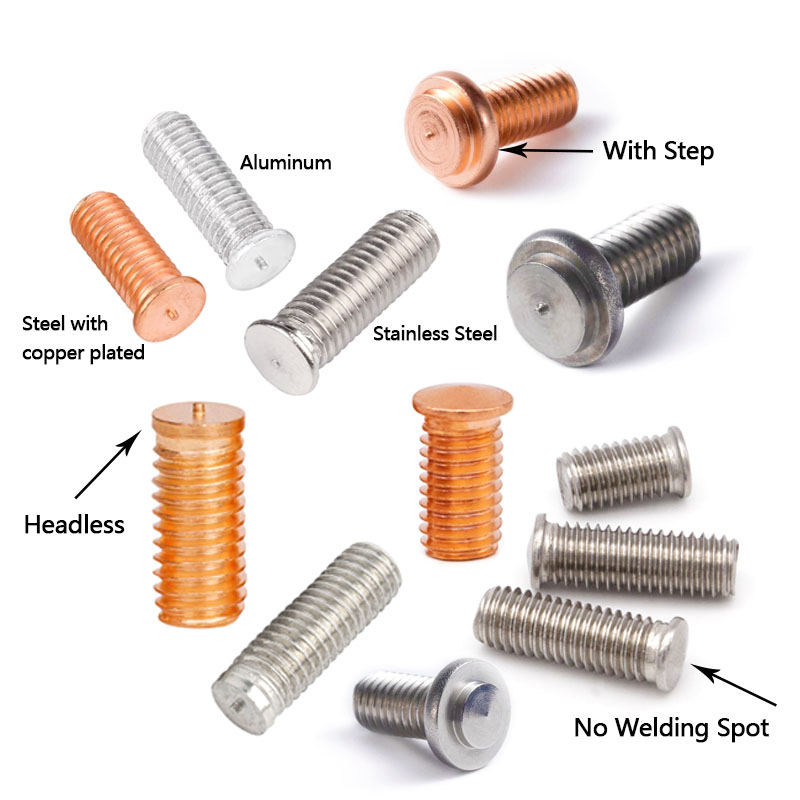

The material of the weld stud must be compatible with the base metal to ensure a strong weld. Common materials include:
Mild Steel / Low Carbon Steel: The most widely used and cost-effective option.
Stainless Steel (e.g., 304, 316): Used for corrosion resistance in harsh environments (food processing, marine, chemical).
Aluminum: Used for lightweight structures and when welding to aluminum base plates.
Brass: Used for specific decorative or electrical conductivity applications.
A surface finish is often applied to weld studs for corrosion protection or aesthetic reasons. Common finishes include:
Zinc Plating (Electroplated or Mechanical Galvanizing): A standard, economical corrosion-resistant finish.
Hot-Dip Galvanizing: Provides a thick, durable zinc coating for severe environments.
Passivation: A chemical treatment for stainless steel to enhance its natural oxide layer.
Paint: Studs can be painted to match the surrounding structure.
Weld studs are available in a vast range of sizes, specified by diameter and length (grip length). Common metric thread sizes range from as small as M3 to M16 and larger. Imperial sizes like #8-32, 1/4"-20, and 3/8"-16 are also standard. Lengths can vary from a few millimeters to over 300mm, depending on the application.
Installation requires a specialized tool called a stud welder. The process varies by type:

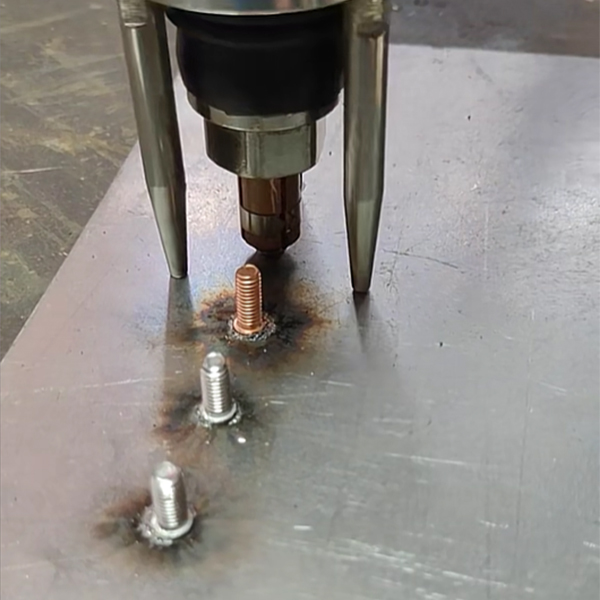

Capacitor Discharge Welding:
The stud is loaded into the welding gun.
The gun is placed against the workpiece.
The trigger is pulled, discharging stored energy from capacitors. The tip vaporizes, creating an arc that instantly melts the base of the stud and a small area of the workpiece.
The spring pressure in the gun plunges the stud into the molten pool, creating the weld.
Drawn Arc Welding:
A ceramic ferrule is placed over the stud.
The gun is positioned, and the trigger is pulled.
The stud is lifted from the workpiece, drawing a pilot arc.
A main arc is then established, melting the base of the stud and the workpiece.
The gun forces the stud back into the molten pool, and the weld solidifies within the ferrule, which is then broken away.

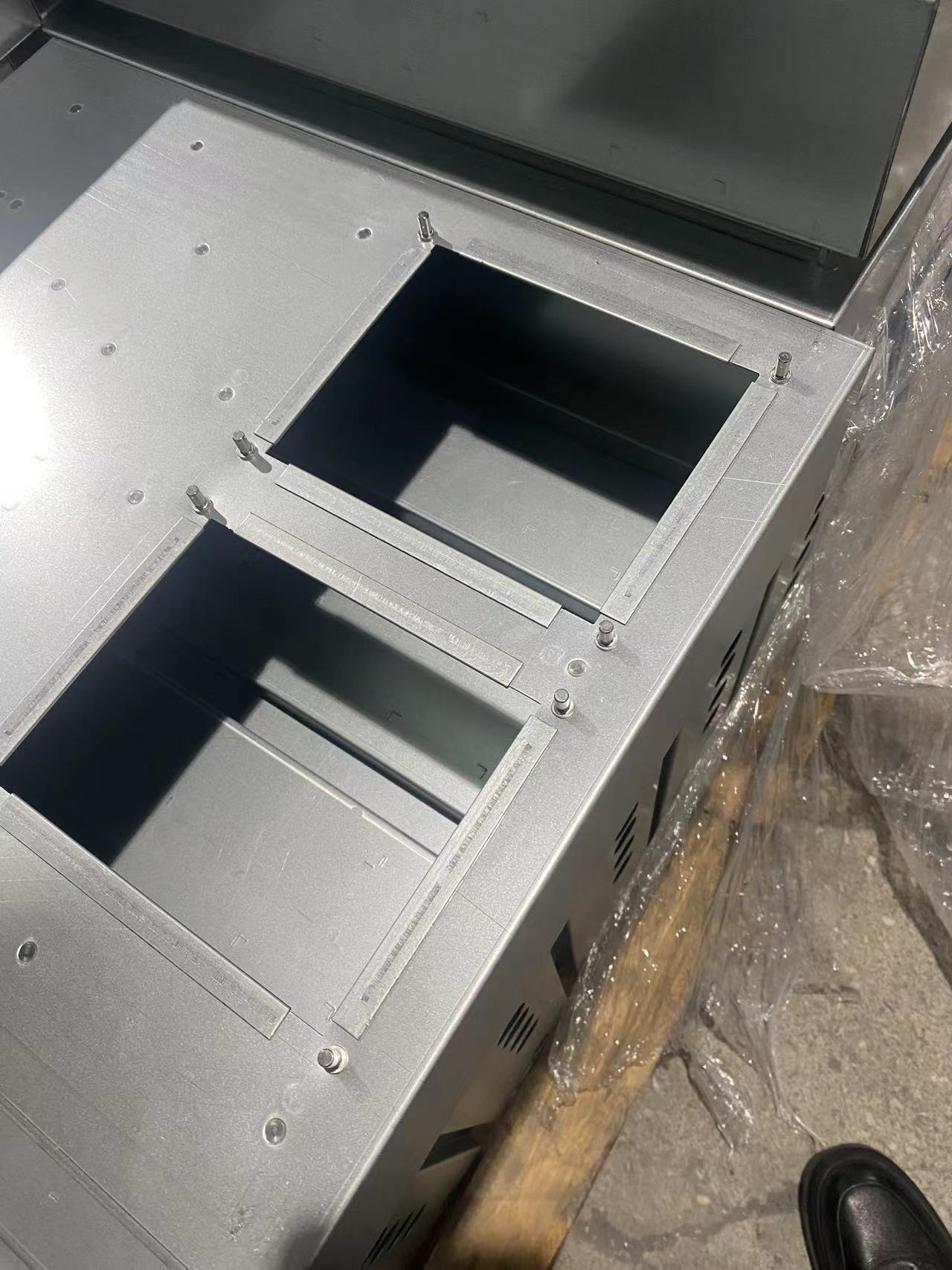

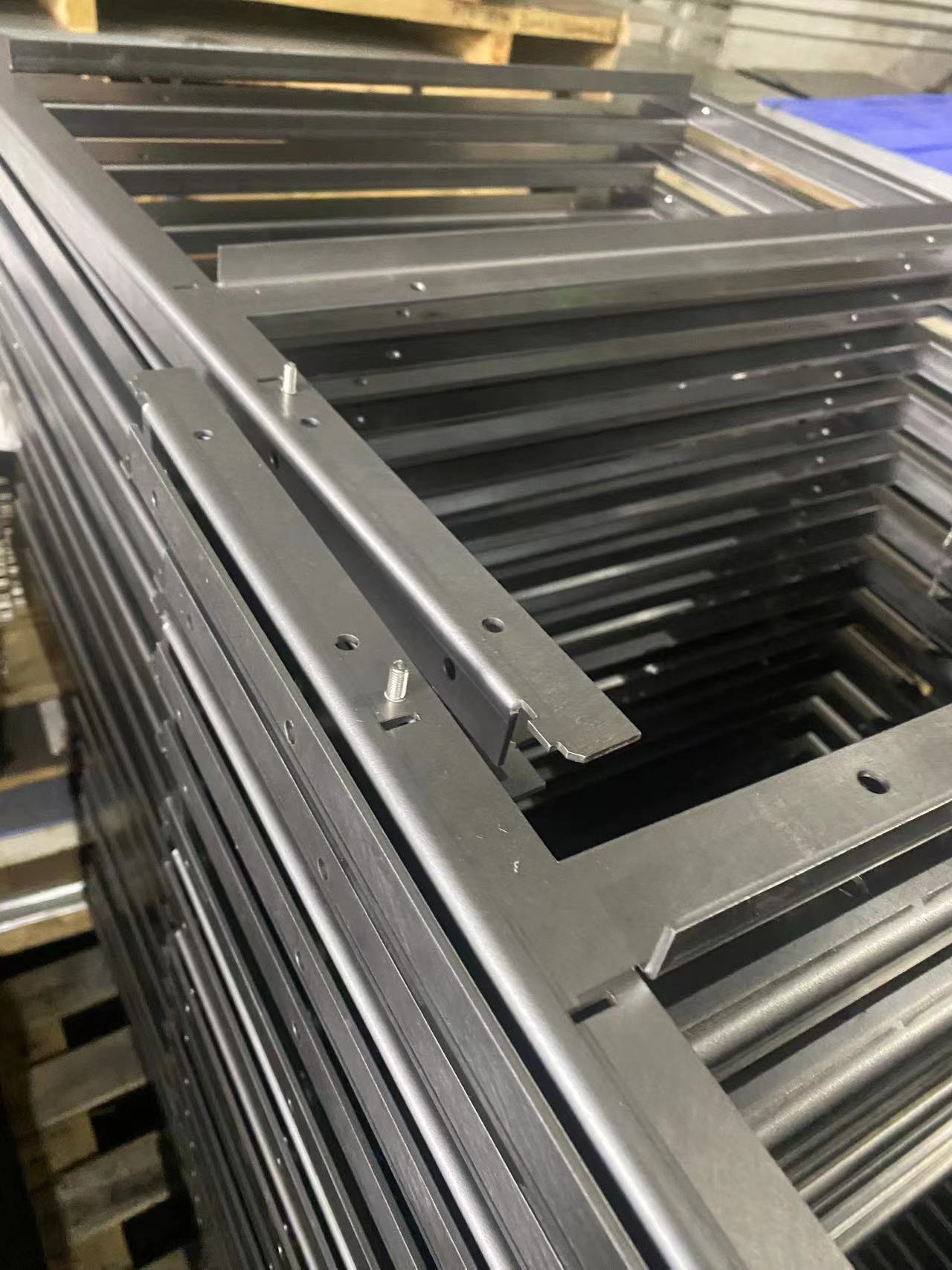

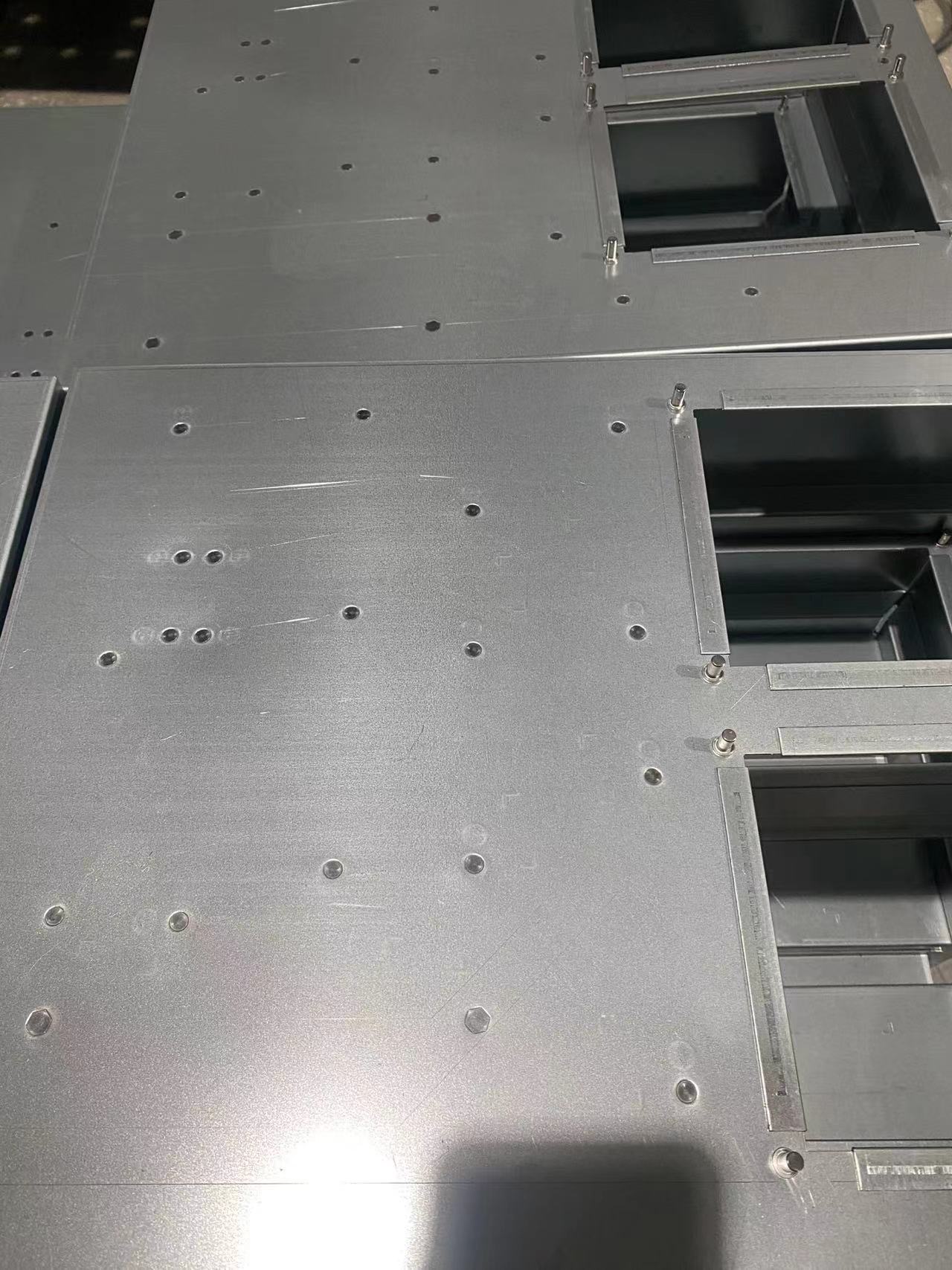

Weld studs are indispensable in scenarios where a strong, blind attachment point is needed. Key applications include:
Construction & Building: Attaching insulation, electrical conduits, HVAC ducts, and decorative cladding to steel beams and panels.
Shipbuilding & Marine: Fastening interior panels, cable trays, and equipment to the ship's hull and decks.
Automotive & Transportation: Securing wiring harnesses, interior trim, and thermal/acoustic insulation to vehicle bodies and chassis.
Appliance Manufacturing: Mounting internal components, control panels, and outer shells of ovens, refrigerators, and washing machines.

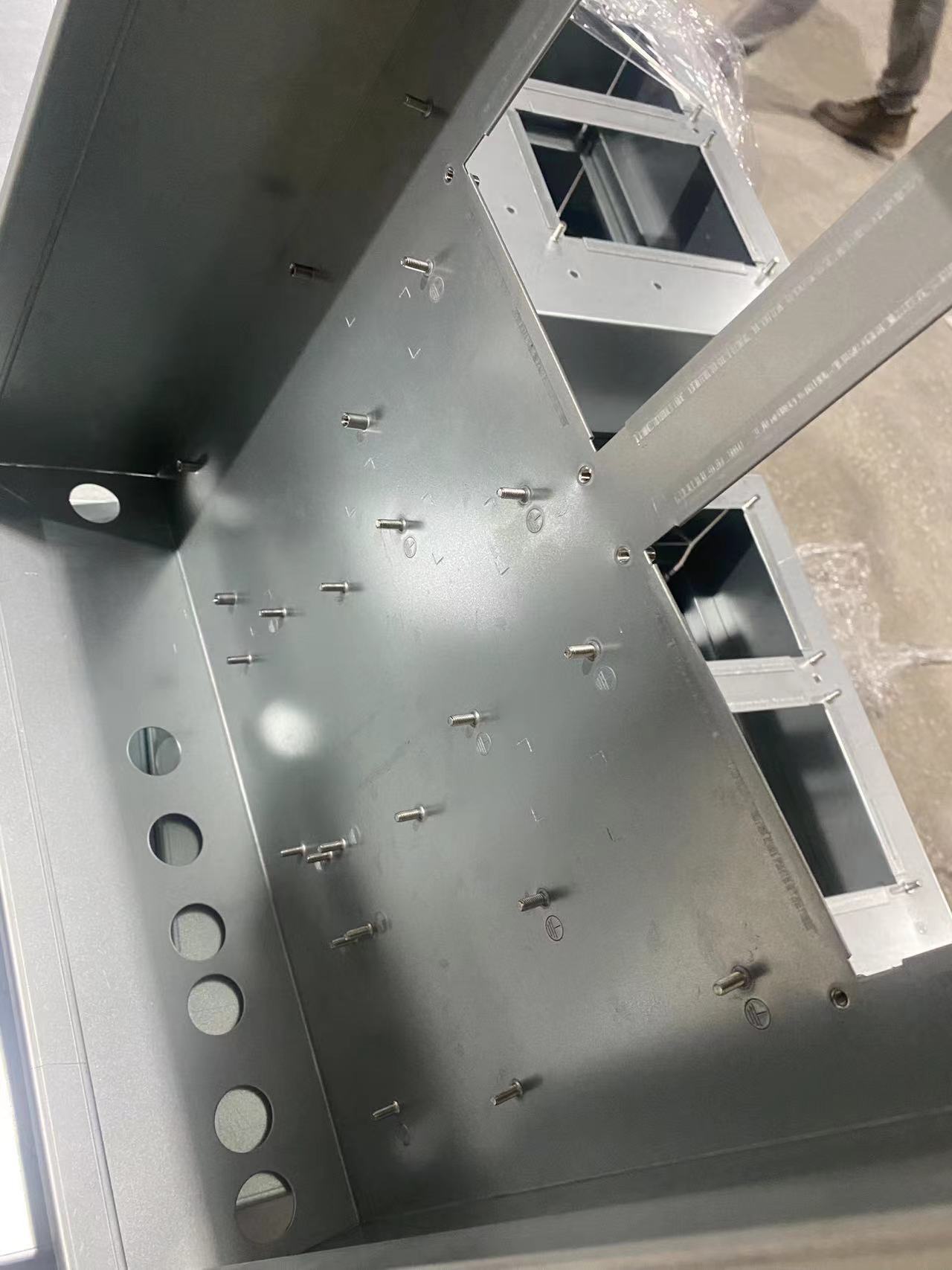

Electronics: Providing grounding points for electrical components inside control panels and enclosures.
In conclusion, the weld stud is a remarkably versatile and efficient fastener. By eliminating the need for double-sided access and hole drilling, it streamlines production, reduces labor costs, and creates a robust, permanent connection that is vital to the integrity of modern manufactured products and structures.
