In the world of manufacturing and metal fabrication, creating strong, permanent internal threads in metal sheets and structures is a common challenge. This is where the weld nut comes into play. It is a specialized fastener designed to be permanently attached to a metal surface, providing a robust and reliable threaded anchor point.
A weld nut is a type of nut that has a special configuration, such as projections or a flange, which allows it to be welded to another metal object. Unlike a standard nut used with a bolt, a weld nut becomes an integral part of the base material it's welded to. The primary purpose of a weld nut is to provide a sturdy threaded hole in situations where the base material is too thin to be tapped with threads itself or where a bolt cannot be accessed from the opposite side.
Weld nuts are known by several names, often describing their specific type or welding method. Common terms include:
Weld Nut (the general term)
Projection Weld Nut (most common type)
Spot Weld Nut
Pilot Weld Nut (has a pilot for alignment)
Weld nuts are typically made from the same families of steel as the components they are welded to, ensuring compatibility in strength and weldability.
Low Carbon Steel: The most common and cost-effective material, suitable for a wide range of applications.
Stainless Steel: Used for applications requiring corrosion resistance, such as in food processing, medical equipment, or marine environments. Grades 304 and 316 are common.
Alloy Steel: Used for high-strength applications where the fastener must withstand significant loads.
The surface finish is often applied to prevent corrosion during storage and handling before welding. Common finishes include:
Zinc Plating (Electroplated): A common, cost-effective finish that provides a basic level of corrosion resistance.
Hot-Dip Galvanizing: A thicker zinc coating that offers superior corrosion protection for harsh environments.
Cadmium Plating: Offers excellent corrosion resistance and lubricity but is less common due to environmental concerns.
Phosphating (Phosphate Coatings): Often used as a base for paint or oil, providing good corrosion resistance and improved paint adhesion.
Passivation: A chemical treatment for stainless steel that enhances its natural corrosion-resistant oxide layer.

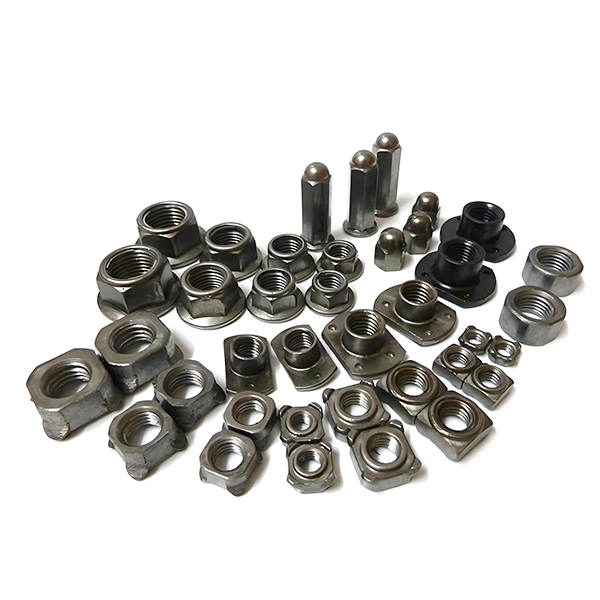

There are several types of weld nuts, each designed for specific applications and welding methods:

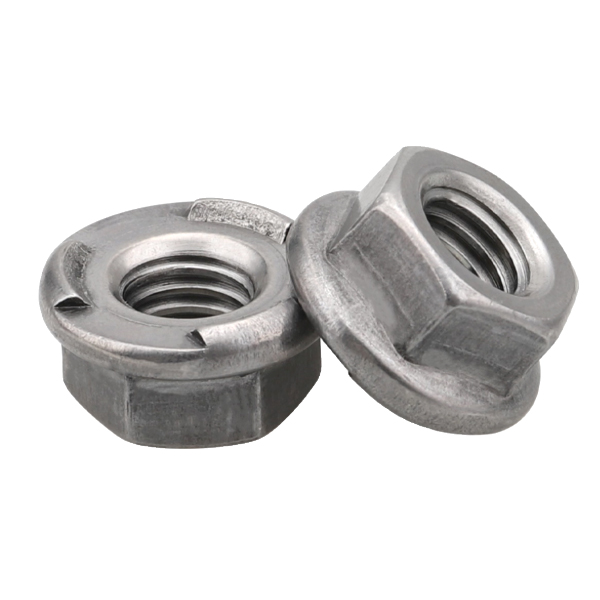

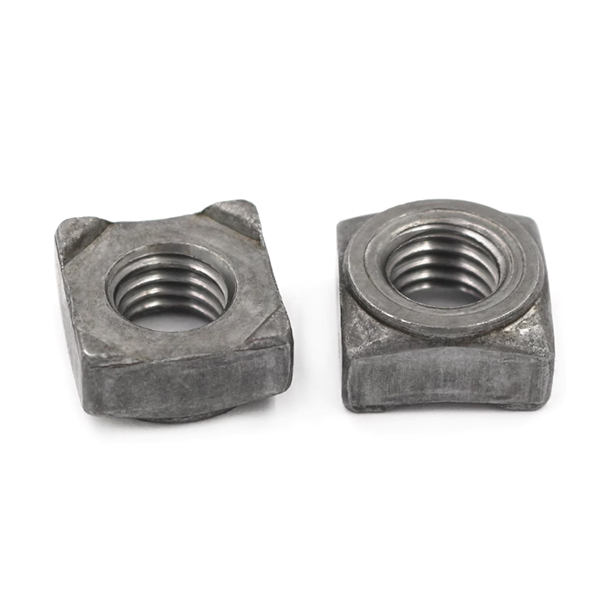

Projection Weld Nuts: The most common type. They have small, raised projections (usually three or four) on the welding face. These projections concentrate the heat and welding current during the resistance welding process, creating strong, clean welds.
Pilot Weld Nuts: These nuts have a small pilot or locating feature that extends through a pre-drilled hole in the workpiece. This ensures perfect alignment during the welding process, preventing the nut from shifting.

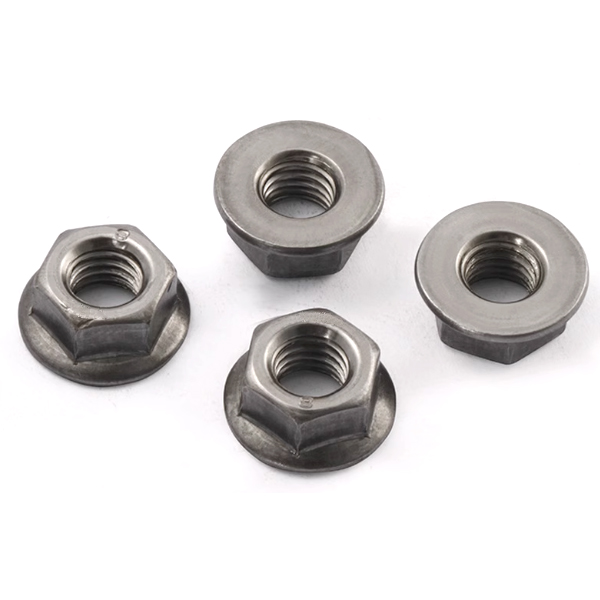

Flange Weld Nuts: These feature a wide, flat flange that provides a larger welding surface area. This distributes the load more effectively and is useful for applications where the base metal is thin.

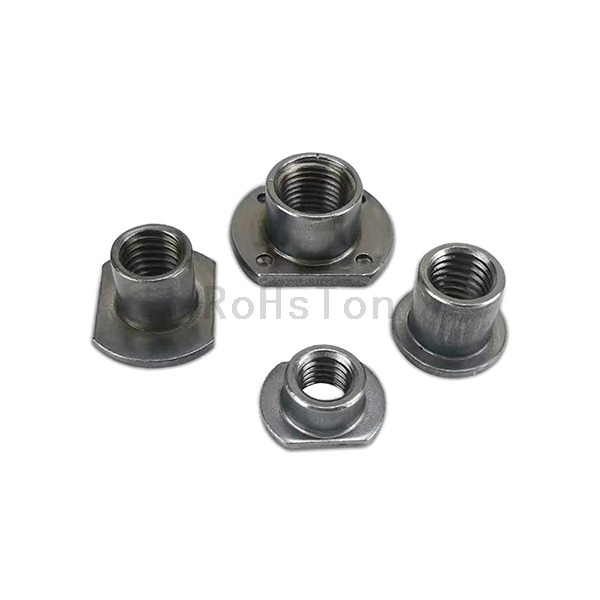

Tab Weld Nuts: Instead of projections, these nuts have one or two small tabs that are welded to the surface, often using arc welding techniques like MIG or TIG welding.
Weld nuts are available in a vast range of sizes to match standard bolt and screw dimensions. They are typically specified by their thread size and thread pitch.
Imperial Sizes: Common sizes include #10-32, 1/4"-20, 5/16"-18, 3/8"-16, and 1/2"-13.
Metric Sizes: Common sizes include M4, M5, M6, M8, M10, and M12.
The specific model (e.g., "Projection Weld Nut with 3 projections for M6 thread") is determined by the design and application requirements.
Weld nuts are installed using specialized welding equipment:
Resistance Welding (Projection Welding or Spot Welding): This is the most efficient method for high-volume production. The weld nut is placed on the workpiece, and two copper electrodes apply pressure and a high electrical current. The projections on the nut heat up instantly and fuse with the base metal. This process is fast, clean, and creates a very strong bond.
Arc Welding (MIG/TIG Welding): For smaller production runs, repairs, or when resistance welding equipment is unavailable, weld nuts can be installed using standard arc welding. The welder manually adds filler metal to fuse the nut's flange or tabs to the base material.
Weld nuts are indispensable in industries where strong, permanent, and reliable threaded points are needed. Key applications include:
Automotive Industry: Used extensively in vehicle frames, body panels, brackets, and interior components to attach parts like seats, trim, and electronic modules.
Appliances: Found in washing machines, ovens, and refrigerators for assembling outer shells, internal supports, and control panels.
Furniture: Used in the frames of office furniture, shelving units, and other metal furniture to allow for assembly and attachment of components.
Construction and Structural Steel: Employed in building frameworks, railings, and supports to create connection points for other structural elements.
Electronics and Enclosures: Used in electrical cabinets, control boxes, and server racks to mount internal components and panels securely.
In conclusion, the weld nut is a simple yet brilliant fastener that solves the problem of adding strong threads to thin or inaccessible metal surfaces. Its versatility, strength, and reliability make it a fundamental component in modern manufacturing and construction.
