The humble screw is one of the most fundamental and versatile fasteners in the world, holding everything from delicate electronics to massive steel bridges together. But to ask "how many types there are" is to open a Pandora's box of engineering and design. There isn't a single answer, as screws are categorized by multiple characteristics. Instead of a simple number, let's explore the vast universe of screws by breaking down their key differentiating features.
This is the most common way to categorize screws, based on what material they are designed to fasten.
Wood Screws: Feature a coarse, deep thread and a sharp point for biting into wood fibers. They often have an unthreaded shank under the head, which allows the wood pieces to be pulled tightly together.
Machine Screws: Designed to be fastened into pre-tapped holes in metal or used with nuts. They have finer, more uniform threads along the entire shank and are typically driven with a wrench or a driver bit into a pre-formed head.
Sheet Metal Screws: These have sharp points and fine threads that can cut their own mating threads in sheet metal, plastic, or wood. They are fully threaded from point to head.
Self-Drilling Screws: These have a drill bit-like point that eliminates the need for a pre-drilled pilot hole. They are common in metal framing and steel construction.
Drywall Screws: Feature a coarse thread and a bugle head that sits flush with the drywall surface without tearing the paper. They are often black-phosphated for corrosion resistance.
Concrete Screws (Tapcons): Have hard, asymmetrical threads and are made from high-strength, hardened steel. They are used to fasten materials to concrete, brick, or block.
Socket Screws (Set Screws): These are headless screws, often with a hex socket drive, used to secure an object within or against another object (e.g., a pulley on a shaft).
The head shape determines how the screw sits on the surface and what tools can be used.
Flat Head (Countersunk): Conical underside allows it to sit flush with or below the material surface.
Oval Head: A decorative combination of countersunk and domed head.
Round Head: Dome-shaped, used for decorative purposes or when a flush finish isn't needed.
Pan Head: Short, cylindrical head with a rounded top.
Truss Head: Extra-wide, low-profile head that provides a larger bearing surface for thin or soft materials.
Hex Head: Has a hexagonal head designed to be driven with a wrench, offering high torque capability.
Socket Head: A cylindrical head with an internal hex drive, allowing for a sleek profile and high torque.

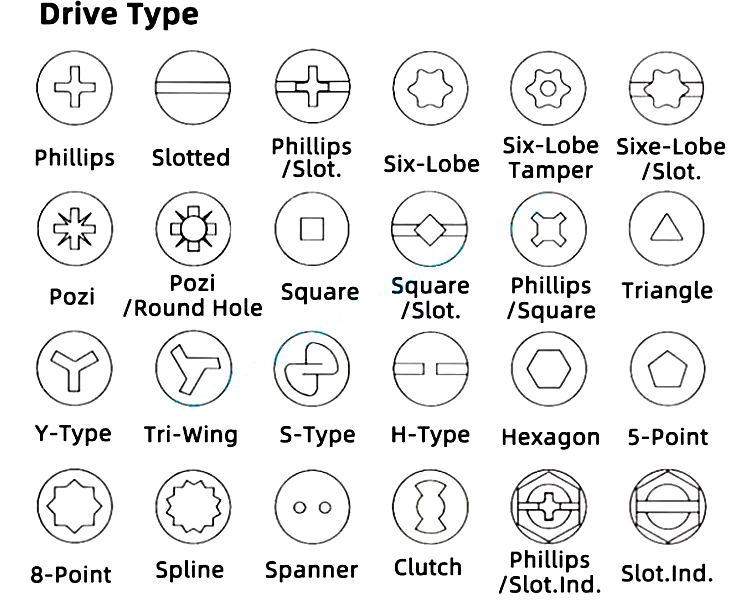

This refers to the shape of the indentation in the head used for driving.
Slotted: The oldest and simplest type, driven by a flat-blade screwdriver. Prone to cam-out (slipping).
Phillips (+): Designed to cam out at high torque to prevent over-tightening. Very common but can wear easily.
Pozidriv: An improvement on Phillips, with additional ribs for better grip and reduced cam-out.
Hex (Allen): A six-sided socket that allows for high torque application with minimal slippage.
Torx (Star): A star-shaped drive that offers the best torque transfer, minimal cam-out, and long tool life. Common in electronics and automotive applications.
Square (Robertson): A square recess that provides good grip and is popular in North America, especially for woodworking.

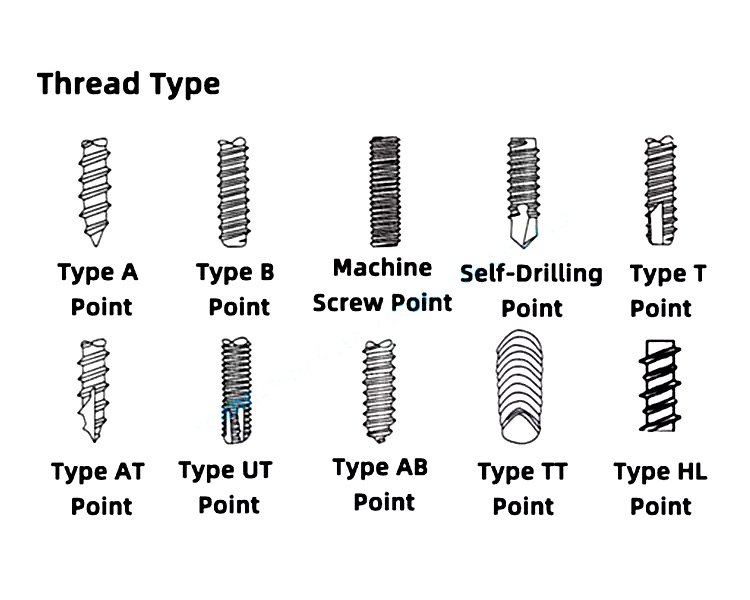

The thread is the helical structure that allows the screw to advance and grip.
Coarse Thread: Has a larger pitch (fewer threads per inch). Better for soft materials like wood and drywall, as it provides greater holding power.
Fine Thread: Has a smaller pitch (more threads per inch). Better for hard materials like metal, as it allows for finer adjustment and is less likely to cross-thread.
Metric Threads: Defined by pitch (distance between threads in millimeters) and diameter. Used worldwide.
Unified National Threads (UNC/UNF): Defined by threads per inch (TPI). UNC (Unified National Coarse) and UNF (Unified National Fine) are common in the US.
The material determines the screw's strength, weight, and corrosion resistance.
Steel (Carbon Steel): The most common material. Strong and inexpensive but prone to rust unless coated.
Stainless Steel: Excellent corrosion resistance, making it ideal for outdoor, marine, and food-grade applications. Common grades are 18-8 (304) and 316 (marine grade).
Brass: Offers good corrosion resistance and is primarily used for its decorative appearance and non-magnetic properties.
Aluminum: Lightweight and corrosion-resistant but not as strong as steel.
Titanium: Extremely strong and corrosion-resistant with a high strength-to-weight ratio. Used in aerospace and high-performance applications.
Coatings are applied to enhance appearance, add corrosion resistance, or alter surface friction.
Zinc Plating: The most common finish. Provides a shiny silver appearance and good rust resistance.
Black Oxide: A black finish that offers mild corrosion resistance and reduces light glare.
Chromium (Chrome): A very hard, decorative finish with excellent corrosion resistance.
Nickel Plating: Similar to chrome, offers a shiny silver finish and good protection.
Hot-Dip Galvanizing: A thick zinc coating applied for extreme corrosion resistance, used in outdoor construction.
Screws, especially metric ones, are graded for strength. This is often marked on the head.
Metric Property Class: Denoted by a number (e.g., 4.8, 8.8, 10.9, 12.9). The higher the number, the stronger the screw. For example, a 12.9 is a high-strength screw used in critical automotive and aerospace applications.
SAE Grade (US): For imperial screws, grades are marked with lines on the head (e.g., Grade 2 has no lines, Grade 5 has 3 lines, Grade 8 has 6 lines). Grade 8 is the strongest common grade.
Furniture Assembly: Often uses wood screws or confirmat screws with Torx drives for high torque.
Electronics: Use tiny machine screws with Phillips or Torx drives, often made of stainless steel.
Automotive: Employ high-strength property class 10.9 or 12.9 bolts and self-tapping screws for body panels.
Deck Building: Uses coated or stainless steel deck screws with a star drive to resist weathering and cam-out.
Roofing: Utilizes specialized roofing screws with large washer heads and neoprene seals to prevent leaks.
So, how many types of screws are there? The answer is effectively infinite. The combination of head type, drive type, thread, material, finish, and strength grade creates a nearly endless array of specialized fasteners, each engineered for a specific purpose. This incredible variety is a testament to the screw's indispensable role as a simple machine that literally holds our modern world together. Choosing the right one is key to the integrity and longevity of any project.
