In high-stakes environments—from swaying skyscrapers to roaring jet engines—a loose bolt can cascade into catastrophe. When vibrations, dynamic loads, or thermal cycles threaten to undo critical connections, engineers deploy a surprisingly simple yet profoundly effective solution: stacking two nuts on a single bolt. This tactic, formally termed the double-nut system, transforms an ordinary threaded joint into a vibration-resistant powerhouse. At its core, it addresses the Achilles’ heel of bolted assemblies: spontaneous loosening under cyclic stress. But how does this uncomplicated hardware upgrade anchor machinery against relentless shaking, and why is it preferred over alternatives like lock washers or adhesives?

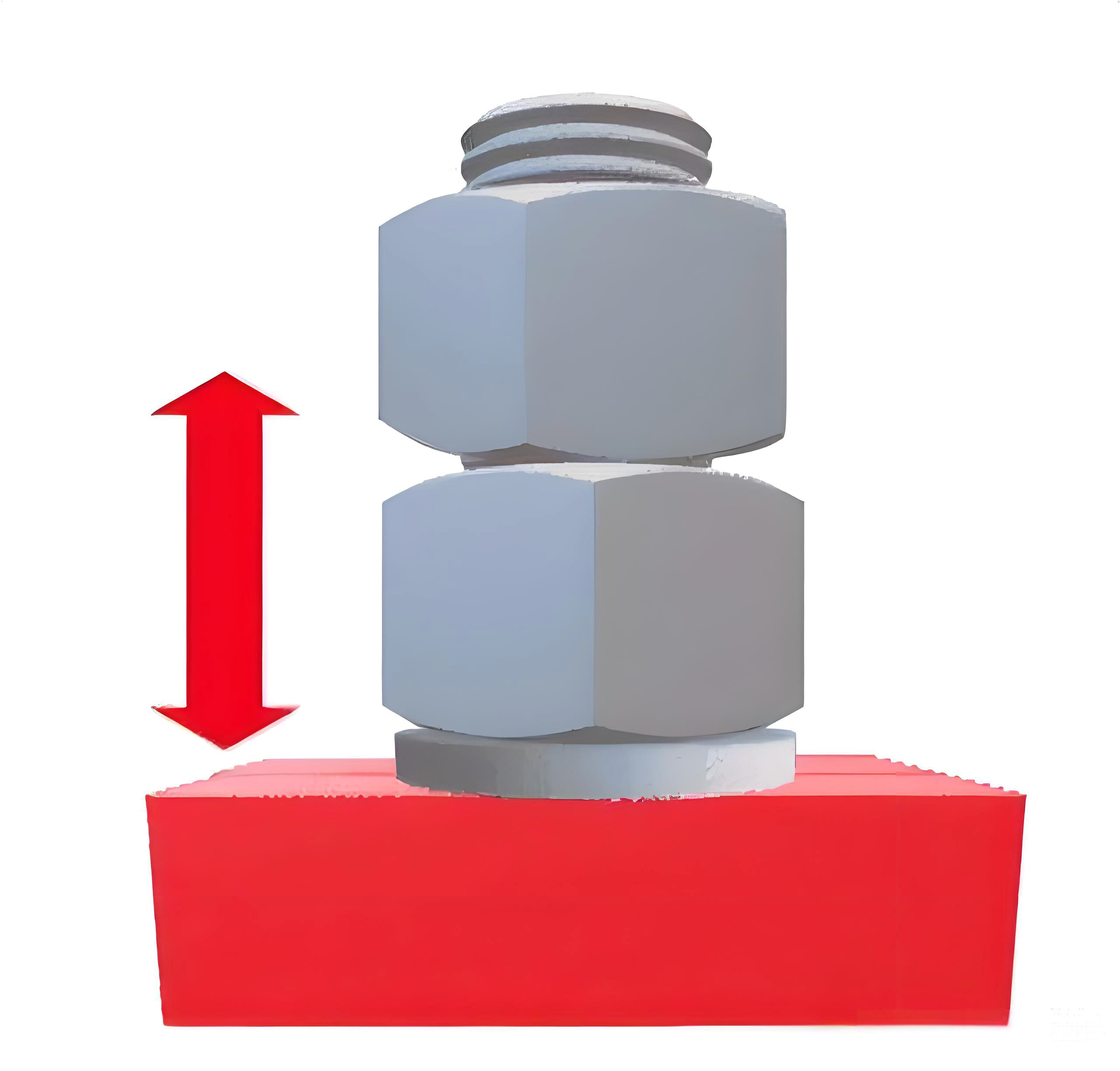

The double-nut system strategically combines two nuts tightened against each other on the same bolt. Unlike a single-nut setup vulnerable to rotation from vibration, this pairing creates a self-locking mechanism. Typically, the lower (primary) nut provides the main clamping force, while the upper (secondary) nut acts as a "jam nut" that prevents backward rotation.
The physics of locking hinges on two principles:
Friction Amplification: When tightened against each other, the two nuts generate axial tension in the bolt, which compresses the threads. This dramatically increases the frictional resistance at the thread interfaces and nut-bearing surfaces.
Thread Interference: In advanced variants like the Hardlock Nut, the secondary nut is eccentrically designed. As it tightens against the primary nut, it forces the threads to wedge against the bolt asymmetrically, creating a mechanical "pinch" that resists unthreading even under extreme loads.
Notably, the tightening sequence matters. For optimal performance:
The primary nut is tightened to ≈80% of the target torque.
The secondary nut is then tightened to 100–120% of this value, jamming the pair together.
This sequence exploits micro-gaps between threads, inducing elastic deformation that "locks" the assembly.
While double nuts excel in many scenarios, they are one of several anti-loosening strategies. Each method has distinct advantages and limitations:
| Method | Mechanism | Pros | Cons |
|---|---|---|---|
| Double Nuts | Friction + Thread jamming | Reusable, high reliability, no special parts needed | Adds weight/space; requires precise torque |
| Lock Washers | Spring force or teeth bite | Low cost, simple installation | Prone to wear; unreliable under high vibration |
| Adhesives | Chemical bonding between threads | No added bulk; seals threads | Single-use; sensitive to temperature/chemicals |
| Castle Nuts | Mechanical lock via pin/wire | Positive lock; visual inspection | Complex install; not reusable |
| Deformation (e.g., staking) | Permanent thread distortion | Inexpensive; high strength | Destructive removal; non-reusable |
Of these, mechanical locks (e.g., pins or wires) physically block rotation but only engage once the nut has already loosened slightly—meaning they prevent detachment but not initial loosening. Chemical adhesives (thread lockers) offer robust sealing and friction but complicate disassembly and degrade under heat or solvents. Double nuts strike a balance: they are reusable, adjustable, and need no consumables.
The resilience of double nuts in high-vibration settings stems from three core strengths:
Sustained Preload: By maintaining bolt tension, they resist "embedding relaxation"—a common cause of failure where joint surfaces compress over time.
Fault Tolerance: If the primary nut loosens slightly, the secondary nut arrests rotation before critical failure.
Durability: Unlike nylon-insert lock nuts (which wear after reuse) or serrated washers (which lose bite), metal-on-metal double nuts endure hundreds of cycles.
However, the system has drawbacks. It doubles axial space, complicating use in compact designs. It also increases weight—a concern in aerospace—and requires precise torque sequencing during installation. Over-tightening the secondary nut can overstress the bolt, risking fracture.

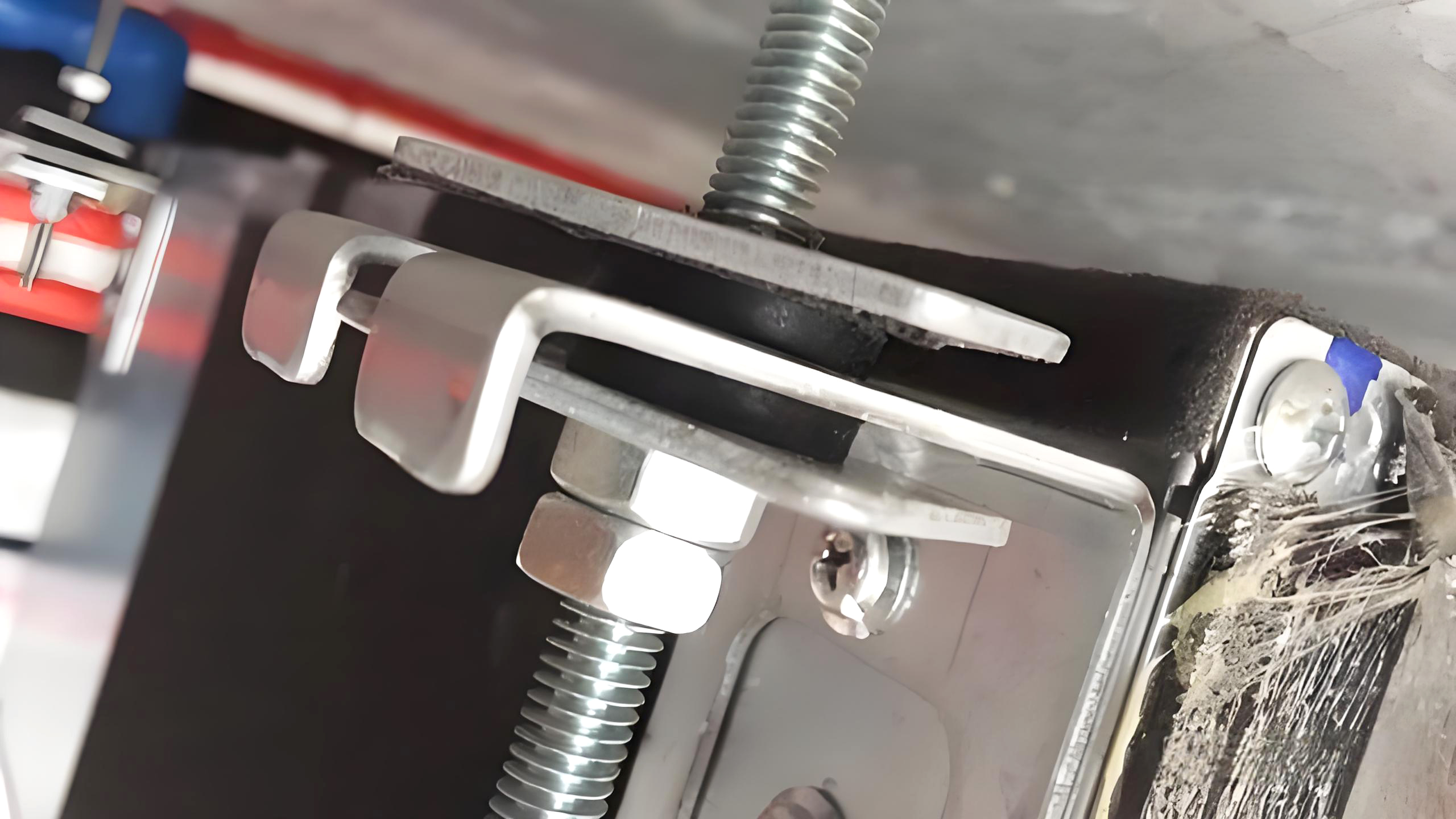

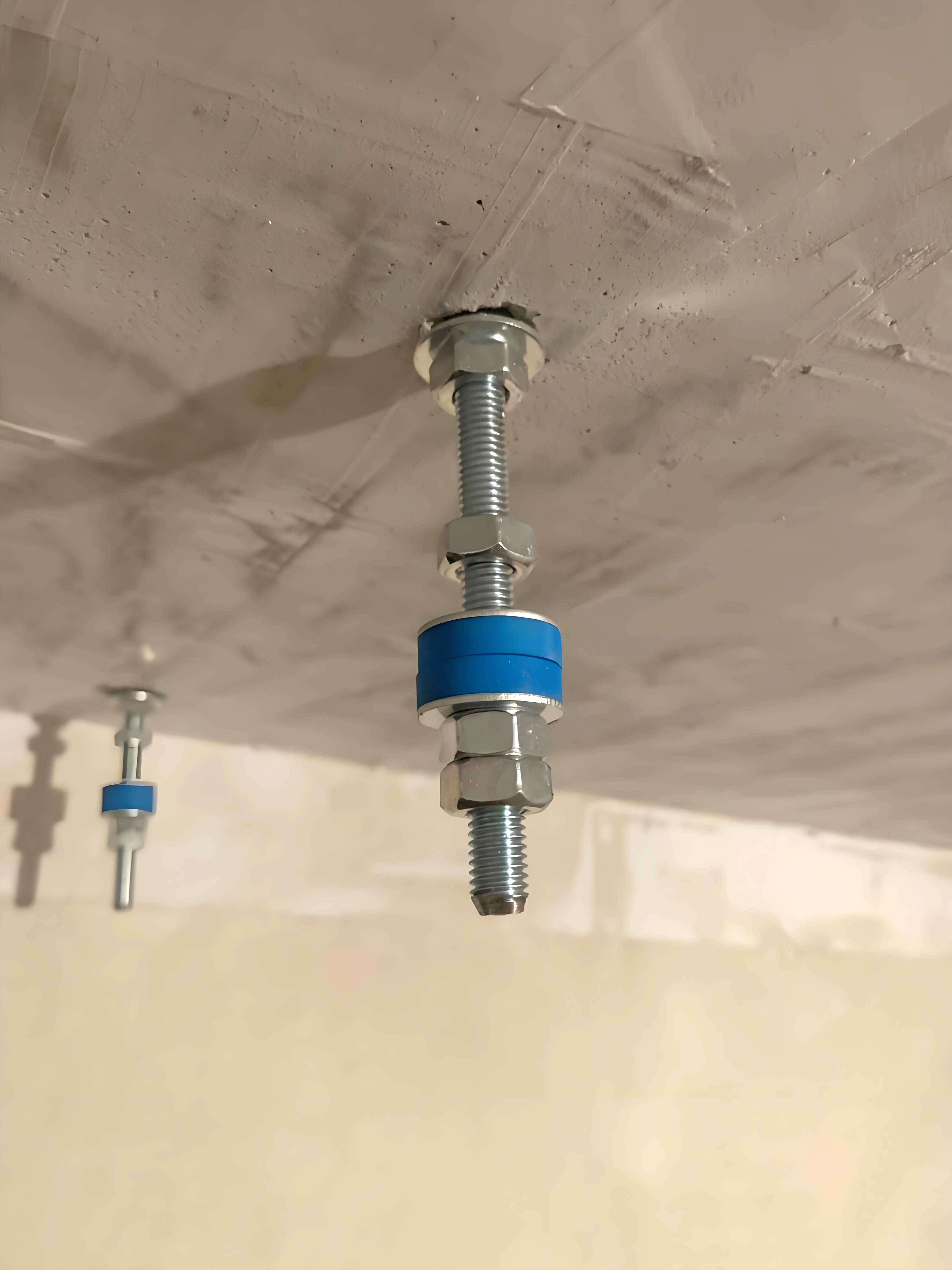

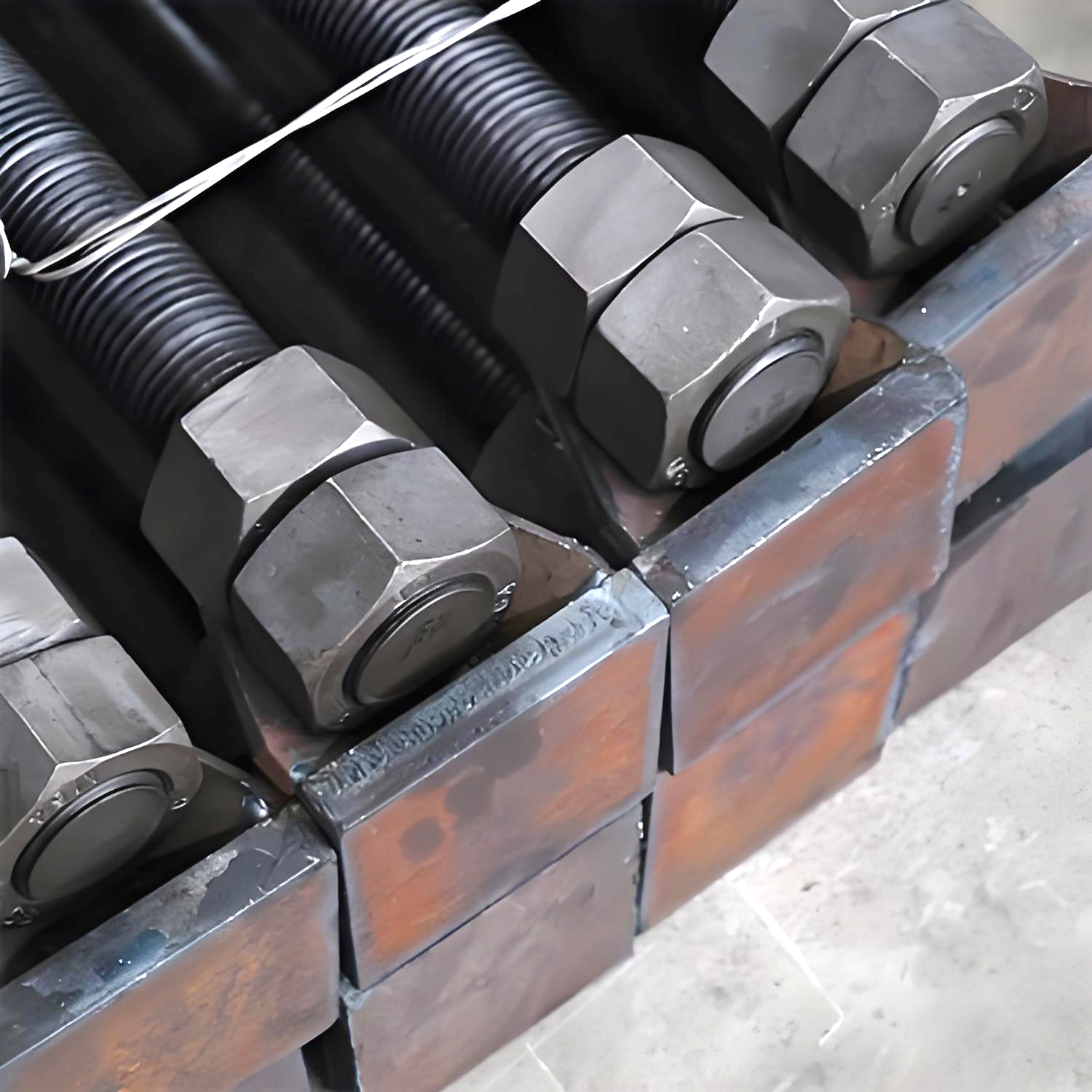

Double nuts dominate industries where vibration is relentless and failure is unthinkable:
Infrastructure: In steel structures like wind turbine towers and bridges, double nuts secure flange connections against wind-induced oscillations. Their reusability enables maintenance without bolt replacement—critical for remote or towering installations.
Transportation: High-speed trains and aircraft leverage variants like the Hardlock Nut for wheel assemblies and engine mounts. Here, wedge-type double nuts withstand 1000× more vibration than standard nuts.
Heavy Machinery: Crushers and mills use double nuts to lock cone liner bolts subject to cyclical impact. Replacing a single-use bolt with a double-nut system shifts wear to replaceable nuts, slashing downtime and cost.
For moderate loads, alternatives like spring washers suffice. But when vibrations exceed 5 g or temperatures fluctuate wildly, double nuts become indispensable.
Recent advances refine this age-old solution:
Differential Pitch Nuts: Paired nuts with slightly mismatched thread pitches create internal tension. As one tightens against the other, pitch discrepancy induces binding that resists rotation.
Hard-Point Nuts: A primary nut with hardened steel protrusions bites into a secondary nut. This concentrates contact pressure, boosting friction without full-hardening the entire nut (cutting cost).
Hybrid Systems: Combining double nuts with lubricating thread lockers reduces torque scatter during tightening while enhancing post-cure locking. The lubricant enables precise preload; the adhesive then cures into a solid backup.
Such innovations push double nuts into new realms—from Mars rovers (temperature cycling) to deep-sea rigs (hydrodynamic forces).
Double nuts endure because they convert a bolt’s vulnerability—threaded slop—into an asset. By exploiting minute clearances for self-locking, they outmaneuver vibration where complex or disposable solutions fail. While not universal (weight-sensitive or miniature designs may opt for adhesives), their blend of reliability, reusability, and simplicity makes them a first-line defense in engineering’s shakiest environments. Next time you cross a suspension bridge or board a plane, remember—two humble nuts, working in tandem, might be all that stands between motion and disaster.
