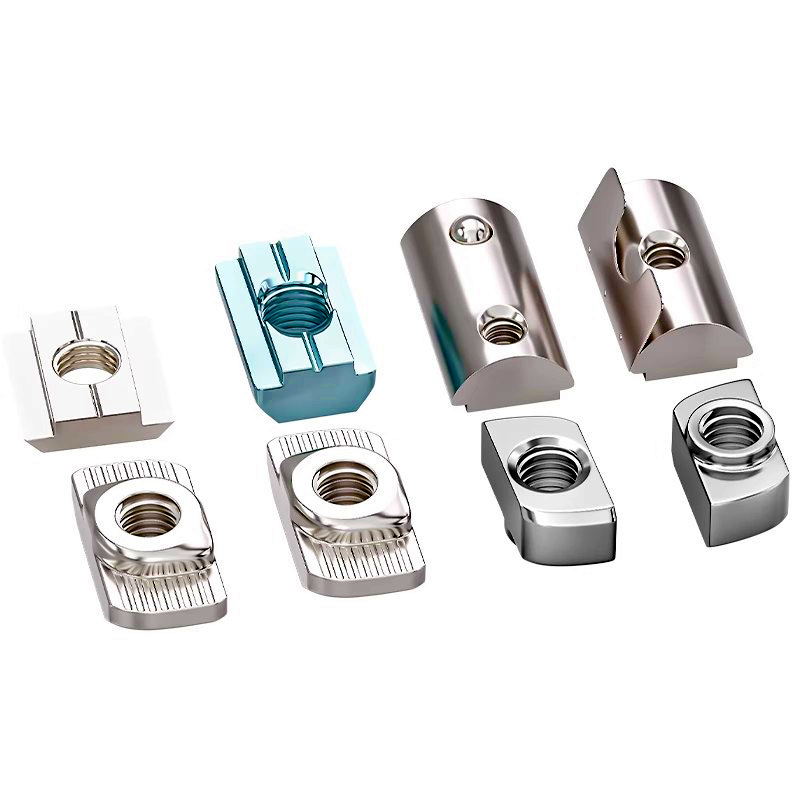

T-nuts, also known as T-slot nuts or tee nuts, are specialized fasteners designed to slide into the grooves of profiles—most commonly aluminum extrusions or optical rails—and provide threaded anchoring points. Characterized by their distinctive "T" shape, these nuts feature a flattened head (the crossbar of the "T") and a threaded stem perpendicular to it. Unlike traditional nuts, T-nuts are retrofit-friendly, meaning they can be inserted after the frame or rail system is fully assembled. This design makes them indispensable in modular construction, where components frequently need repositioning or replacement.
T-nuts solve a fundamental problem in structural and optical systems: how to create secure, adjustable, and reusable connections within slotted tracks. Their operation relies on three simple mechanical principles:
Automatic Locking and Positioning: When inserted into a profile’s slot and rotated 90°, the T-head aligns itself perpendicularly under the track’s overhanging edges. This rotation mechanically locks the nut in place, preventing it from pulling out. Tightening a bolt into the nut’s threaded stem then draws the T-head upward, clamping it firmly against the slot’s underside.
Load Distribution: The broad surface area of the T-head spreads forces across a wider section of the extrusion slot. This minimizes localized stress and prevents deformation, even under heavy dynamic loads.
Friction-Based Stability: For non-rotational variants like elastic nuts, spring-loaded balls or ridges on the nut’s back generate friction against the slot walls, resisting unintended movement during vibration or partial disassembly.
T-nuts are not one-size-fits-all; engineering demands have spurred diverse designs for distinct applications:
| Type | Key Features | Ideal For |
|---|---|---|
| Standard T-Nut | Requires 90° rotation to lock; paired with hex bolts | General framing (workbenches, enclosures) |
| Drop-In T-Nut | Installed vertically; removable only from rail ends | Optical rails with blocked ends |
| Quick-Release T-Nut | Inserted/removed without rail-end access; self-centering | Optics labs requiring frequent reconfiguration |
| Elastic/Spring T Nut | Spring steel ball creates friction; pushed directly into slots | Light-duty frames; incompatible with ultra-light extrusions |
| Anti-Backlash T Nut | Self-lubricating thermoplastics (e.g., acetal) eliminate screw-nut play | Precision systems (medical devices, CNC) |
Table: Comparison of T-nut variants based on design and functional strengths.

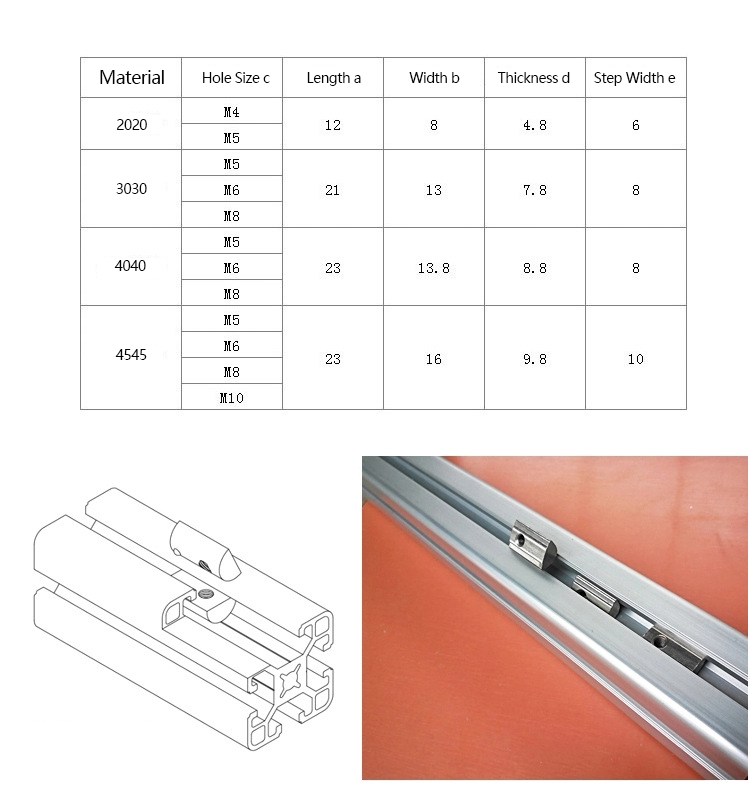

Regional Standards: European (e.g., 20/30/40/45 series) and Chinese national standards (e.g., 30/40 series) differ in dimensions and load ratings. For example, a Series 40 nut suits 8–14 mm slots, while a Series 45 fits wider 10 mm slots.
Material choice balances strength, corrosion resistance, and cost:
Carbon Steel: Most common base material; often zinc-plated or nickel-plated for rust prevention. Used in industrial framing where extreme loads aren’t expected.
Stainless Steel: Essential for high-moisture, chemical, or food-processing environments (e.g., medical devices, washdown areas).
Self-Lubricating Polymers: Acetal in anti-backlash nuts reduces friction and enables maintenance-free operation. Combined with coatings like Black Ice (PTFE on steel screws), they ensure smooth motion in precision systems.

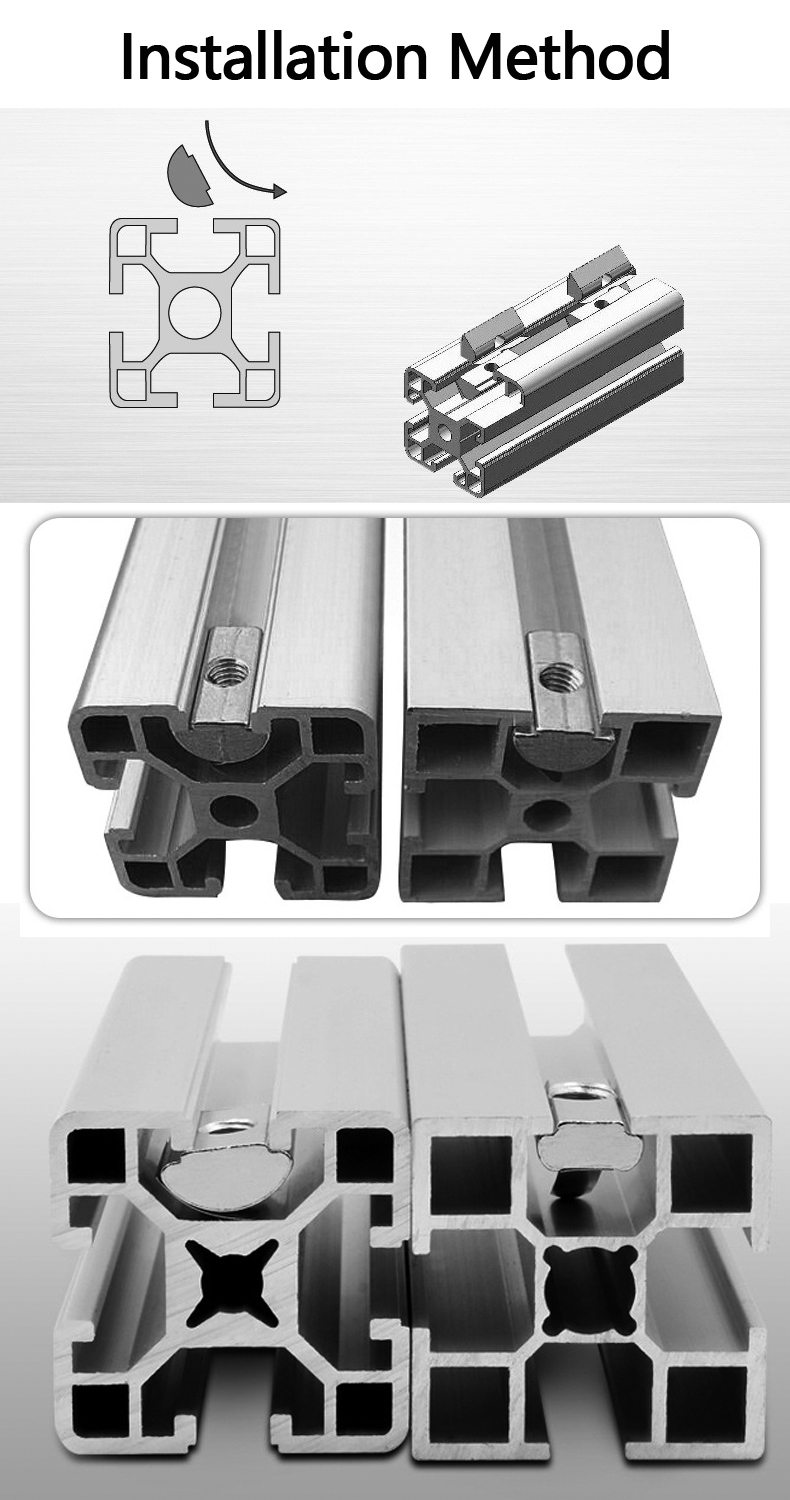

Correct installation ensures optimal load transfer and prevents failure:
Standard T-Nut:
Slide the nut longitudinally into the profile slot.
Rotate 90° to lock the head under the slot lips.
Insert and tighten the bolt, drawing the T-head upward to clamp.
Quick-Release/Drop-In T-Nuts:
Align vertically with the slot and drop in (no rotation needed).
Remove drop-in types only from the rail end; quick-release types unclip directly.
Elastic Nuts:
Press directly into the slot until the spring ball snaps against the slot wall.
⚠️ Critical Tip: Over-tightening can strip aluminum threads or deform slots. Use torque-limiting tools for M6+ sizes.
T-nuts enable reconfigurable, rigid structures in diverse fields:
| Application | T-Nut Type Used | Why It Works |
|---|---|---|
| Industrial Workstations | M8 T-Nuts + hex bolts | Handle vibration from machinery; allow tool-free layout changes |
| Optical Benches | Quick-release or low-profile | Secures lasers/lenses without obstructing adjacent components |
| Medical Automation | Anti-backlash polymer nuts | Zero play ensures precision in imaging/robotic systems |
| Conveyors & Guardrails | Heavy-duty Series 45/60 | Resist shear forces from impacts or product loads |
| Solar Panel Mounting | Stainless steel T-nuts | Withstand outdoor corrosion while allowing seasonal angle adjustments |
The T-nut’s genius lies in merging retrofit adaptability with structural integrity. Unlike welded joints or permanent fasteners, they let engineers:
Dynamically reposition components (e.g., realigning sensors on an optical rail).
Distribute load over slots, not just threads, enabling lighter aluminum frames to bear heavy loads.
Reduce assembly time—no drilling or tapping required.
From factory floors to particle accelerators, this humble fastener remains the silent enabler of modular innovation. As robotics and renewable energy evolve, expect even smarter variants—perhaps with embedded sensors or shape-memory alloys—to emerge.
