Fasteners serve specialized purposes, and understanding the distinction between a standard hex nut ("regular nut") and a true T-nut (designed for tracks/slots) is crucial for proper assembly in framing, machining, and industrial applications.
Regular Nut (Hex Nut):
Functions as a threaded clamping device. It screws onto a bolt or threaded rod after it passes through components, applying clamping force against a surface or washer. Requires wrench access.
T Nut:
Functions as a threaded anchor within a track or slot. It slides into the T-slot channel of aluminum extrusions, machine tables, or framing systems. Its unique shape locks into the slot's profile, providing a captive, anti-rotational threaded point. Bolts are then tightened down into the T-nut.
Regular Nut (Hex Nut):
Shape: Simple hexagonal prism.
Thread: Continuous internal thread through a central hole.
Anti-Rotation: Relies solely on wrench flats. Requires counter-torque during tightening/loosening.
Symmetry: Usually symmetrical top-to-bottom.
T Nut (For Tracks/Slots):
Shape Locking: The head's profile precisely matches the T-slot's internal shape, preventing rotation when seated correctly.
Spring Elements (Common): Many modern T-nuts incorporate:
Spring Steel Inserts: Flexible metal tabs on the head that press against the slot walls, providing friction and preventing "rattle" or accidental movement before bolt tightening.

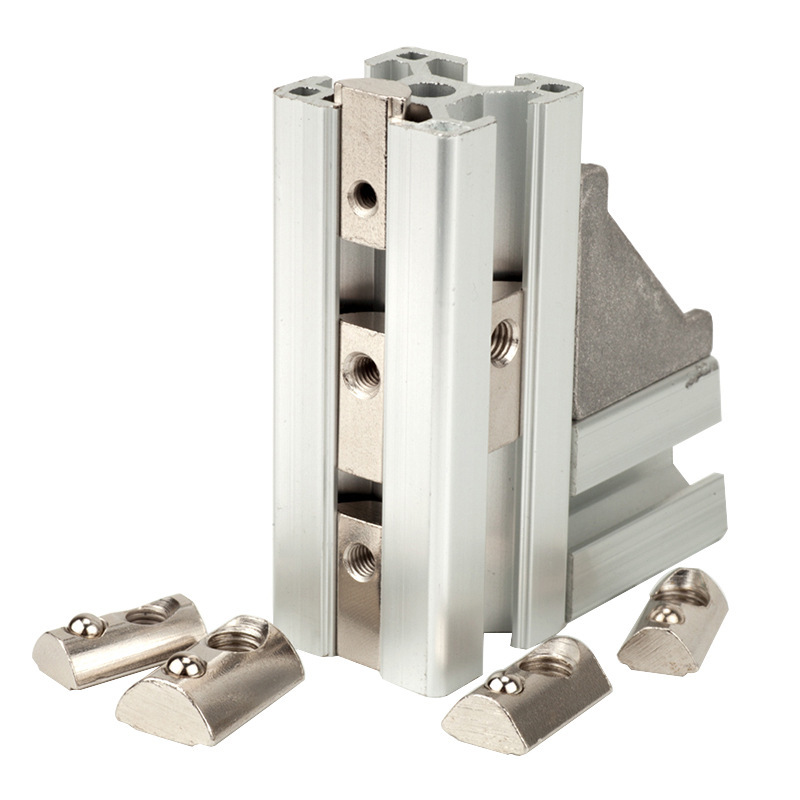

Ball Bearings: A small captive ball bearing protrudes slightly from the head under spring pressure, gripping the slot wall for pre-tension and smooth sliding resistance.
Serrated Flange Edges: Some heavy-duty types have serrations to bite into softer track materials.
(Note: Prongs are characteristic of wood insert nuts, not standard track T-nuts).
Head/Flange: Wide, flat top designed to sit within the T-slot channel and engage its undercut shoulders. Shapes vary (rectangular, modified rectangle, circular with flats).
Barrel/Stem: Shorter, threaded cylinder extending down from the head, aligning with the slot opening.
Shape: Resembles a flattened "T" designed to fit a specific slot profile:
Thread: Internal thread runs through the barrel.
Anti-Rotation Mechanism (Critical Difference):
Asymmetry: Designed for specific insertion orientation into a slot.
Regular Nut:
Insert bolt through components.
Thread nut onto bolt end.
Tighten with a wrench/socket (access required).
T Nut:
Insert the T-nut into the open end of a T-slot channel, aligning its head with the slot profile.
Slide the T-nut along the track to the desired position.
Insert bolt/screw through the component and thread it down into the T-nut's barrel.
Tighten: As the bolt tightens, it pulls the T-nut upwards, forcing its head/flange tightly against the internal shoulders of the T-slot, securely locking it in place and preventing rotation/sliding. No access to the nut itself is needed after insertion.
Regular Nut: Universal use: bolting metal plates, securing parts with through-holes, general assembly where backside access exists (machinery, vehicles, structures, furniture frames).
T Nut:
Aluminum Extrusion Framing: (e.g., 80/20, Bosch Rexroth, Item). Core component for building modular structures.
Machine Tool Tables: Milling machines, CNC routers, drill presses with T-slots for workholding.
Optical Tables & Breadboards: Securing optical components.
Jigs & Fixtures: Creating adjustable clamping points.
Industrial Workbenches & Assembly Lines: With T-track surfaces.
Stage & Rigging: Modular set construction.
Captive Design: Cannot fall out of the slot.
Adjustability: Slides freely along the track for infinite positioning before tightening.
One-Sided Access: Components can be secured from the top/accessible side only.
Strong Anti-Rotation: Mechanical locking within the slot profile prevents spinning.
Distributed Load: Wide flange bears load against the strong internal shoulders of the extrusion/slot.
No Backside Access Required: Critical for enclosed profiles or large panels.
| Feature | Regular Nut (Hex Nut) | T Nut (For Tracks/Slots) |
|---|---|---|
| Primary Role | Clamping Device | Captive Threaded Anchor in Track |
| Shape | Hexagonal | Flanged "T" (Matched to Slot Profile) |
| Anti-Rotation | Wrench Flats | Slot Profile Locking + Spring Elements |
| Installation | Threads onto bolt end | Slides into T-slot channel |
| Positioning | Fixed once tightened | Infinitely adjustable along track |
| Tightening | Wrench on nut & bolt | Bolt tightened DOWN into nut (nut fixed) |
| Access Required | Access to nut side essential | Access only to bolt side needed |
| Typical Use Case | General bolted joints | Aluminum extrusions, machine tables, T-slotted framing |
In Conclusion:
While both are threaded fasteners, the regular hex nut is a fundamental clamping component used with bolts where access is possible. The T-nut is a specialized solution designed specifically for integration with T-slot channels in extrusions and machine tables. Its defining characteristics are its slot-locking flange profile, captive and adjustable nature, integrated anti-rotation features (like spring steel or ball bearings), and operation where bolts are tightened into it, requiring only single-sided access. Using a hex nut in a T-slot is impractical; the T-nut is the engineered solution for this ubiquitous industrial interface.
