Threaded inserts are indispensable for enhancing the strength, durability, and reliability of screw threads in various materials—especially softer metals, plastics, or repaired components. Among these, Keenserts (often branded as KEENSERT® or ACME) and Helicoils (a type of wire thread insert) stand out as two widely adopted solutions. Though both serve to reinforce threaded holes, their structural designs, installation methods, and ideal applications differ fundamentally.
Core structure: A solid sleeve with precision-cut internal and external threads. Its key distinguishing feature is the inclusion of 2–4 longitudinal keys (or "kees") pre-installed along its outer diameter. These keys act as locking pins.
Material: Typically made from carbon steel, stainless steel (e.g., 303, 304), or titanium alloys, prioritizing corrosion resistance and structural integrity.
Locking mechanism: During installation, the keys are driven radially outward into the host material. This mechanically deforms both the insert’s external threads and the base material’s internal threads, creating a permanent, vibration-resistant lock.
Key geometry: Modern designs feature tapered keys with arc-transition profiles between the guide and functional sections. This prevents breakage during installation and ensures uniform key depth.

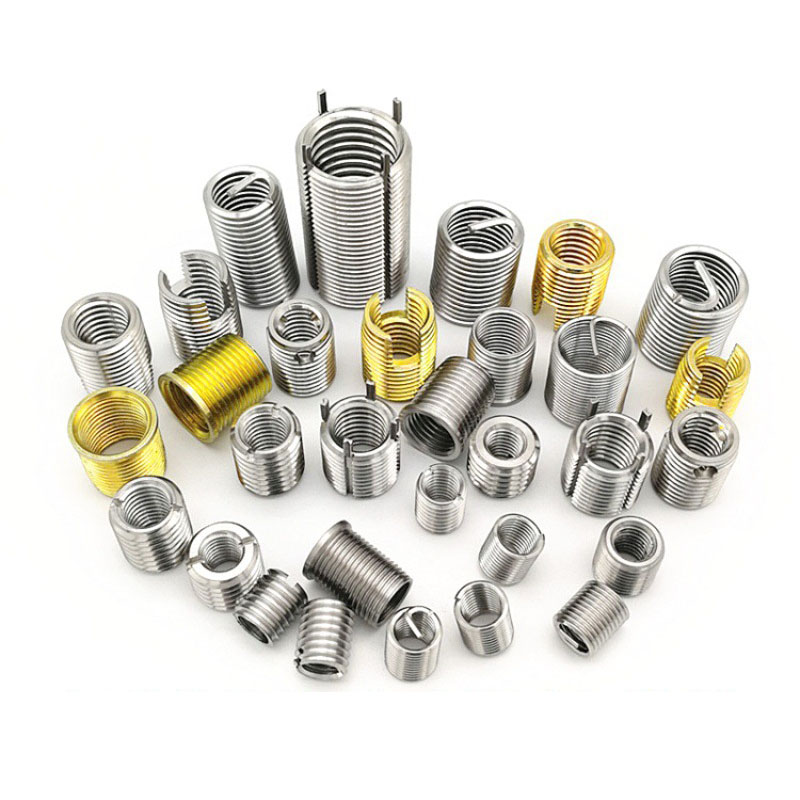

Core structure: A spring-like coil formed from diamond-shaped stainless steel wire. When compressed into a thread, it creates concentric internal and external threads.
Material: Primarily stainless steel (for corrosion resistance) or specialized alloys like copper (conductive) or high-temperature nickel alloys.
Load distribution: Its elastic design equalizes load across all thread turns. This mitigates stress concentration and significantly boosts fatigue resistance in soft materials like aluminum or plastic.
Variants: Includes free-running (FR) types for general use and screw-locking (SL) versions with a locking ring for vibration-prone settings.
Table: Key Structural Differences
| Feature | Keensert | Helicoil |
|---|---|---|
| Form | Solid metal sleeve with locking keys | Wire-wound spring coil |
| Locking Mechanism | Mechanical interference via driven keys | Elastic expansion + optional locking polygon |
| Material Options | Stainless steel, titanium, alloy steel | Stainless steel, copper, high-temp alloys |
| Thread Engagement | Rigid, permanent | Elastic, distributes load |
✅ Pros:
Delivers exceptional resistance to vibration loosening due to its rigid key-lock design—ideal for aerospace or heavy machinery16.
Enables high-torque applications without pull-out failure.
No special taps needed for installation beyond standard threading tools.
❌ Cons:
Installation requires driving keys radially, which can be complex in tight spaces.
Removal is destructive: Damaged threads often necessitate re-drilling.
Generally costlier than wire inserts due to solid-metal construction.
✅ Pros:
Superior fatigue strength: Absorbs vibration and compensates for thread misalignment.
Simplifies repairs: Restores stripped threads to original size without upsizing holes.
Reusable: Inserts can often be replaced without damaging the host material.
❌ Cons:
Lower axial pull-out strength than solid inserts.
Installation requires specialized tools: ST taps and insertion mandrels.
Locking types (SL) increase installation torque but still lag behind mechanical keys in extreme-vibration environments.
Drilling & Tapping: The hole is drilled and tapped using a standard tap sized for the Keensert’s OD.
Insert Placement: The insert is threaded into the hole.
Key Driving: Using a hammer or press, the keys are driven into the base material via a tapered punch, cold-forming the metal around them and locking the insert.
Validation: Keys must deform 25–30% of the thread height to ensure a secure fit without fracturing.
Drilling & Specialized Tapping: A hole is drilled using an oversized bit, then tapped with an ST-type tap (unique to wire inserts).
Insertion: The coil is loaded onto a mandrel tool, threaded into the hole, and rotated until flush.
Tang Breakage: For inserts with installation tangs, the tang is sheared off once fully seated using a break-off tool.
Post-Installation: The coil radially expands, gripping the base threads tightly.
High-impact/vibration environments: Jet engines, military vehicles, rail systems.
Critical safety systems: Aircraft control mounts, satellite hardware, where loosening is catastrophic.
Corrosive settings: Marine, chemical processing, or semiconductor equipment (using titanium or A286 alloy variants).
Soft materials: Aluminum engine blocks, magnesium housings, plastic fixtures.
Repairing damaged threads: Automotive spark plugs, machinery maintenance.
Cost-sensitive volume production: Electronics, consumer appliances, where tooling costs are justified.
Opt for Keensert when the joint faces extreme vibration, high torque, or safety-critical demands. Its mechanical lock ensures unparalleled retention but sacrifices removability and adds cost.
Choose Helicoil for soft materials, thread repair, or applications needing elasticity. It boosts fatigue life and simplifies maintenance but offers lower ultimate strength.
For engineers, the decision hinges on three factors:
Load dynamics (static vs. vibrational),
Base material properties (soft vs. hard/composite),
Lifecycle needs (permanent vs. serviceable).
Both technologies solve thread-reliability challenges—but through divergent mechanical philosophies: rigid permanence versus elastic resilience.
