An eye nut, also known as a lifting eye nut or hoisting nut, is a specialized fastener designed for lifting, rigging, and securing heavy loads in industrial and mechanical applications. Its unique structure combines a threaded nut with an integrated ring, enabling safe and efficient load handling. Below is a comprehensive overview of its features, materials, applications, and usage guidelines.

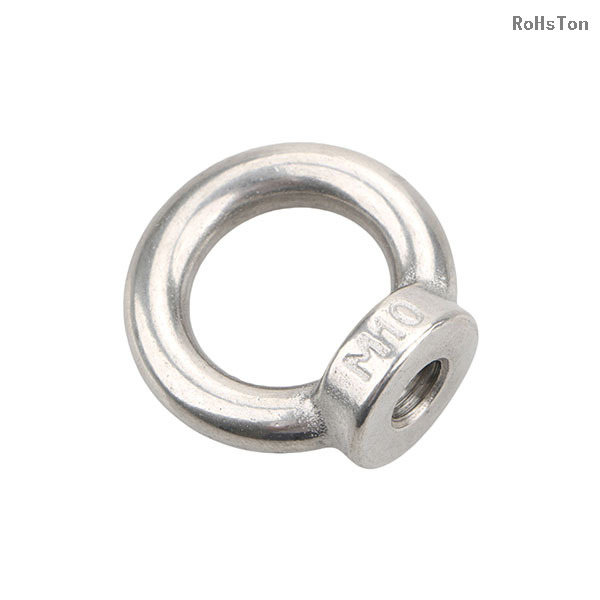

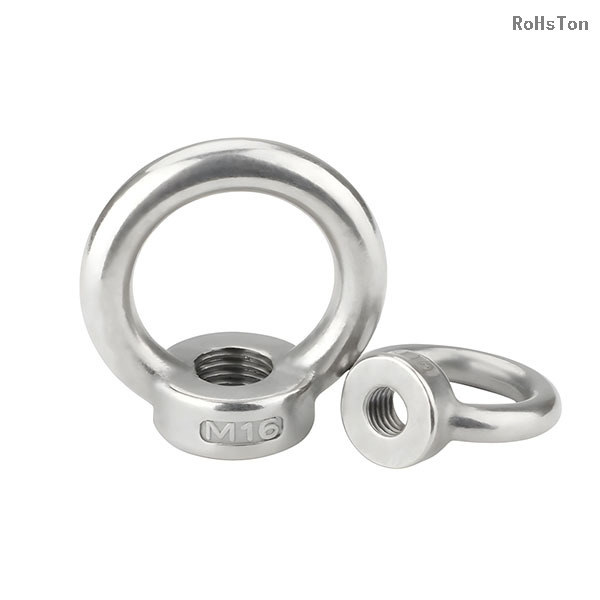

The eye nut is characterized by two main components:
Ring (Eyelet): A circular or oval-shaped loop integrated into the nut, providing a secure attachment point for hooks, cables, or chains.
Threaded Shank: A threaded section that allows the nut to be screwed onto bolts, studs, or other threaded fixtures.
Key structural specifications include:

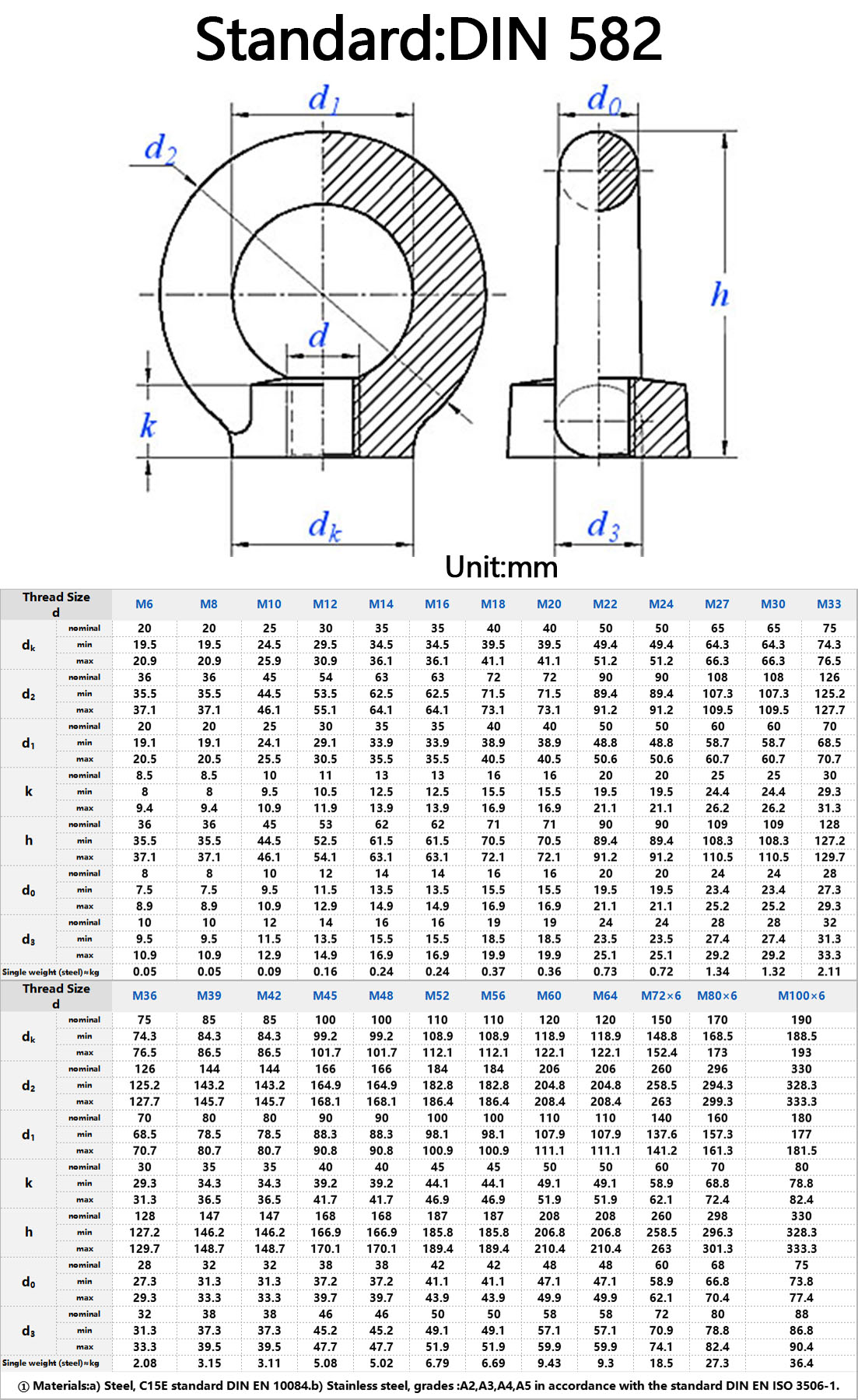

Thread Sizes: Ranging from M6 to M64, with varying dimensions (e.g., diameter, length) tailored to load capacities.
Angular Load Tolerance: Designed to withstand both vertical and angular loads (typically up to 45°), though adjustments like countersinking or using alignment washers may be required for optimal stability.
Eye nuts are engineered for strength and durability:
Primary Materials: High-strength alloy steel (e.g., Q235, 45#), stainless steel, or titanium alloys, chosen for their tensile strength and corrosion resistance.
Manufacturing Process: Forged from a single piece of metal to eliminate weak points, followed by heat treatment (e.g., normalizing) to enhance mechanical properties. The final product undergoes rigorous testing, including magnetic particle inspection and load testing up to 4× the rated capacity.
To improve performance in harsh environments, eye nuts are often coated with:
Galvanization: Electroplated or hot-dip zinc coatings for corrosion resistance.
Passivation or Chroming: Additional layers (e.g., blue/white zinc, black oxide) to prevent rust and wear.
Specialized Coatings: Phosphating or oxidation for enhanced hardness and wear resistance in extreme conditions.
Proper installation is critical for safety:
Select the Correct Size: Match the eye nut’s rated workload (WLL) to the application. For example, an M20 nut can typically handle 0.83–1.2 tons vertically.
Secure Thread Engagement: Tighten the nut fully onto the bolt or stud to prevent loosening under load. Use alignment washers to ensure the ring lies flat.
Avoid Angular Stress: For 45° lifts, reinforce the connection with countersunk holes or spacers to minimize lateral strain.
Inspect Regularly: Discard nuts with visible deformation, cracks, or corrosion.

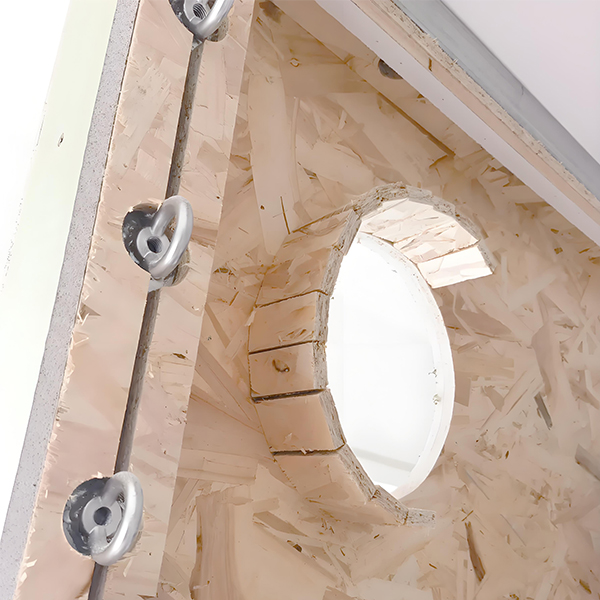

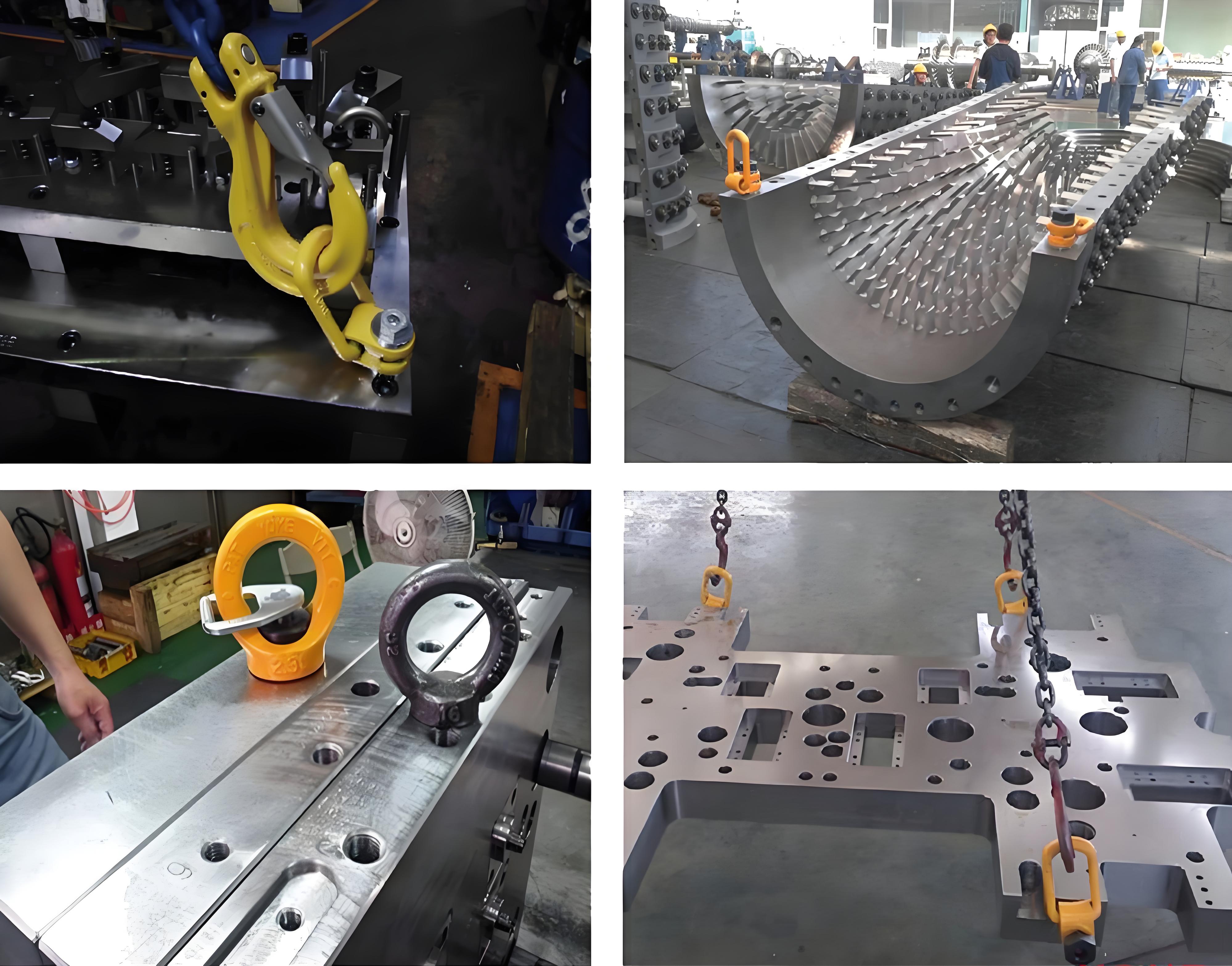

Eye nuts are indispensable in industries requiring heavy lifting or secure anchoring:
Construction: Lifting steel beams, concrete panels, and machinery.
Marine Engineering: Securing anchors, winches, and ship components in corrosive saltwater environments.
Aerospace and Automotive: Assembling and testing large components under controlled loads.
Manufacturing: Mounting industrial equipment, molds, and electrical enclosures.
Versatility: Adjustable length options allow customization for varying load heights.
Ease of Use: Simple installation and compatibility with standard rigging tools.
Durability: High fatigue resistance and long service life, even under repetitive stress.
Eye nuts are a cornerstone of modern industrial rigging, offering reliability, strength, and adaptability. By adhering to material standards, surface treatments, and installation protocols, they ensure safe and efficient operations across diverse sectors. For specialized requirements, RoHsTon offer custom solutions, including hybrid designs for extreme environments.
For detailed technical specifications or industry-specific applications, consult us directly to ensure compliance with safety regulations and load requirements.
