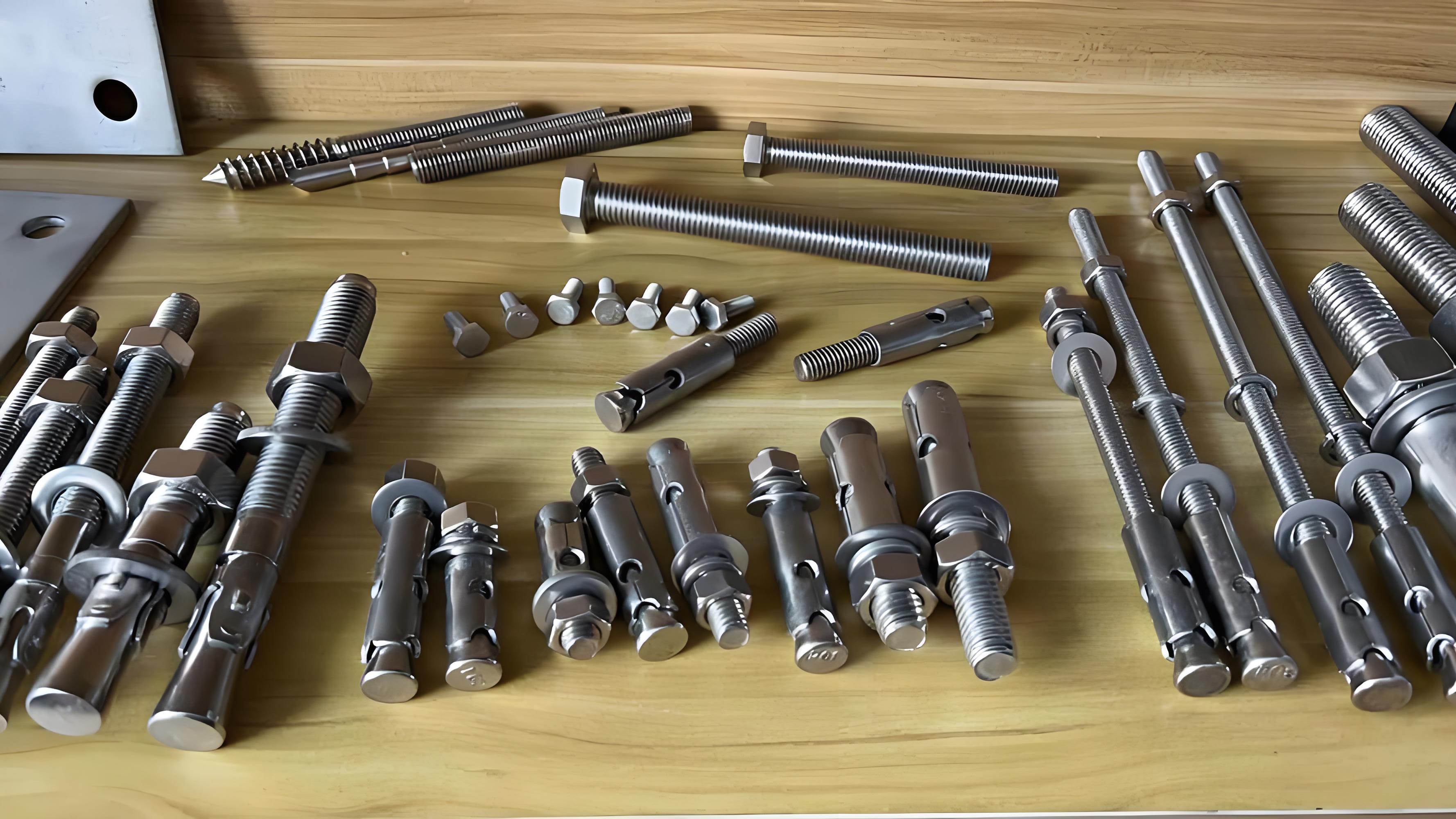

An anchor bolt is a crucial fastener designed to securely connect objects and structures to a solid base material, most commonly concrete, masonry, or stone. Its primary purpose is to transfer various types of loads—including tension (pull-out forces), shear (lateral forces), and a combination of both—from the attached element into the base material. This provides essential stability, safety, and structural integrity to everything from simple wall shelves to massive skyscrapers.
An anchor bolt is a specialized fastener that embeds itself into a base material, creating a strong, fixed connection point. Unlike screws that grip by cutting into wood, anchor bolts rely on mechanical interlock, friction, or chemical bonding to achieve their holding power in hard, brittle materials like concrete. The choice of anchor bolt type depends on the specific load requirements, base material, and installation conditions.
Materials:
Carbon Steel: The most common and cost-effective material, suitable for general-purpose applications indoors or in dry environments. It requires a protective surface coating to prevent corrosion.
Stainless Steel: Grades such as A2 (304) and A4 (316) offer excellent corrosion resistance. They are the preferred choice for outdoor applications, high-humidity environments (like swimming pools), chemical plants, and coastal areas.
Hot-Dipped Galvanized Steel: This process coats carbon steel in a thick layer of zinc, providing superior protection against rust for outdoor and industrial applications.
Sizes/Models:
Anchor bolts are specified by their thread diameter, embedment depth (the length within the base material), and total length. Common metric thread diameters range from M6 (6mm) to M24 and larger. A typical specification might be "M12 x 100," indicating a 12mm diameter and a 100mm total length.
Surface treatments are applied primarily to carbon steel bolts to enhance corrosion resistance and sometimes appearance.
Zinc Plating (Electro-Galvanizing): A thin, bright silver or yellow (from chromate conversion) coating. Suitable for indoor, dry environments.
Hot-Dip Galvanizing (HDG): A thicker, rougher zinc coating that provides long-lasting protection for outdoor and harsh environments.
Mechanical Galvanizing: A zinc coating that offers good corrosion resistance without the risk of hydrogen embrittlement, which can weaken high-strength steel.
Phosphating: A dark grey or black coating that offers minimal corrosion resistance on its own but provides an excellent base for paint or oil to improve friction grip.
Anchor bolts can be broadly categorized into two main types: mechanical and chemical.
1. Mechanical Expansion Anchors:
These rely on physical expansion to grip the base material.

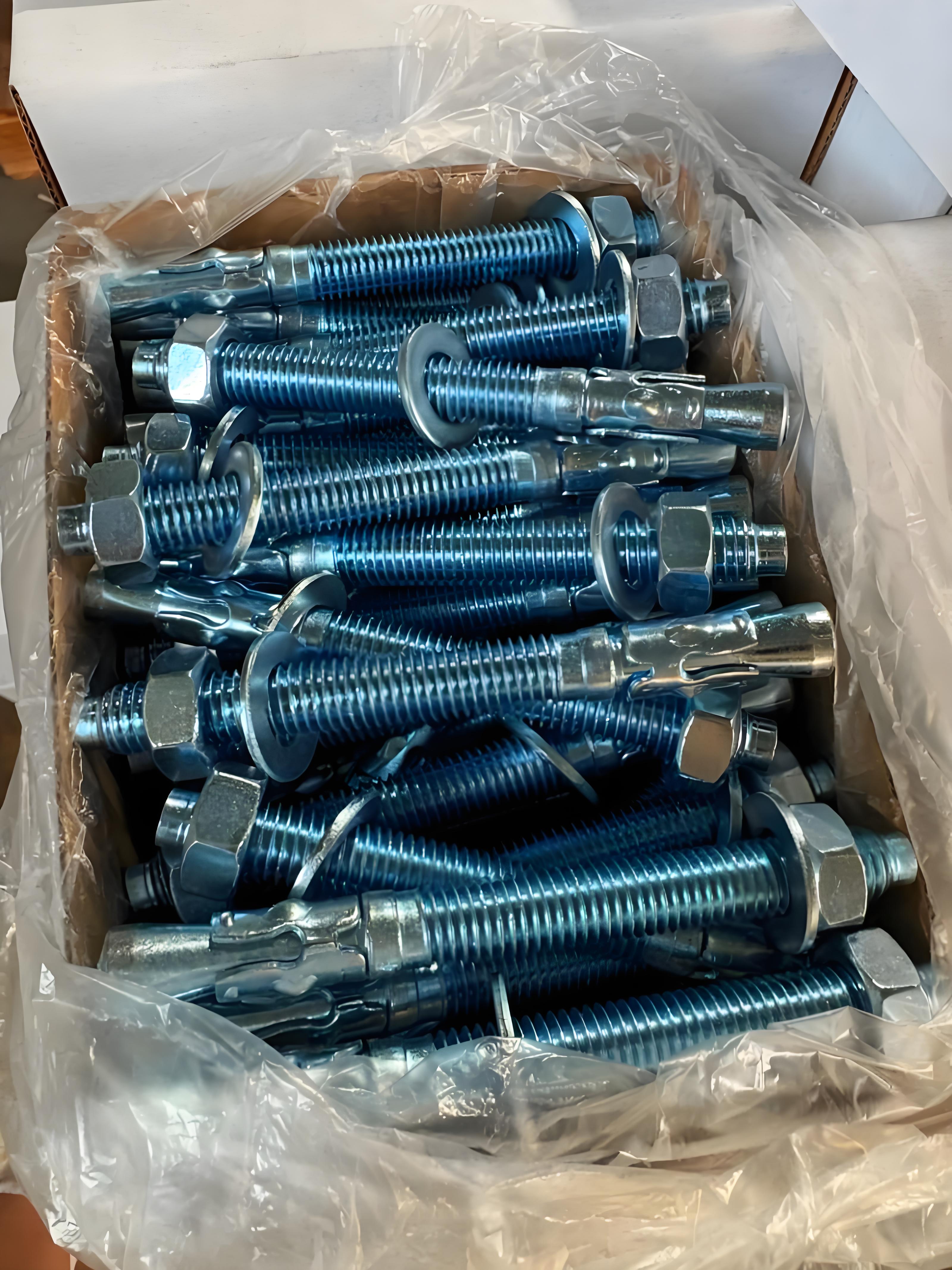

Wedge Anchor: A high-strength anchor where tightening the nut pulls a wedge up a cone, expanding a clip and creating a secure hold. Ideal for heavy loads.

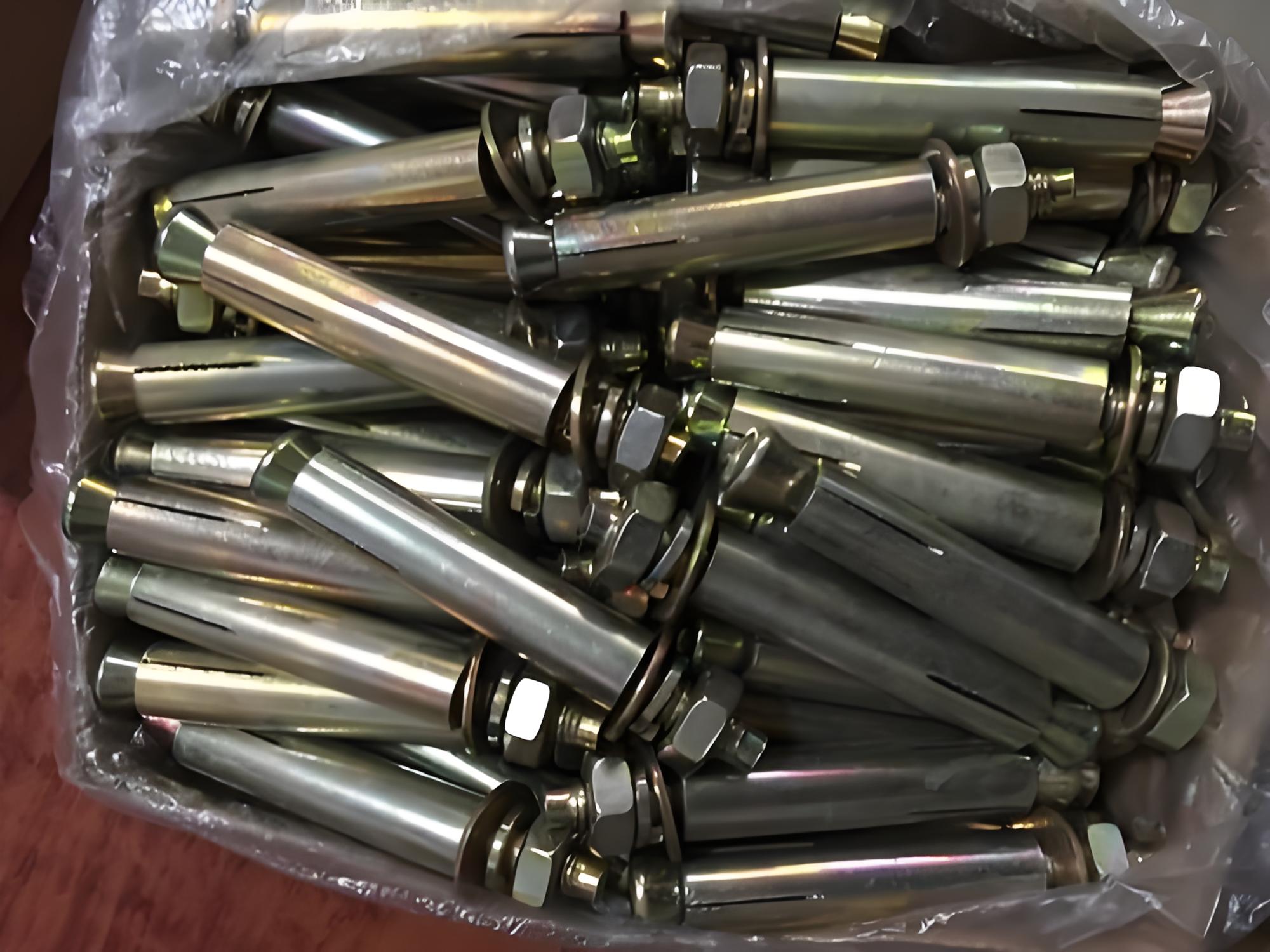

Sleeve Anchor: A versatile anchor consisting of a threaded bolt surrounded by an expandable sleeve. Tightening the nut expands the sleeve. Good for medium-duty applications in concrete, brick, or block.

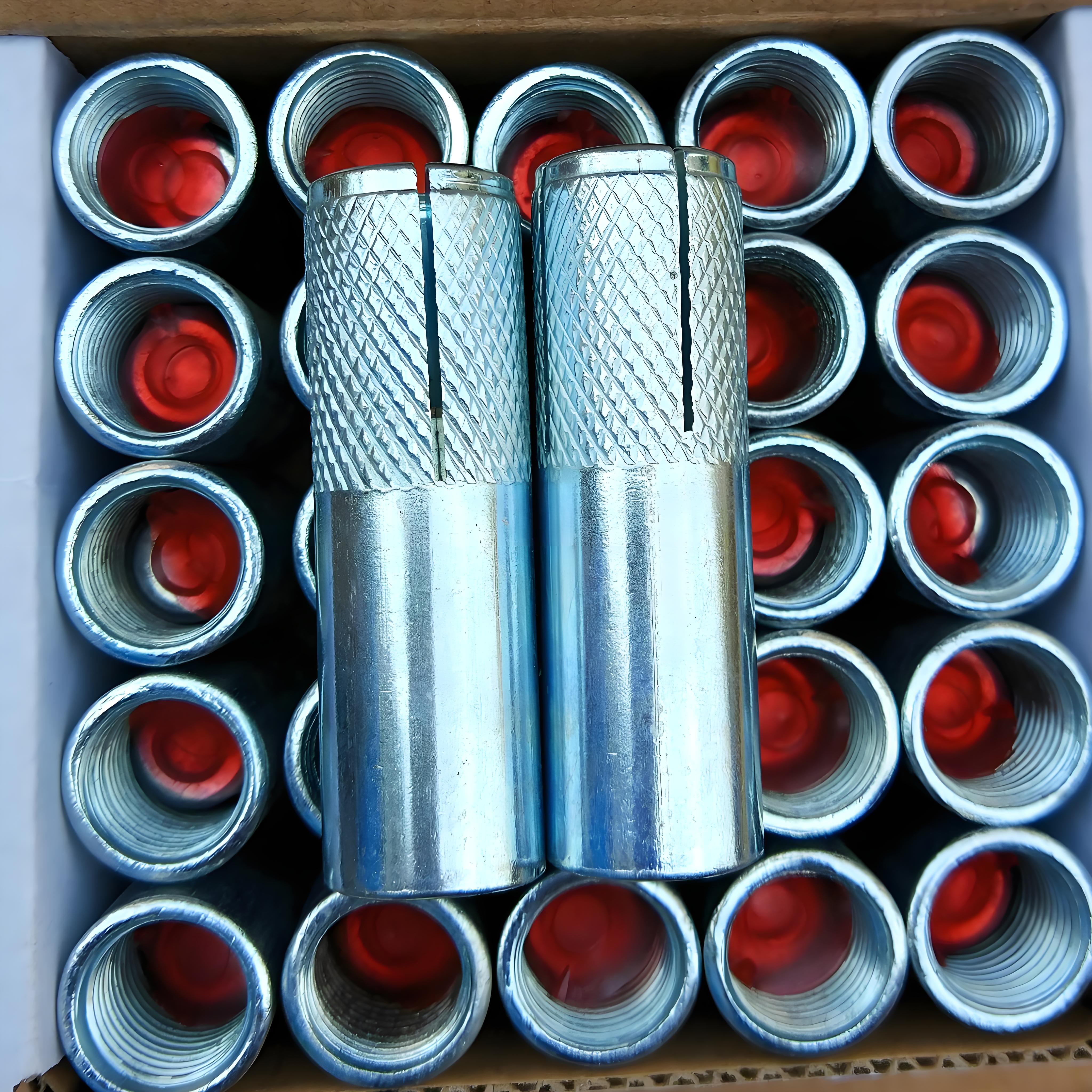

Drop-In Anchor: A female anchor set into concrete using a setting tool. After installation, a threaded rod or bolt is screwed into it, providing a flush-mounted point.

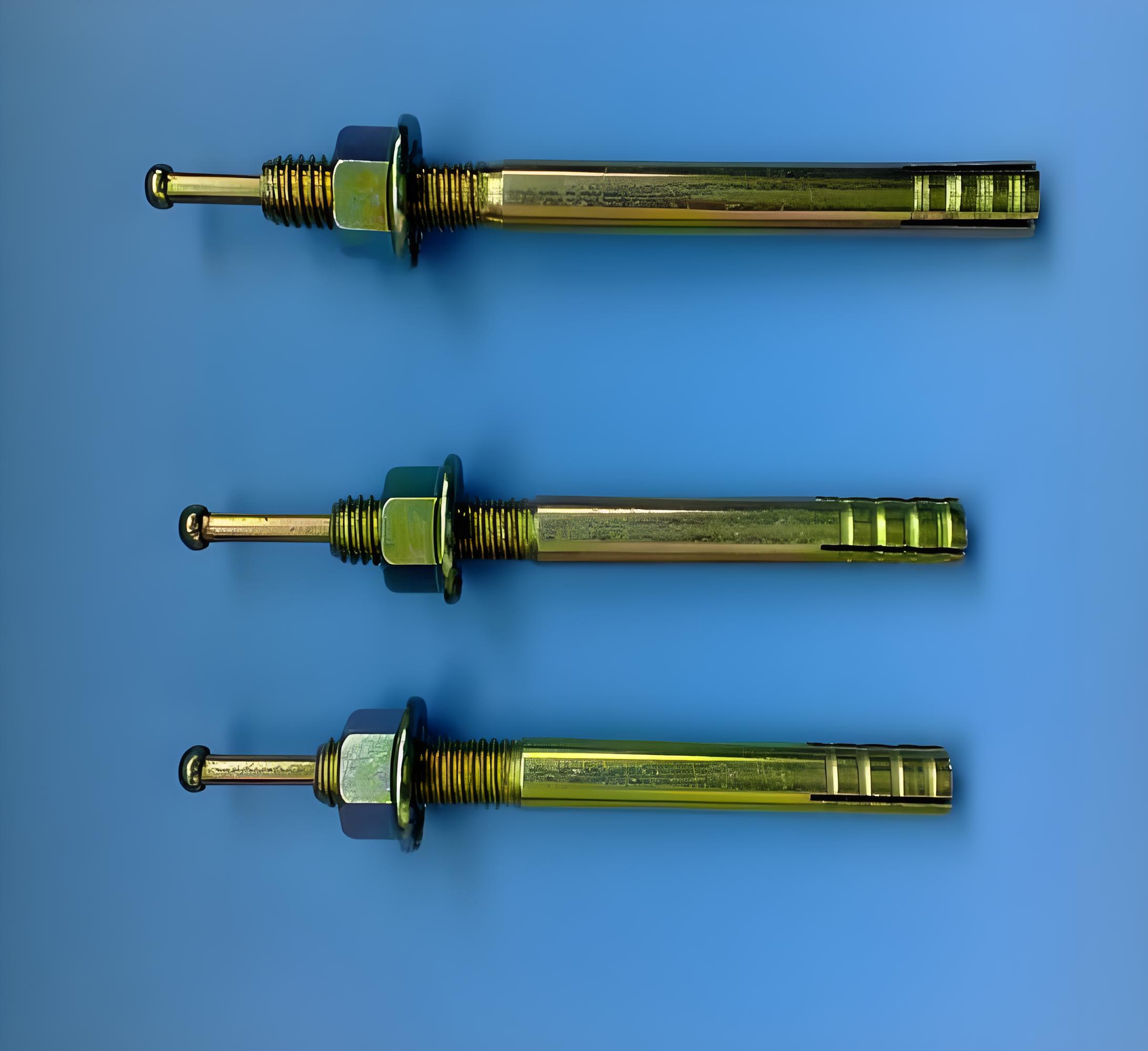

Strike Anchor: Installed by hammering a center pin into the anchor body, causing it to expand. It is then tightened with a nut. Simple and quick to install.

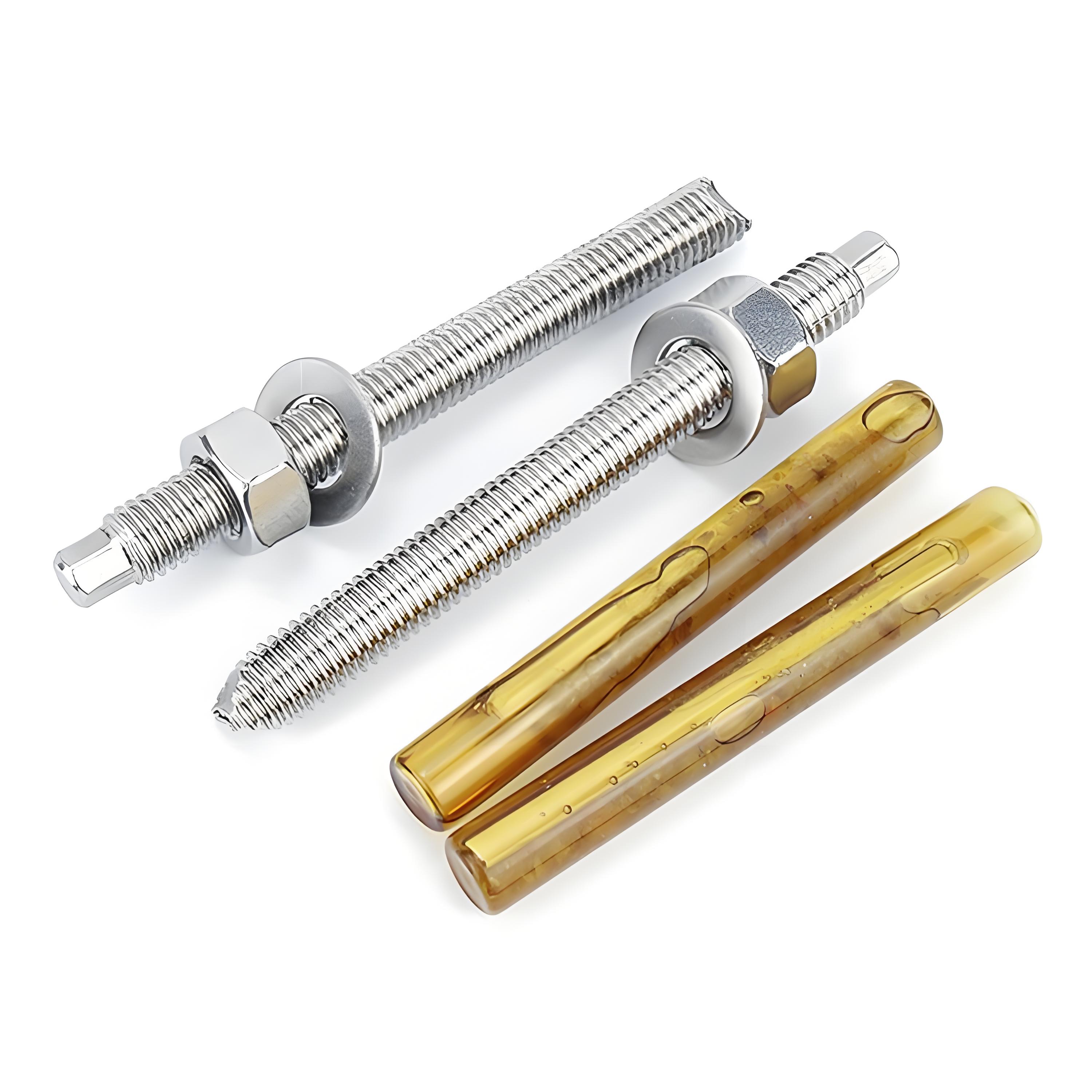

2. Chemical Anchors (Adhesive Anchors):
These use a two-part chemical resin injected into a drilled hole to bond a threaded rod (rebar or all-thread) to the base material.
Advantages: No expansion forces, making them ideal for brittle materials or near edges. Higher load capacities and excellent resistance to vibration. Can be used in wet conditions with the right resin.
Disadvantages: Longer curing time required; hole must be meticulously cleaned.

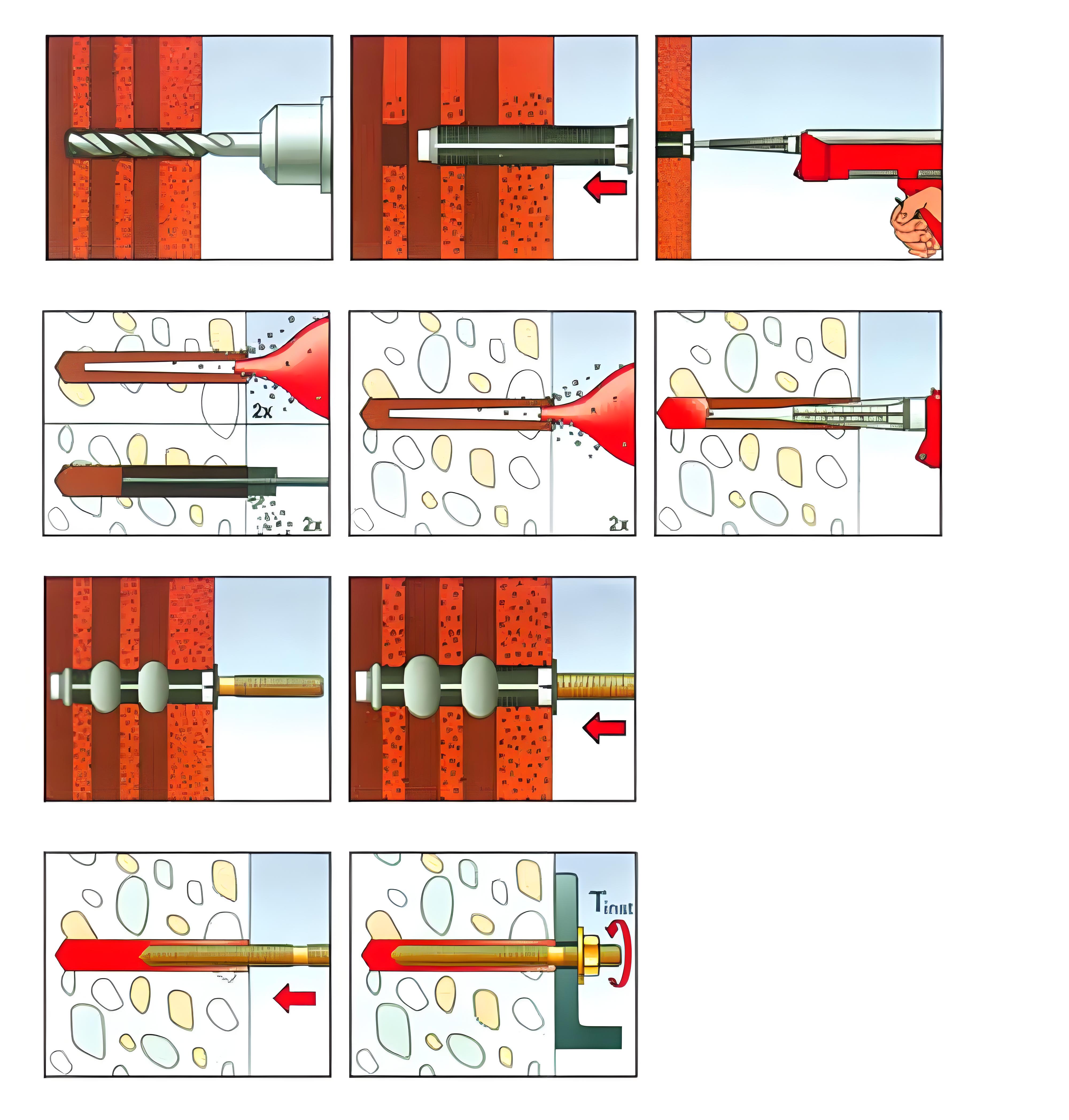

The installation method varies by type, but the general principles for mechanical anchors are:
Marking and Drilling: Mark the exact location and drill a hole into the base material using a hammer drill and a carbide-tipped bit. The hole diameter and depth must match the anchor manufacturer's specifications exactly.
Hole Cleaning: This is a critical step. Use a brush, compressed air, or a vacuum to remove all dust and debris from the hole. A clean hole ensures maximum holding power.
Anchor Installation:
For expansion anchors: Insert the anchor into the hole and tap it lightly if necessary. Tighten the nut with a wrench to the specified torque, which causes the anchor to expand and grip the hole walls.

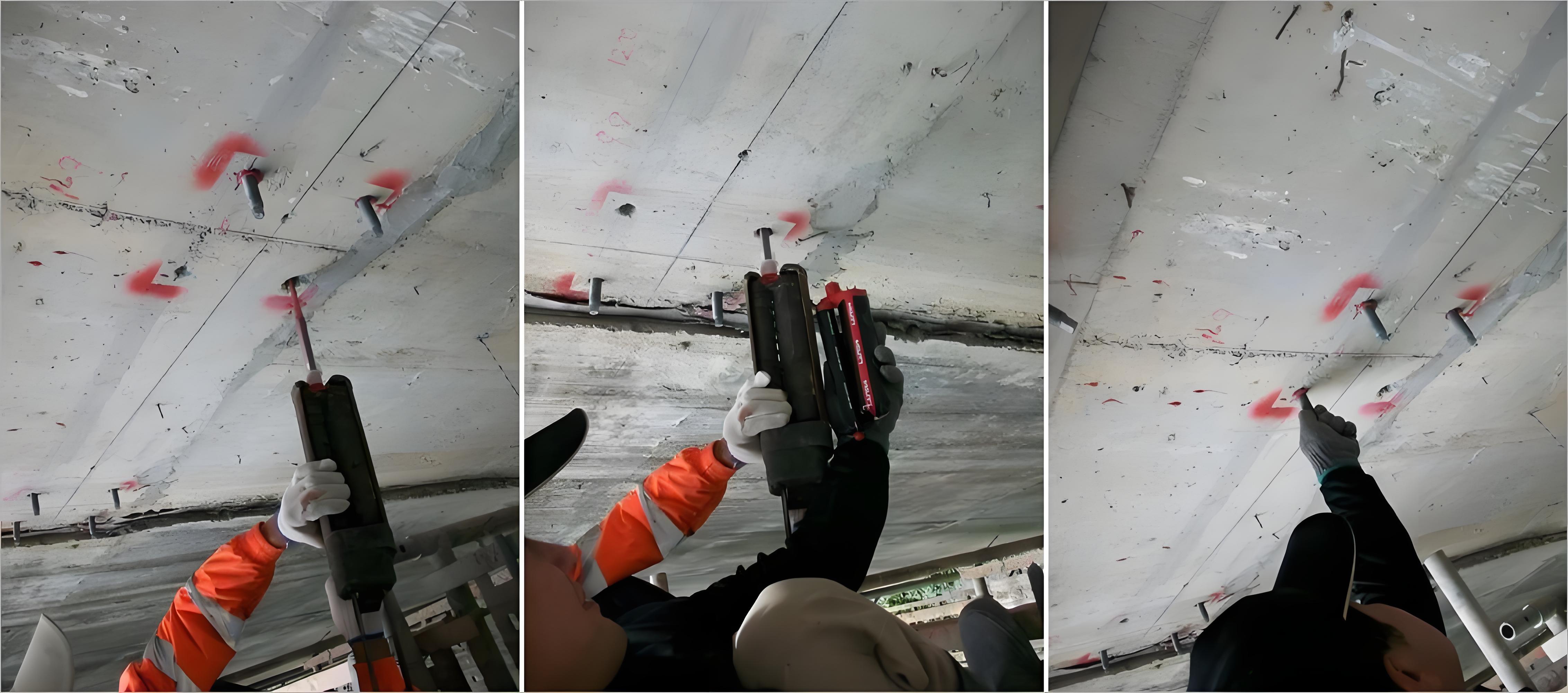

For chemical anchors: Inject the resin cartridge into the hole, insert the threaded rod, and allow it to cure fully before applying any load.
Fastening: Secure the object to be anchored with a nut and washer.
Anchor bolts are fundamental to modern construction and are used in countless scenarios:
Structural Construction: Embedding steel columns, beams, and bridge supports into concrete foundations.
Building Infrastructure: Securing heavy machinery, industrial conveyor systems, and HVAC units to concrete floors.
Civil Engineering: Anchoring guardrails, light poles, and traffic signs to their concrete footings.
Commercial and Residential Use:
Mounting TV brackets and heavy artwork to concrete or masonry walls.
Securing kitchen cabinets and countertops to brick walls.
Installing handrails, staircases, and window frames.
Fixing shed bases and garden structures to concrete slabs.
Critical Applications: Used in seismic zones and for overhead lifting systems, where failure is not an option.
In conclusion, anchor bolts are indispensable components that provide the critical connections ensuring the stability and safety of both everyday objects and monumental structures. Selecting the correct type, material, and size for the specific application is paramount for a secure and lasting installation.
