In the world of construction, manufacturing, and repair, not all bolts and nuts are created equal. Using the wrong one can lead to catastrophic failure. This is where strength grades come in, and "Grade 5" is one of the most common and important classifications for high-strength fasteners, particularly in the United States.
A strength grade (or property class) is a standardized classification system that defines the mechanical properties of a fastener. It tells you how strong the bolt, screw, or nut is—essentially, how much load it can withstand before it breaks ( tensile strength ) or stretches ( yield strength ). This system allows engineers, mechanics, and builders to select the right fastener for the job with confidence.
A Grade 5 fastener is a medium-carbon steel bolt, screw, or stud that has been quenched and tempered (heat-treated) to achieve a specific set of strength properties. According to the SAE J429 standard, which defines grades for imperial (inch) fasteners, a Grade 5 fastener must meet the following minimum requirements:
Tensile Strength: 120,000 psi ( pounds per square inch )
Yield Strength: 92,000 psi
Hardness: Rockwell C25 - C34
Grade 5 fasteners are easily identified by three radial lines on the bolt head. They are stronger than Grades 2 and 5 but are surpassed in strength by Grades 8 and higher.
Manufacturers test fasteners using destructive methods to ensure they meet grade specifications. The two key tests are:
Tensile Test: The fastener is placed in a machine that pulls it apart until it breaks. The machine measures the force required to break it (ultimate tensile strength) and the force at which it permanently stretches (yield strength).
Hardness Test: A device (like a Rockwell or Brinell tester) presses a hard indenter into the fastener's head or shank. The depth or size of the indentation correlates to the material's hardness, which is directly related to its strength.
These tests are performed on sample batches from production runs to guarantee consistency.
Fasteners are marked with symbols on their heads to indicate their grade.
Imperial (SAE Grade) Bolts: The head is marked with radial lines or numbers.
Grade 2: No marks.
Grade 5: Three radial lines.
Grade 8: Six radial lines.
Metric (Property Class) Bolts: The head is marked with a number, such as 4.6, 8.8, 10.9, or 12.9. The number before the decimal point multiplied by 100 gives the approximate tensile strength in MPa (e.g., 10.9 = 1000 MPa tensile strength).

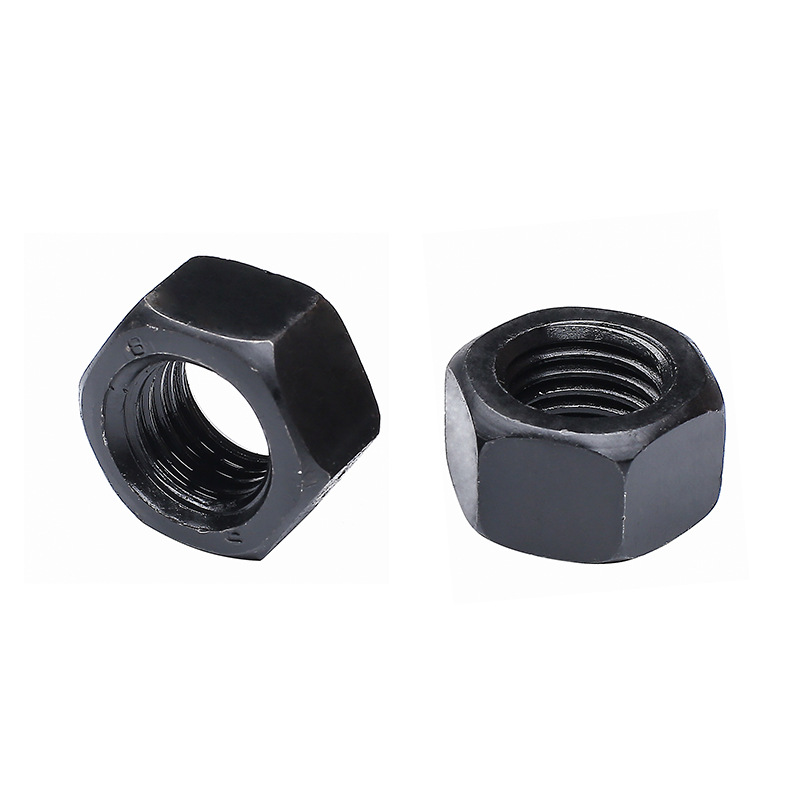

Nuts: Nuts are also graded (e.g., Grade 5 or 8) and often marked with dots or numbers on the bearing face.
Distinguishing between strength grades is critical for three main reasons:
Safety: Using a weak fastener in a high-stress application (like a car's brake caliper or a structural beam) can lead to shearing or stripping, causing equipment damage or personal injury.
Performance: It ensures the fastener can handle the dynamic loads, vibrations, and stresses it will encounter during its service life.
Efficiency and Cost: Using a higher-grade fastener than necessary is often more expensive and offers no benefit. Conversely, using a lower-grade one to save money can be dangerous. The right grade ensures cost-effective and safe design.
Selection should always be based on engineering calculations and specifications. Key factors include:
Application Load: Determine if the load is static, dynamic, or involves shear or tension.
Safety Factor: How much stronger the fastener needs to be than the expected maximum load.
Environmental Conditions: Factors like moisture, chemicals, or extreme temperatures can affect material choice and required strength.
Industry Standards: Many industries (automotive, aerospace, construction) have strict standards dictating which fastener grades must be used for specific applications.
When in doubt, consult the equipment manufacturer's manual or an engineering professional.
No, the marking systems are not universal, but they are matched for performance.
Bolts and Nuts: A nut must be strong enough to allow the bolt to develop its full tensile strength without stripping the threads. Therefore, you must pair a high-grade bolt with a nut of the same or higher grade. For example, a Grade 8 bolt should be used with a Grade 8 nut.
Screws and Studs: They have their own grading systems but follow the same principle of matching strength to the application's demands.
No, the common SAE Grade system (2, 5, 8) is specifically for carbon and alloy steels.
Stainless Steel: Stainless fasteners use a different marking system, often based on their alloy type (e.g., 18-8, 316) and strength class (e.g., A2-70, where 70 represents 700 MPa minimum tensile strength). An A2-70 stainless bolt has similar strength to a Grade 2 SAE bolt, not a Grade 5.
Other Materials: Fasteners made from brass, silicon bronze, or titanium have their own unique property ratings and are not part of the SAE grading system.
Grade 2 (Low Carbon Steel): General purpose applications with low stress, such as fastening wood panels or low-load brackets.
Grade 5 (Medium Carbon Steel, Quenched & Tempered): The workhorse of high-strength fasteners. Used in automotive applications (engine brackets, suspension components), agricultural machinery, and structural frameworks.
Grade 8 (Medium Carbon Alloy Steel, Quenched & Tempered): For high-stress applications. Used in high-performance automotive (connecting rods, drivetrain), heavy-duty machinery, and demanding structural systems.
Metric 8.8: Roughly equivalent to SAE Grade 5. A very common general-purpose high-strength metric bolt.
Metric 10.9: Roughly equivalent to SAE Grade 8. Used in high-performance automotive and industrial applications.
In conclusion, a Grade 5 fastener is a specific, heat-treated, high-strength component marked with three lines. Understanding strength grades is not just technical jargon—it is a fundamental aspect of engineering that ensures the safety, reliability, and integrity of everything we build. Always choose the grade specified for your project.
