In the vast world of hardware, construction, manufacturing, and DIY, fasteners are the fundamental, often unsung heroes that hold our world together. Simply put, a fastener is a hardware device that mechanically joins or affixes two or more objects together. They are essential components in creating secure, non-permanent (and sometimes permanent) connections across countless applications, from assembling furniture and building houses to constructing airplanes and bridges.
Why are Fasteners Important?
Structural Integrity: They provide the strength and stability needed for structures and assemblies to withstand forces like tension, compression, and shear.
Disassembly & Maintenance: Most fasteners allow for relatively easy disassembly and reassembly, crucial for repairs, modifications, and component replacement.
Precision & Alignment: They ensure parts are held together in the correct position and alignment.
Versatility: Available in an immense variety of types, sizes, materials, and strengths to suit virtually any application.
Efficiency: Enable rapid and efficient assembly processes in manufacturing and construction.
Common Types of Fasteners:
The fastener universe is incredibly diverse, but they can be broadly categorized into two main groups:
Threaded Fasteners: These utilize helical threads (spiral ridges) to create a clamping force when tightened.

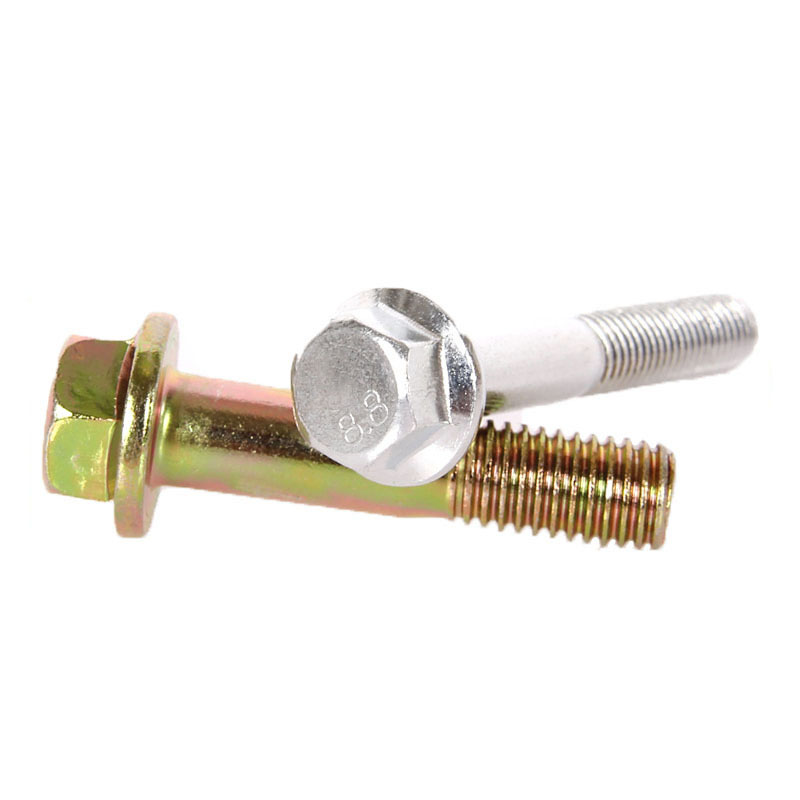

Bolts: Typically used with a nut. They have a head on one end and an external thread along the shaft. They pass through pre-drilled holes in the materials being joined. Common head styles include hex, square, and flange.
Screws: Generally create their own thread as they are driven into a material (like wood or plastic) or into a pre-tapped hole (a hole with matching internal threads). They often don't require a separate nut. Types include:
Wood Screws: Coarse threads for gripping wood.
Machine Screws: Finer threads, designed to fit into nuts or tapped holes in metal.
Sheet Metal Screws: Sharp points and threads for piercing and gripping thin metal.
Self-Drilling Screws (Tek Screws): Have a drill bit-like point, eliminating the need for a pre-drilled hole in metal.

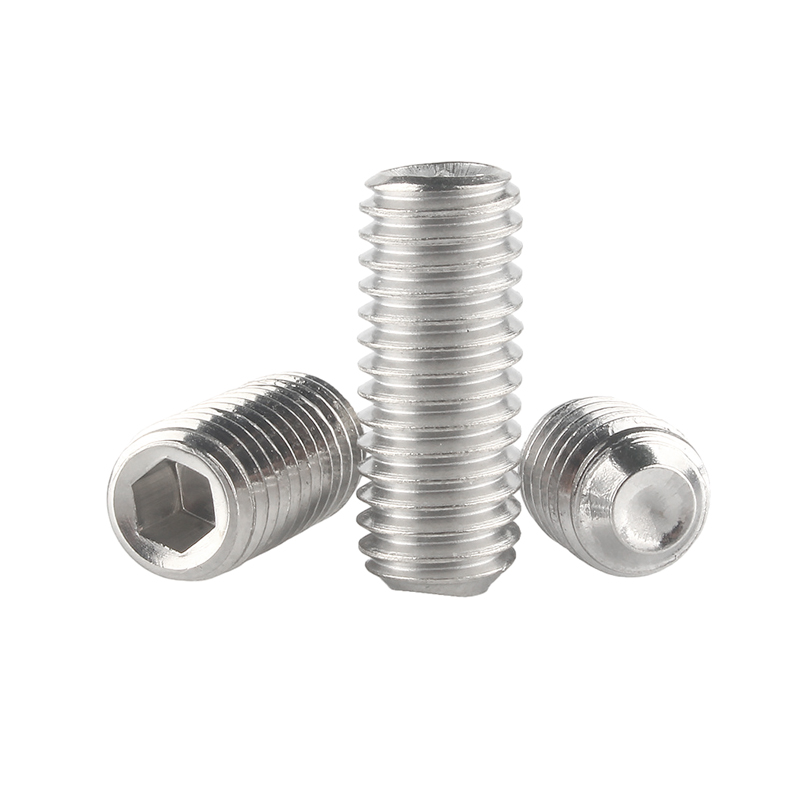

Set Screws: Headless screws used to secure an object within or against another object (e.g., a pulley on a shaft). Often use hex sockets (Allen) or other drives.
Nuts: Hexagonal (most common), square, wing, or flanged internally threaded components that pair with bolts or screws. Locknuts have features to prevent loosening.
Studs: Rods threaded on both ends. One end is screwed permanently into a tapped hole, the other end protrudes to accept a nut for attaching another component.
Washers: Flat rings (plain washers) used under the head of a bolt/nut or a screw to distribute load, prevent damage to surfaces, or act as a spacer. Lock washers (split, tooth) help prevent loosening.
Non-Threaded Fasteners: These rely on other mechanisms besides threads for joining.
Dowel Pins: Precision pins for accurate alignment.
Cotter Pins: Bent metal pins inserted through holes and bent open to secure nuts on bolts or clevis pins.
Clevis Pins: Pins with a head at one end and a hole at the other for a cotter pin, used with shackles.
Roll Pins (Spring Pins): Hollow, slotted cylinders that compress when inserted, applying outward pressure to hold parts securely.
Rivets: Permanent fasteners. A rivet is inserted into a hole, and its tail end is deformed (bucked or pulled) to create a second head, clamping the materials. Types include solid, blind (pop), and tubular rivets. Widely used in aerospace and sheet metal.
Pins: Straight cylindrical pieces that fit into holes to align parts or prevent relative movement.

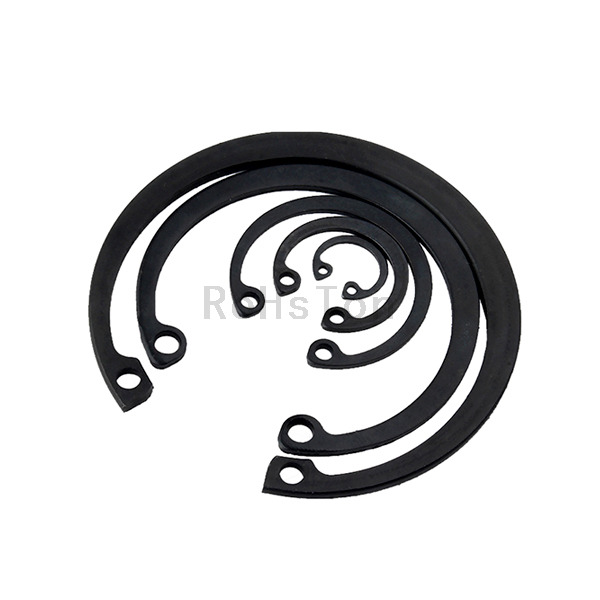

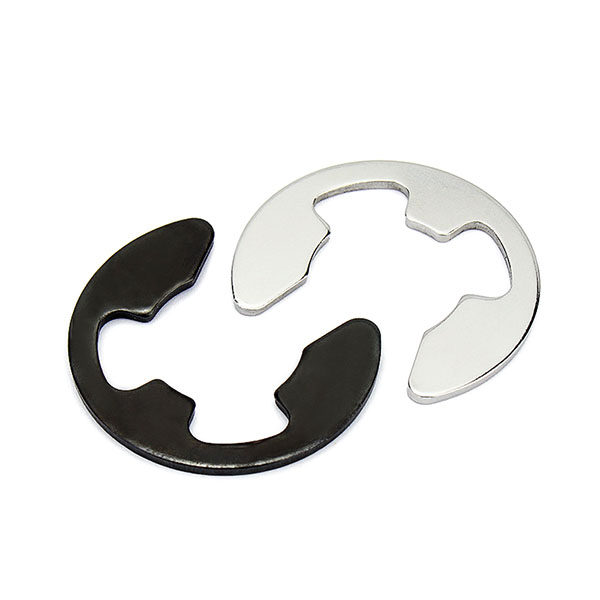

Clips & Retainers: Snap rings (circlips), E-rings, and retaining rings fit into grooves on shafts or in bores to hold components in place axially.
Nails: Pointed metal pins driven with a hammer primarily into wood. Offer speed but less holding power and disassembly capability compared to screws. Many types exist (common, finishing, roofing, etc.).
Anchors: Devices inserted into materials like concrete, brick, or drywall that expand when a screw is inserted, creating a secure hold where a standard screw wouldn't work.
Key Fastener Features & Materials:
Drive Type: The shape in the head that accepts a driving tool: Slotted, Phillips, Pozidriv, Robertson (Square), Torx (Star), Hex (Allen), Socket, etc. Torx is increasingly popular for its resistance to cam-out (slipping).
Head Style: Determines appearance, tool engagement, and bearing surface: Flat, Pan, Round, Truss, Button, Socket Cap, Hex, etc.
Material: Chosen based on strength, corrosion resistance, and cost.
Steel: Most common (various grades like Grade 2, 5, 8 for strength).
Stainless Steel: Excellent corrosion resistance (Grades 304, 316).
Brass/Bronze: Good corrosion resistance, non-magnetic, decorative.
Aluminum: Lightweight, moderate strength, good corrosion resistance.
Titanium: Very high strength-to-weight ratio, excellent corrosion resistance, expensive.
Nylon/Plastic: Lightweight, corrosion-proof, electrically insulating, lower strength.
Coatings/Platings: Applied to enhance corrosion resistance and sometimes appearance: Zinc (galvanized), Cadmium (less common now), Chrome, Nickel, Black Oxide, Phosphate, Dacromet.
In Conclusion:
Fasteners are the indispensable mechanical glue of our built environment. Understanding what they are – devices designed to create secure joints – and knowing the vast array of types available (from simple nails and wood screws to high-strength bolts and specialized rivets) is crucial for anyone involved in building, repairing, or manufacturing. Selecting the right fastener involves considering the materials being joined, the required strength, environmental conditions (like corrosion), the need for disassembly, and installation method. The humble fastener, in all its diverse forms, truly keeps the wheels of industry and our everyday lives turning.
