Imagine a stripped spark plug hole in an engine block, a critical threaded connection in an aircraft component worn beyond use, or soft aluminum threads in a motorcycle casing failing under vibration. In each case, the seemingly humble Heli-Coil (a widely recognized brand name often used generically for wire thread inserts) steps in as the indispensable repair and reinforcement solution. Its core function is to restore, reinforce, and create durable, reliable internal threads where the original threads are damaged, weak, or non-existent.

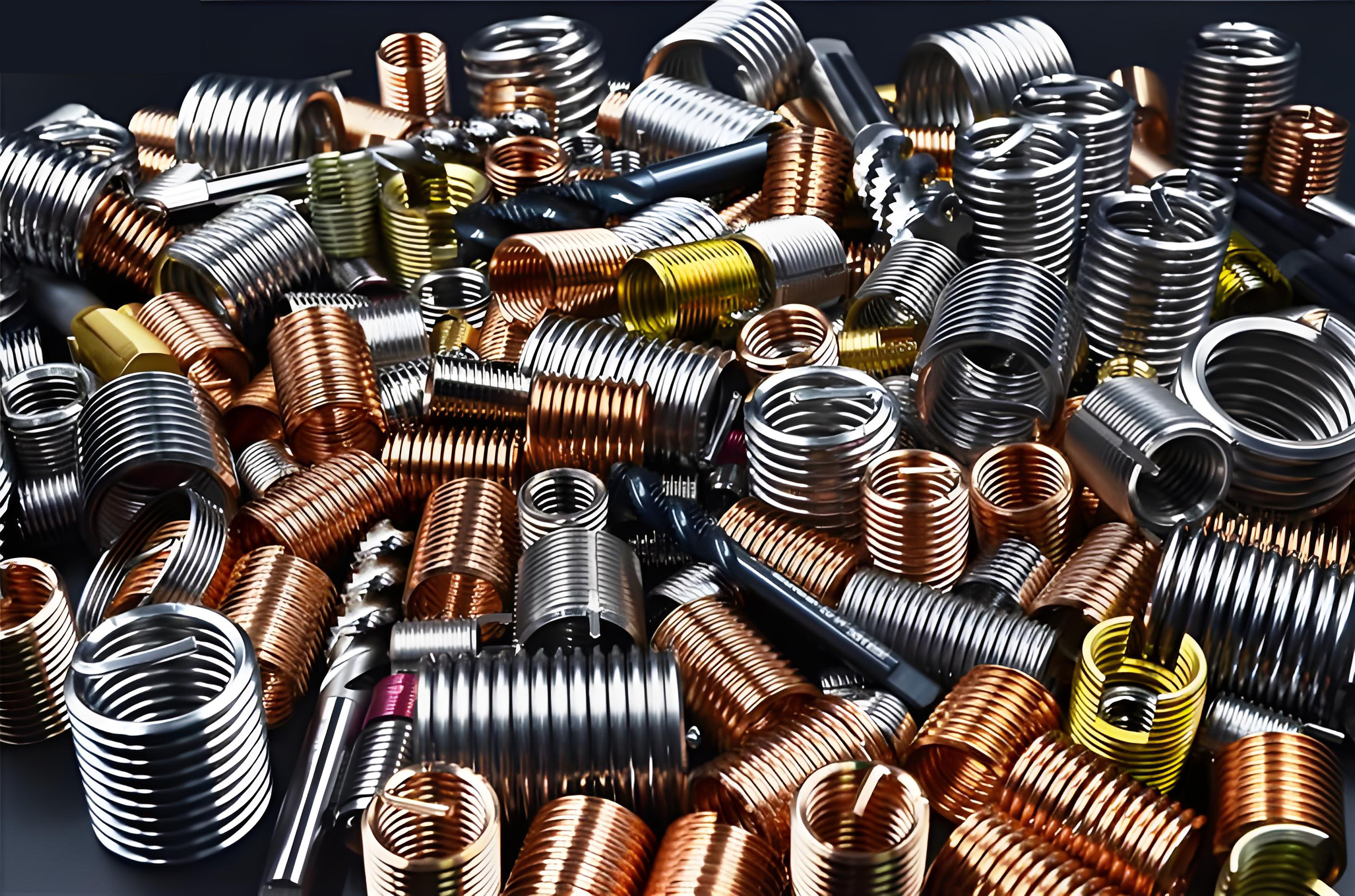

At its heart, a Heli-Coil is a precision-formed coil of spring-tempered wire, shaped into a diamond cross-section. This unique shape creates the functional equivalent of internal screw threads when installed into a specifically prepared hole. It acts as a permanent, wear-resistant sleeve within which a standard bolt or screw can be securely fastened.
Shape: A tightly wound helical coil, resembling a small spring designed specifically for threads.
Cross-Section: The defining feature is its diamond-shaped wire profile. This shape provides:
Multiple Bearing Surfaces: The diamond points create multiple contact points with both the parent material of the hole and the external threads of the screw, distributing load efficiently.
Spring Action: The coil inherently possesses spring-like properties, allowing it to absorb vibration and shock, reducing the risk of loosening.
Locking Action (in specific types): The geometry inherently resists the unscrewing forces generated by vibration.
Tang: One end typically features a short, protruding straight section (the tang or driver tang), used by the installation tool to drive the insert into the hole. This tang is designed to be broken off flush with the top of the insert after installation.
Sizing: Inserts are manufactured to precise standards (like DIN/ISO) for all common thread sizes (metric and imperial) and lengths.
The choice of material depends on the application requirements (strength, corrosion resistance, temperature, compatibility):
Stainless Steel (e.g., 18-8, 304, 316): The most common choice. Offers excellent corrosion resistance, good strength, and durability. Type 316 offers superior corrosion resistance for marine or chemical environments.
Carbon Steel: Used for high-strength applications where corrosion is less critical. Often coated (see below).

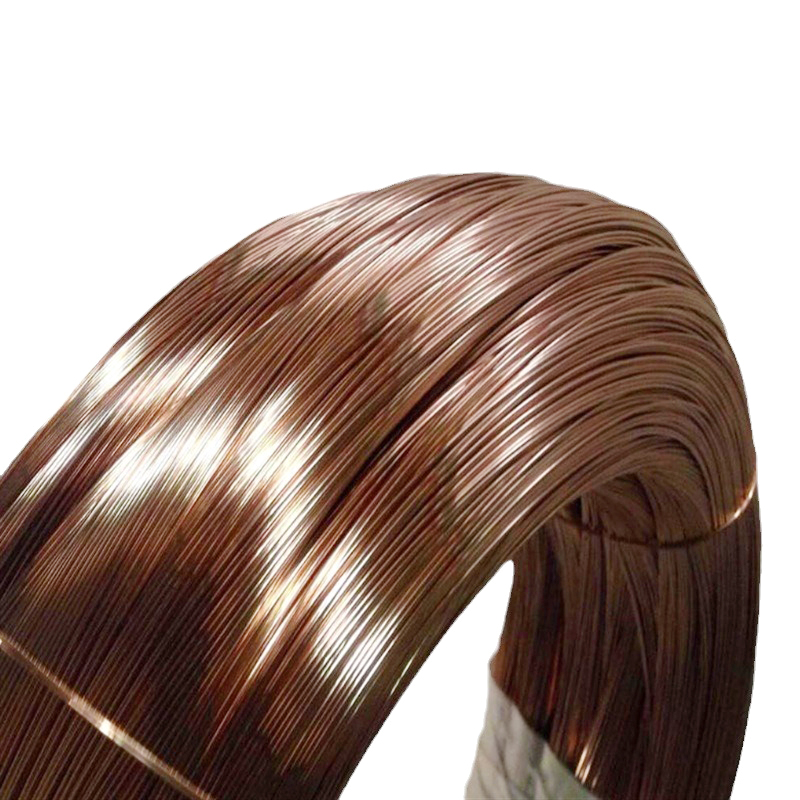

Phosphor Bronze: Used for its excellent corrosion resistance (especially against salt water), good fatigue strength, electrical conductivity, and compatibility with dissimilar metals (reduces galvanic corrosion). Common in marine, electrical, and aerospace applications.
High-Temperature Alloys (e.g., Inconel): Used in extreme temperature environments like jet engines or exhaust systems.
Non-Ferrous Alloys (e.g., Aluminum Bronze): Used for specific corrosion resistance or anti-galling properties.
Coatings enhance performance or compatibility:
PTFE (Teflon) Impregnation/Coating: Reduces friction, provides lubrication (often for stainless inserts), offers mild corrosion resistance, and prevents galling/seizing, especially with stainless fasteners. Common in assembly line applications.
Dry Film Lubricants (e.g., Molybdenum Disulfide - MoS2): Similar benefits to PTFE, reducing friction and preventing seizing.
Silver Plating: Primarily used on inserts for high-temperature applications (e.g., aerospace) to provide lubrication during installation and operation in extreme heat.
Cadmium Plating (less common now): Historically used on carbon steel for corrosion resistance and lubricity, but environmental concerns have reduced its use.
Passivation (Stainless Steel): A chemical process to enhance the natural corrosion resistance of stainless steel by removing free iron from the surface.
Thread Repair: The primary use. Salvaging expensive castings (engine blocks, cylinder heads, transmission cases, pump housings) or critical components where threads are stripped, worn, or damaged.
Reinforcing Weak Materials: Providing strong, durable threads in soft materials prone to stripping or wear, such as aluminum, magnesium, plastics, and composites (common in automotive, aerospace, electronics).
Improving Thread Life: Extending the service life of threads subjected to frequent assembly/disassembly or high wear.
Design Enhancement: Used proactively in new designs to ensure thread integrity in critical locations or soft materials, improving reliability and serviceability.
Dissimilar Metal Joining: Reducing the risk of galvanic corrosion between the fastener and the parent material by using a compatible insert material.
Vibration Resistance: The spring action of the coil helps absorb vibration, significantly reducing the likelihood of bolts loosening.
Torque Transmission: Providing a more uniform distribution of clamping force compared to direct threads in soft materials.
The two main functional classifications are:
Free-Running Inserts (STI - Screw Thread Inserts): Designed to allow the screw to turn freely within the insert once installed. Used for standard bolted joints where no locking is required beyond the friction of the tightened screw. Common for repair and reinforcement.
Screw Locking Inserts (SBI - Screw Locking Inserts): Designed with a specific geometry (often a modified diamond shape or slight deformation) that creates friction against the screw threads, providing a prevailing torque locking action. Used in applications where vibration-induced loosening is a major concern (e.g., engines, aerospace, machinery).
Both types are also classified by thread size (e.g., M6x1.0, 1/4"-20), length, and material.
Installing a Heli-Coil requires specific tools and steps:
Drill: Drill out the damaged or undersized hole to a specific, larger diameter specified for the insert size.
Tap: Tap the newly drilled hole using a special Heli-Coil tap (with a larger pitch than a standard tap). This creates the internal threads that will receive the insert coil.
Insert: Place the Heli-Coil insert onto the appropriate installation mandrel/tool. Screw the insert into the newly tapped hole using the mandrel until the insert's top is slightly below the surface (usually 0.5-1.5 pitches).
Break Tang: Use the tang break-off tool (usually part of the mandrel) to snap off the driver tang. Remove the tang piece and the mandrel.
Verify: Run the mating screw into the new insert to verify smooth operation and proper engagement. The screw should engage smoothly without cross-threading.
Far more than just a simple thread repair kit, the Heli-Coil wire thread insert is a sophisticated engineered fastener solution. Its unique diamond-coil spring design transforms damaged or weak threaded holes into durable, high-strength, and often vibration-resistant connections. By distributing load efficiently, resisting wear, accommodating thermal expansion, and mitigating corrosion issues, Heli-Coils save components from scrap, extend equipment life, enhance the design of new products, and ensure critical fastenings remain secure. Whether rescuing a stripped engine thread or reinforcing delicate threads in an aerospace component, the Heli-Coil is an essential industrial savior and performance enhancer.
