In the world of fasteners and hardware, few components are as ingeniously simple and widely useful as the cage nut. If you've ever assembled server racks, network cabinets, or even certain types of furniture, you've likely encountered one. But what exactly is its purpose?
Simply put, a cage nut is a threaded fastener designed to provide a strong, reusable thread into sheet metal or other thin materials where it would be impossible or impractical to tap a thread directly. It allows for the secure attachment of components to thin panels, making it a cornerstone of modern electronics, telecommunications, and industrial equipment mounting.

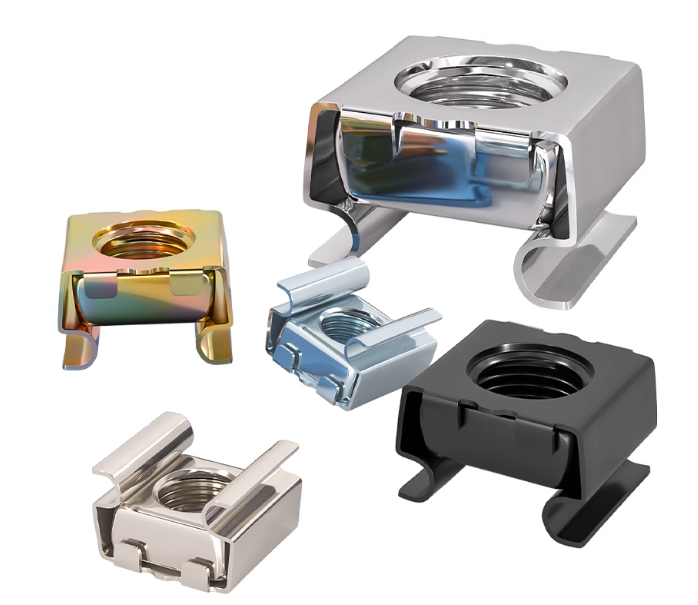

A cage nut (also known as a caged nut, clip nut, or captive nut) is not just a single piece of metal. It is an assembly consisting of a square nut (the most common type) securely held within a spring steel cage. This cage features two or four prongs that act as legs. When installed, these prongs compress and then spring back, locking the entire assembly firmly into a square hole in a metal panel. The nut inside the cage is free to float slightly, which allows for minor misalignment during installation of the mating bolt.
The design of a cage nut is its key advantage:

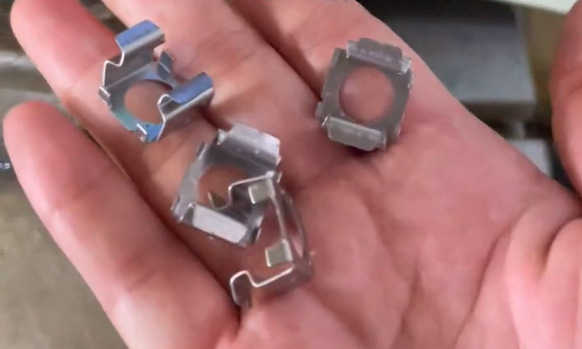

The Cage: Made from spring steel, it is the mechanism that provides the gripping force. It typically has:
Retaining Wings/Prongs: These are the springy legs that compress when pushed into a panel and then snap back to clamp onto the backside of the panel.
A Surrounding Frame: This frame holds the nut and prevents it from rotating when a bolt is tightened.

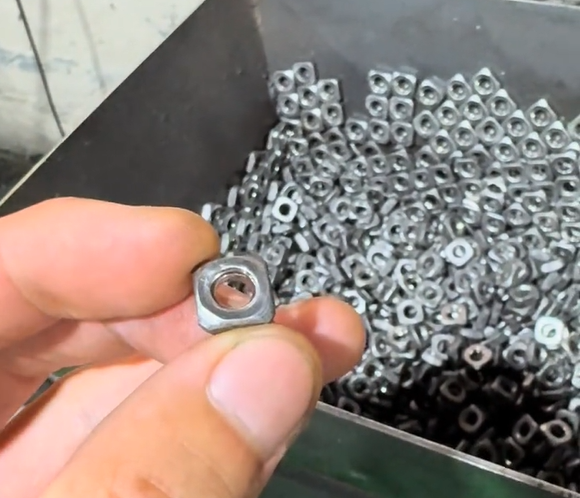

The Nut: A standard square nut is most common, but hexagonal or round nuts can also be used. It is loosely captured within the cage, allowing for the aforementioned float. The nut size defines the thread of the cage nut (e.g., M6, 10-32, 1/4"-20).
The choice of material depends on the required strength, corrosion resistance, and application environment.
Steel (Carbon Steel): The most common and economical material. Offers high strength and is suitable for most general-purpose applications.
Stainless Steel (often 304 or 316 grade): Used in environments where corrosion resistance is critical, such as in marine applications, food processing, pharmaceuticals, or outdoor equipment. 316 offers superior resistance to chemicals and saltwater.
Brass: Occasionally used for its corrosion resistance and non-magnetic properties, often in specialized electrical or marine applications.
Surface treatments are applied to enhance appearance, add a protective layer, or improve corrosion resistance.
Zinc Plating (Electroplating): The most common finish. It provides a shiny, silver-like appearance and good corrosion resistance. Often accompanied by a clear or blue chromate conversion coating (iridescent yellow or blue) for enhanced protection.
Phosphate Coating (Parkerizing): A dark grey or black coating that provides good corrosion resistance and is an excellent base for holding oil, which further prevents rust.
Geomet® (Mechanical Zinc Plating): A thicker, dull grey zinc coating that offers superior corrosion resistance compared to standard electroplated zinc, especially in harsh environments.
Black Oxide: Provides a mild corrosion resistance and a clean, black finish. Mainly for appearance and to minimize light reflection.
Cage nuts are standardized to fit into specific square hole sizes. The most common thread sizes include:
Metric: M4, M5, M6 (extremely common in server racks), M8.
Unified Thread Standard (UTS): #10-32, 1/4"-20, 5/16"-18, 3/8"-16. The #10-32 and 1/4"-20 are the North American standards for electronic equipment racks.
The cage nut is always chosen to match the square hole size in the rack or panel, which is itself standardized to the thread size (e.g., a 1/4"-20 cage nut fits a 1/4" square hole).
Selecting the correct cage nut involves a few key considerations:
Panel Thickness: Ensure the cage nut is rated for the thickness of your sheet metal. Standard racks are typically 1.5mm to 2.5mm thick.
Thread Size and Type: Match the thread (e.g., M6, 10-32) to the bolts you will be using.
Material and Finish: Choose a material (steel, stainless steel) and finish (zinc, phosphating) that suits your environment to prevent corrosion and ensure longevity.
Hole Size: Confirm that the cage nut is designed for the square hole size in your equipment rack or panel.

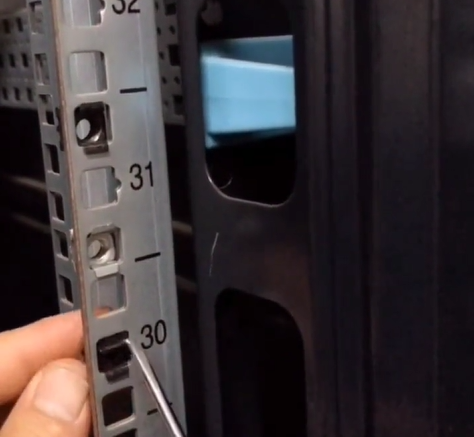

Installing a cage nut is a tool-free and straightforward process:
Align: Position the cage nut over the square hole in the panel. The prongs should be facing the direction you want to install from (typically from the front of the rack).
Push: Using your thumb or finger, press firmly on the nut itself. The spring prongs will compress as they pass through the hole.
Snap Into Place: Once fully inserted, the prongs will snap back to their original shape behind the panel, locking the cage nut securely in place. You should hear an audible "click."
To Remove: Insert a flat-head screwdriver or a dedicated cage nut tool between the cage and the panel. Gently pry and twist to compress the prongs again, allowing you to pull the nut out.
The primary application of cage nuts is in the information technology and telecommunications industries.
Server Racks and Network Cabinets: This is their most famous use. They provide the threaded holes for mounting servers, switches, routers, patch panels, and shelving into the vertical mounting rails (with square holes) of the rack.
Industrial Electronics Enclosures: Used to mount control panels, PLCs, power supplies, and other equipment inside large enclosures.
Audio/Video Equipment Racks: For mounting amplifiers, mixers, and other broadcast or studio gear.
Furniture Assembly: Some high-end or industrial-style furniture uses cage nuts for a strong, hidden fastening method.
Automotive and Aerospace: Used in avionics bays and vehicle control systems for secure mounting in thin panels.
In conclusion, the humble cage nut is a brilliantly simple solution to a common engineering challenge. By combining a floating nut with a spring-loaded cage, it delivers strong, reliable, and adjustable threading to thin materials, proving itself to be an indispensable component in building the infrastructure of our modern digital world.
