What Can I Use Instead of A Carriage Bolt ?

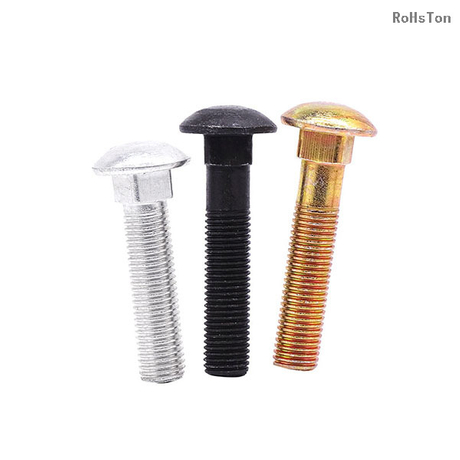

Carriage bolts, with their distinctive smooth, rounded head and square section directly beneath it, are designed for specific jobs – primarily securing wood or other soft materials where you need a finished look on one side and the square section bites into the material to prevent spinning during nut tightening. But what if you don't have the right size, can't find them locally, or the application isn't quite perfect? Here are some common alternatives, keeping their limitations in mind:

1. Hex Bolt (or Hex Cap Screw) with Washers:

2.

3.

• Why it works: Hex bolts are incredibly common and readily available in a vast range of sizes, grades, and materials. They provide a strong mechanical connection.

• How to substitute: Use a flat washer under the hex head to distribute load and potentially prevent the head from digging into softer materials like wood. Use a lock washer or a second flat washer (or a combination) under the nut. Crucially, you will need to drill a pilot hole sized correctly for the bolt shaft diameter.

• Limitations: The hex head is prominent and not as aesthetically smooth as a carriage bolt head. The biggest drawback: Unlike the carriage bolt's square neck, the hex head will spin freely unless you have access to hold it with a wrench while tightening the nut. This requires access to both sides or a way to immobilize the bolt head (e.g., clamping it). It doesn't "self-lock" into the material like a carriage bolt.

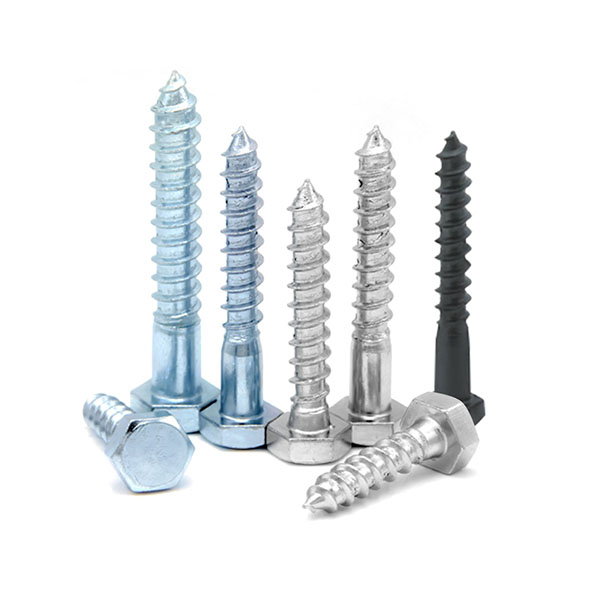

4. Lag Bolt (Lag Screw):

5.

• Why it works: Excellent for heavy-duty wood-to-wood connections where the bolt head doesn't need to be flush or particularly attractive. They have a hex head and coarse, aggressive threads that cut directly into the wood, eliminating the need for a nut in many applications.

• How to substitute: Drill an appropriate pilot hole (often slightly smaller than the root diameter of the lag thread) and drive it in with a wrench. No nut needed on the other side.

• Limitations: Head is large and hexagonal. Requires significant torque to install. Primarily for wood, not metal-to-wood or through-bolting applications requiring a nut. The head sits proud of the surface.

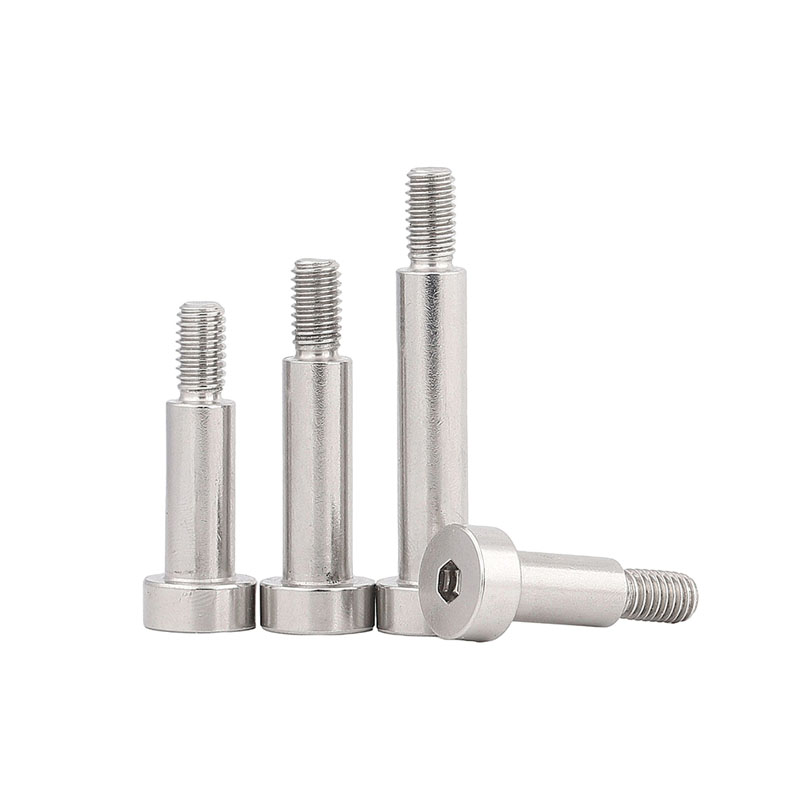

6. Shoulder Bolt (Stripper Bolt):

7.

• Why it works: Features a precision-machined, smooth, unthreaded shoulder section under the head (which can be hex, socket, or even button head). This shoulder can rotate freely in a precisely sized hole, acting like a bearing surface or pivot point.

• How to substitute: If the critical need is a smooth, unthreaded section under the head for pivoting or alignment (and the square neck bite isn't essential), a shoulder bolt can work well. Requires a precisely drilled hole for the shoulder diameter.

• Limitations: Significantly more expensive than standard bolts. Requires very precise hole sizing for the shoulder. The head type might not match the carriage bolt's low profile dome. Doesn't solve the "spinning head" problem during nut tightening like the square neck does.

8. Socket Head Cap Screw (Allen Bolt) with Washers:



• Why it works: Offers a very low-profile cylindrical head (especially button head or flat head versions) that can be more aesthetically pleasing than a hex head. Provides high strength.

• How to substitute: Similar to hex bolts – use flat washers under the head and under the nut. Requires a pilot hole and access to the head with an Allen wrench to prevent spinning while tightening the nut. Flat head versions can be countersunk for a flush finish.

• Limitations: Requires access to the head for tightening. The head is still distinct from a carriage bolt's dome. Doesn't have the square neck locking feature.

9. T-Nut (for Wood Applications):

10.

• Why it works: When you need a strong, flush-mount threaded insert in wood, especially for furniture or fixtures where the bolt will be inserted and removed frequently. Provides machine threads in wood.

• How to substitute: Install the T-nut into a pre-drilled hole on the "blind" side of the workpiece. You can then use a standard machine screw, hex bolt, or socket head cap screw from the visible side.

• Limitations: Not a direct bolt replacement. It's an insert. Requires installation into the wood first. The visible side will show the head of whatever bolt/screw you use with it, not necessarily a smooth dome.

Key Considerations When Choosing an Alternative:

• Head Aesthetics: Is the smooth, low-profile dome head essential? If yes, alternatives like hex or socket heads won't match.

• Preventing Spin: This is the biggest challenge. The carriage bolt's square neck is its key feature. Alternatives require a way to immobilize the head (wrench access, clamping) or accept that the head will spin (which might be acceptable if tightening isn't frequent).

• Material: Are you fastening wood, metal, or composite? Lag bolts are primarily for wood. T-nuts are for wood.

• Strength Requirements: Ensure the substitute bolt grade and diameter meet the shear and tensile strength needs of the application.

• Access: Do you have access to both sides during assembly? If not, preventing the bolt head from spinning becomes a major hurdle.

• Pilot Hole: Most alternatives require a correctly sized pilot hole. Carriage bolts in wood often rely on the square neck biting in without needing a perfectly sized hole.

Quick Reference Guide:

Conclusion:

While there's no perfect, drop-in replacement that replicates all features of a carriage bolt (especially the self-locking square neck), several options exist depending on your primary need. Hex bolts with washers are the most common general-purpose substitute, but be prepared to deal with holding the head to prevent spinning. Consider the application's requirements for aesthetics, spin prevention, strength, and material before choosing. If the square neck's anti-spin feature is critical and you don't have access to hold the head, finding the correct carriage bolt is strongly recommended. For wood-specific applications needing strength without a visible nut, lag bolts or T-nuts paired with another fastener are excellent alternatives.
