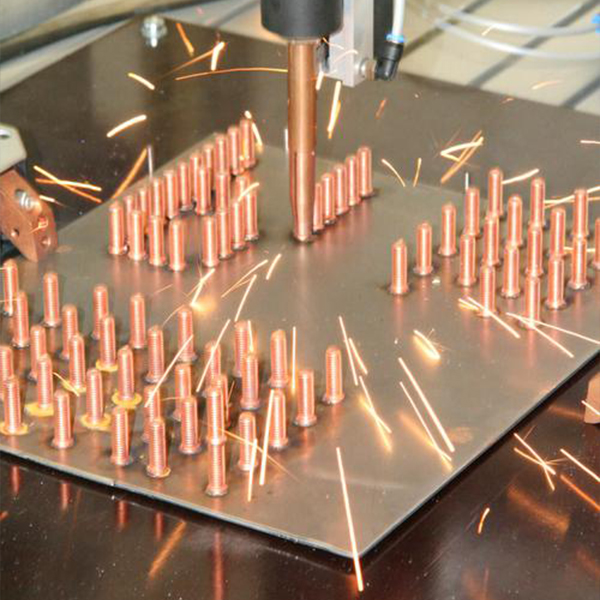

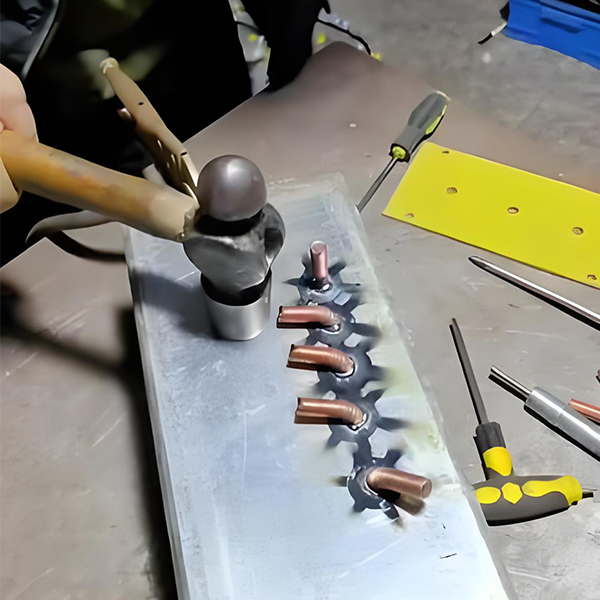

Stud welding, which includes welding threaded studs, pins, and other fasteners to a base metal, is a highly efficient and robust process. However, like any welding technique, it is susceptible to issues that can compromise joint integrity. Understanding these common problems, their causes, and how to prevent them is crucial for achieving strong, reliable welds.
The most prevalent issues generally fall into a few key categories:
This is one of the most critical defects. It occurs when the stud does not properly fuse to the base metal, resulting in a weak or non-existent bond.
Causes:
Contamination: The presence of oil, grease, rust, paint, or moisture on the stud ferrule, the stud base, or the workpiece surface.
Incorrect Settings: Using too low a current or too short a weld time for the stud size and material.
Poor Fit-Up: An excessive or inconsistent gap (lift) between the stud and the workpiece before the weld.
Worn Equipment: A worn chuck liner or collet causing inconsistent lift or misalignment.
Prevention:
Thoroughly clean the welding area on the workpiece and the base of the stud.
Use correct, dry, and undamaged ferrules.
Calibrate equipment regularly and use welding schedules (settings) recommended by the stud manufacturer.
Inspect and replace worn chucks, collets, and cables.

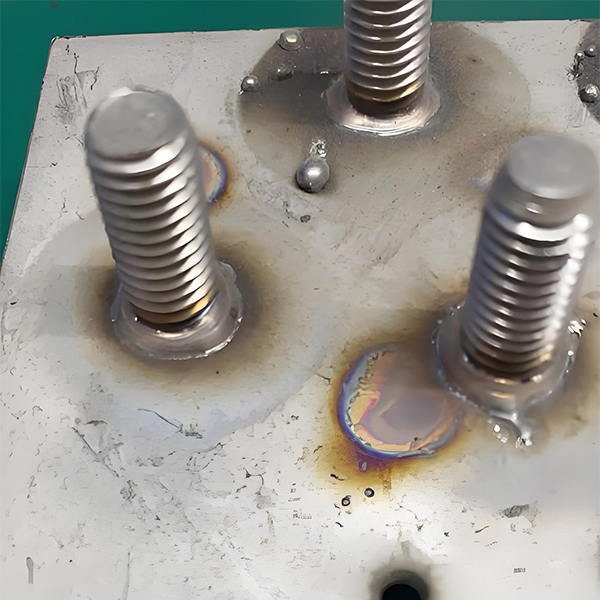

This happens when an excessive amount of molten metal is expelled from the weld zone, often leaving a weak, concave weld fillet.
Causes:
Excessive Heat: Using too high a current or too long a weld time.
Insufficient Pressure: The stud is not plunged into the molten pool with enough force or for a long enough duration (in capacitor discharge welding, this relates to penetration depth settings).
Incorrect Polarity: Especially for aluminum studs, which typically require reverse (DC+) polarity.
Prevention:
Optimize weld current and time settings.
Ensure the gun's plunge mechanism is functioning correctly and set to the proper depth.
Verify the machine's polarity settings match the base material and stud type.
Porosity appears as small cavities or holes within the weld fillet, weakening the joint by creating stress points.
Causes:
Gas Entrapment: Moisture, oil, or contaminants vaporize during welding, trapping gas in the molten metal.
Damaged Ferrules: A cracked or damp ceramic ferrule can release moisture or fail to contain the shielding gas properly.
Air Draughts: Strong drafts can disrupt the protective argon atmosphere in drawn-arc welding.
Prevention:
Meticulous cleaning of both the stud and workpiece.
Store ferrules in a dry place and inspect them for cracks before use.
Shield the welding area from strong winds or drafts.

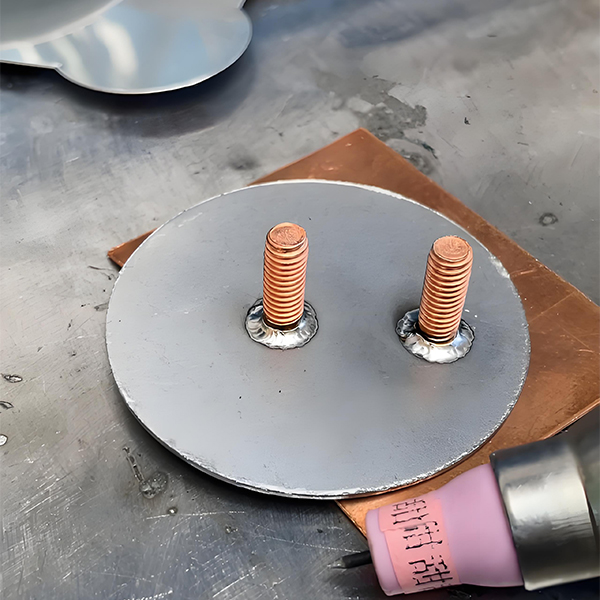

A good weld should have a uniform, concentric fillet around the entire base of the stud. An uneven fillet indicates an inconsistent weld.
Causes:
Misaligned Stud: The stud is not held perpendicular to the workpiece during the weld cycle.
Worn Chuck or Collet: Causes the stud to wobble or plunge at an angle.
Uneven Surface: Welding onto a curved or irregular surface without proper preparation.
Arc Blow: Magnetic fields deflecting the welding arc, more common when welding near the edge of a plate or with ferromagnetic materials.
Prevention:
Ensure the welding gun is held straight and steady.
Maintain and replace worn tooling.
Use a foot or a special fixture for welding on curved surfaces to ensure perpendicular contact.
For arc blow, change the ground clamp location or use dual grounding.
The stud detaches with little to no force, sometimes with a characteristic "football" or "mushroom" shape of metal on its base.
Causes:
Reverse Polarity: Using the wrong polarity (e.g., DC- for aluminum) prevents proper penetration.
Insufficient Power: Similar to no fusion, but some minor fusion may occur before failure.
Excessive Lift: Too much lift can stretch and destabilize the arc.
Prevention:
Double-check polarity settings on the welding machine.
Verify the welding schedule is correct for the stud diameter and material combination.

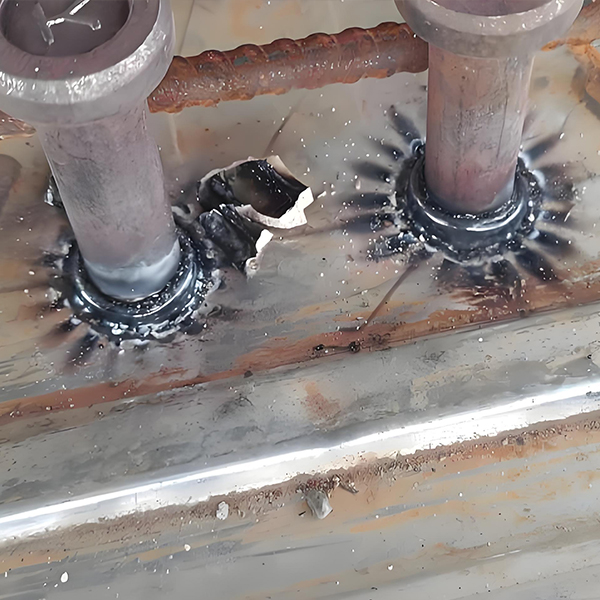

This is the undesirable melting of the base metal, creating a hole. It is a common issue when welding onto thin sheet metal.
Causes:
Excessive Heat: Too high current or too long weld time for the thickness of the base material.
Incorrect Stud Type: Using a large-diameter stud on thin material.
Prevention:
Reduce current and weld time settings.
Switch to a shorter or smaller diameter stud, or use a capacitor discharge (CD) process which is better suited for thin materials.
Most stud welding problems are preventable. A consistent focus on proper preparation, correct equipment settings, and rigorous maintenance is the key to success. Always refer to the equipment and stud manufacturer's guidelines for the recommended procedures and parameters. By systematically identifying and addressing these common issues, operators can ensure high-quality, durable welds every time.
