In the world of metal fabrication and construction, creating strong, permanent threads on metal surfaces is a common requirement. One highly efficient and robust method to achieve this is by using welded studs. This technique is indispensable across various industries, from shipbuilding to appliance manufacturing. This article will explore what a welding stud is, the tools needed for installation, a step-by-step guide to the process, and its common applications.
A welded stud, often called a welding stud or drawn arc stud, is a fastener (like a bolt without a head) that is designed to be welded on one end to a base metal. The other end is typically threaded to accept a nut or is shaped for a specific function. The weld creates a metallurgical bond that is often stronger than the stud itself, providing an extremely durable attachment point.

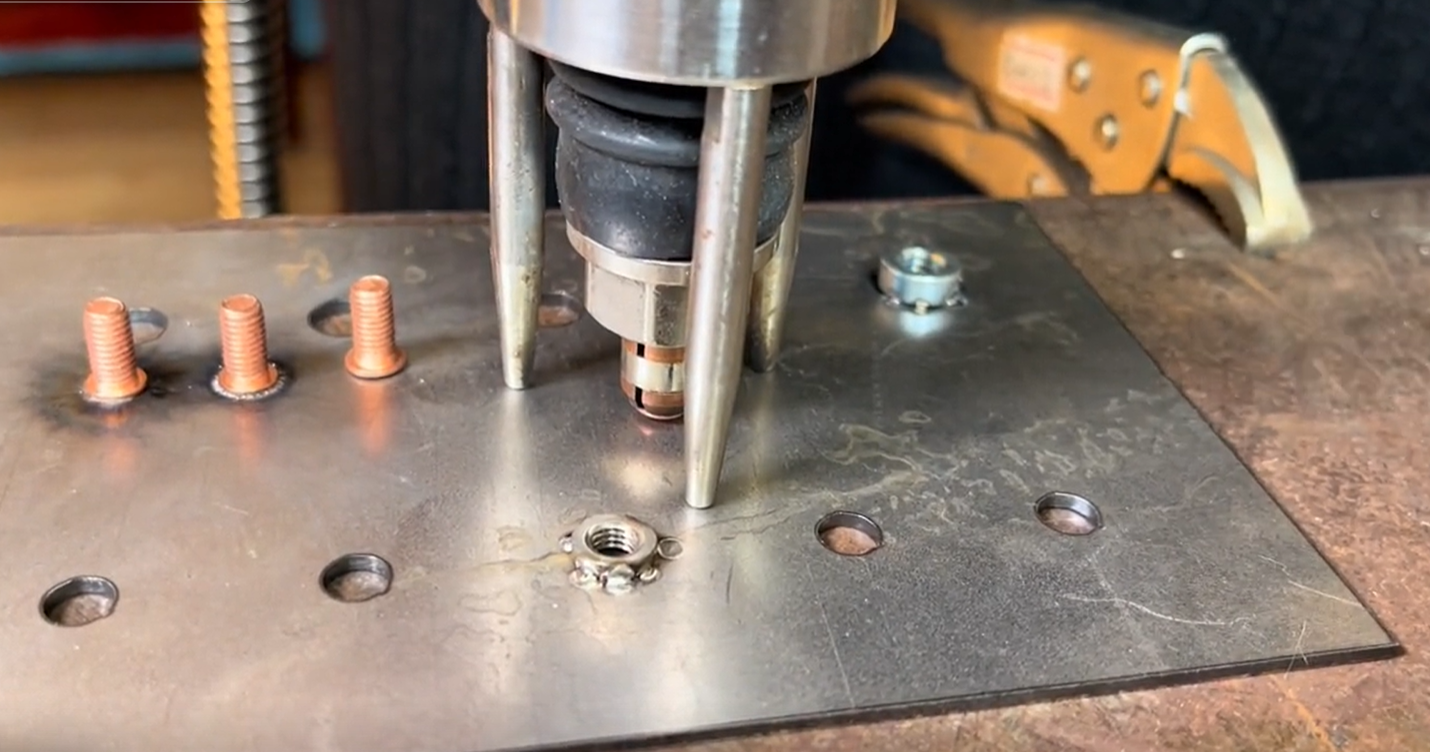

The most common type is the Drawn Arc Stud, which uses a specialized welding gun to create the bond. Another type is the Capacitor Discharge (CD) Stud, which is ideal for thinner materials and offers a very fast, clean weld with minimal marring on the opposite side.
Using the correct tools is crucial for a successful and strong weld.

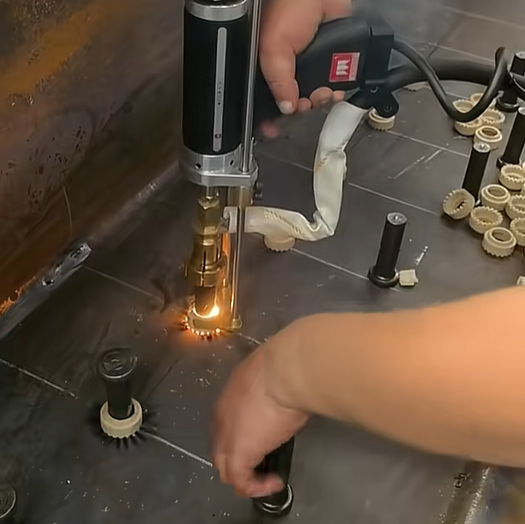

Stud Welding Gun: This is the primary tool. It holds the stud in place, creates the electrical circuit, and generates the necessary arc force. It has a chuck to grip the stud and a lift mechanism that precisely controls the stud's movement during the weld cycle.
Welding Power Supply: A dedicated DC power source (a stud welder) is required. It provides a controlled, timed burst of high current to create the welding arc and melt the stud and base metal.
Welding Studs: These are not regular bolts. They have a specially designed weld end, often with a small, precise tip or a flux load embedded in the end to stabilize the arc and deoxidize the weld pool.

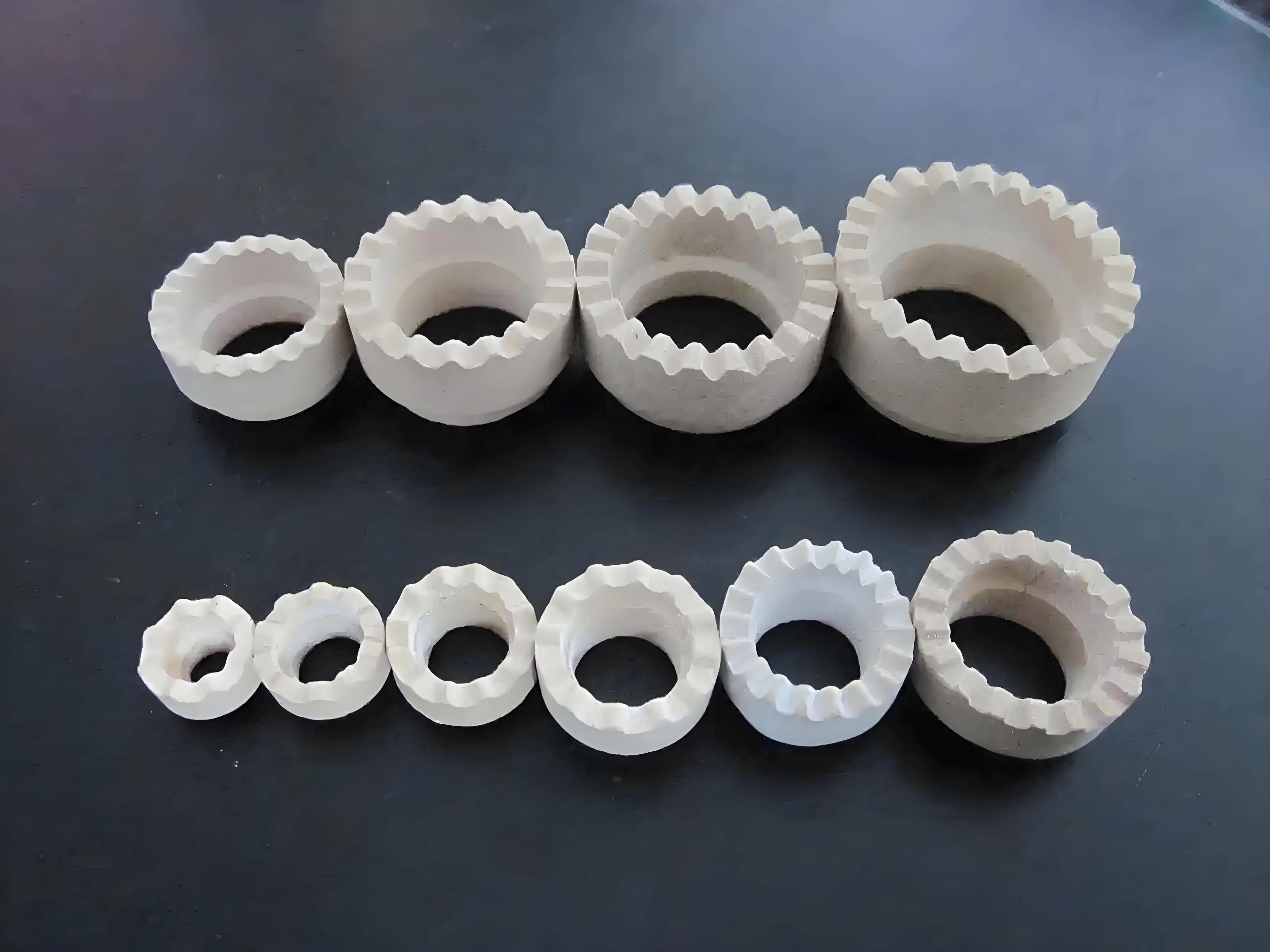

Ferrule (Ceramic Arc Shield): This is a small, disposable ceramic ring that is placed around the base of the stud before welding. It contains the molten metal, shapes the weld fillet, shields the arc from the atmosphere, and prevents spatter.
Cables and Ground Clamp: Heavy-duty cables connect the power supply to the gun. A solid ground clamp must be securely attached to the workpiece to complete the electrical circuit.
The stud welding process is fast and repeatable, often taking less than a second per stud.
Step 1: Safety First
Always wear appropriate Personal Protective Equipment (PPE), including a welding helmet with the correct shade, flame-resistant clothing, and safety glasses. Ensure the work area is clean, dry, and well-ventilated.
Step 2: Surface Preparation
This is the most critical step for a quality weld. The base metal surface at the weld point must be absolutely clean and free of rust, paint, oil, scale, or moisture. Use a grinder, wire brush, or solvent to clean the area down to bare, shiny metal. A poor surface will result in a weak or failed weld.
Step 3: Setup
Securely connect the ground clamp directly to the workpiece, close to the welding area.

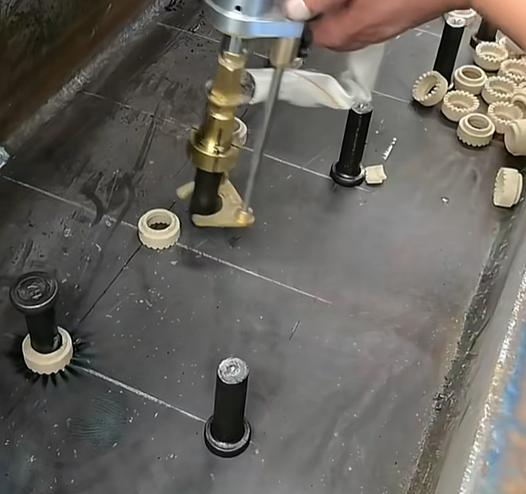

Insert the correct stud into the gun's chuck.
Place the ceramic ferrule over the stud's weld base.
Set the welding parameters (amperage, lift, and time) on the power supply according to the stud size and base material thickness. Consult the manufacturer's chart.
Step 4: Positioning and Welding
Place the gun with the stud and ferrule squarely against the workpiece.
Press the trigger on the gun. This initiates an automated sequence:
The gun energizes the circuit.
The internal solenoid lifts the stud a pre-set distance from the workpiece, drawing a controlled pilot arc.
The intense heat of the arc instantly melts the end of the stud and the corresponding spot on the base metal.
The gun then forcefully plunges the molten stud tip into the molten pool on the workpiece.
The current is cut off, and the metal solidifies almost instantly, creating a strong fusion weld.
Step 5: Finishing
Release the trigger and lift the gun away from the workpiece.
The stud will be firmly welded in place.

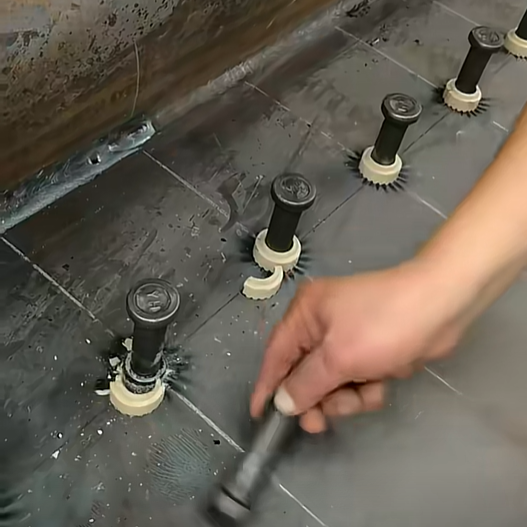

Tap the ceramic ferrule with a chipping hammer to break it away from the stud, revealing a clean, consistent weld fillet.
Welded studs are versatile and used in countless scenarios where a strong, threaded attachment point is needed on a metal surface.
Construction and Building: Attaching wood or steel framing to steel beams, embedding anchors in concrete (where the stud is welded to a rebar cage or embed plate), and securing facade systems.
Shipbuilding and Marine: Fastening pipes, cables, insulation, and decking to the hull and superstructure of ships and offshore platforms.
Automotive and Transportation: Assembling truck bodies, railcars, and trailers. They are used to mount components, insulation, and interior panels.
Appliance Manufacturing: Securing internal components, brackets, and outer shells in ovens, refrigerators, and washing machines.
HVAC and Ductwork: Installing hangers and supports for ducting and piping systems.
Stud welding is a highly efficient, strong, and clean method for installing fasteners. By understanding the components, using the right tools, and following a meticulous preparation and welding process, you can create durable threaded points that are essential for a vast range of industrial and commercial applications. Unlike drilling and tapping, it does not weaken the base metal with a hole and is significantly faster, making it a preferred choice for high-volume, high-strength fastening needs.
