How Does A Self-Tapping Thread Insert Work?

Stripped or weakened threads in softer materials like aluminum, plastic, or thin sheet metal are a common and frustrating problem. Self-tapping thread inserts (also known as thread repair inserts, screw thread inserts, or simply "threaded coils") offer a robust and surprisingly simple solution. But how exactly do they transform a damaged hole into a strong, reliable thread? Let's break down their clever mechanism:

1. The Problem and the Solution Concept:

• Problem: Original threads in soft materials can wear out, strip, or become damaged from repeated assembly/disassembly, over-torque, corrosion, or vibration. Drilling and tapping a larger hole isn't always feasible.

• Solution Concept: Insert a permanent, internally threaded sleeve made of significantly harder material (usually stainless steel or brass) into the damaged hole. This sleeve provides new, durable female threads. The "self-tapping" aspect refers to how this sleeve creates its own external threads within the existing damaged hole during installation.

2. The Insert's Design:

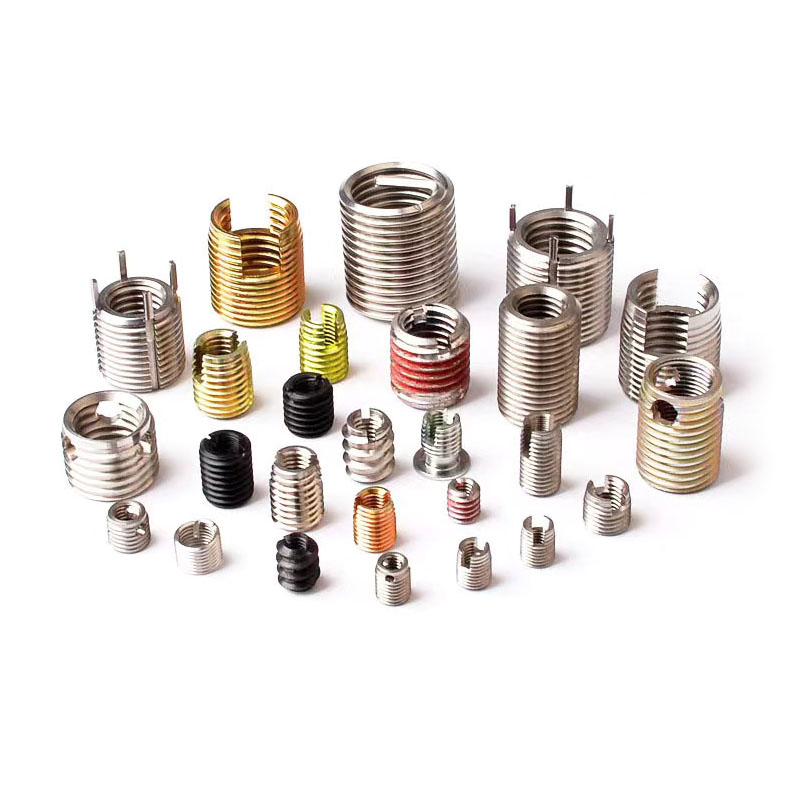

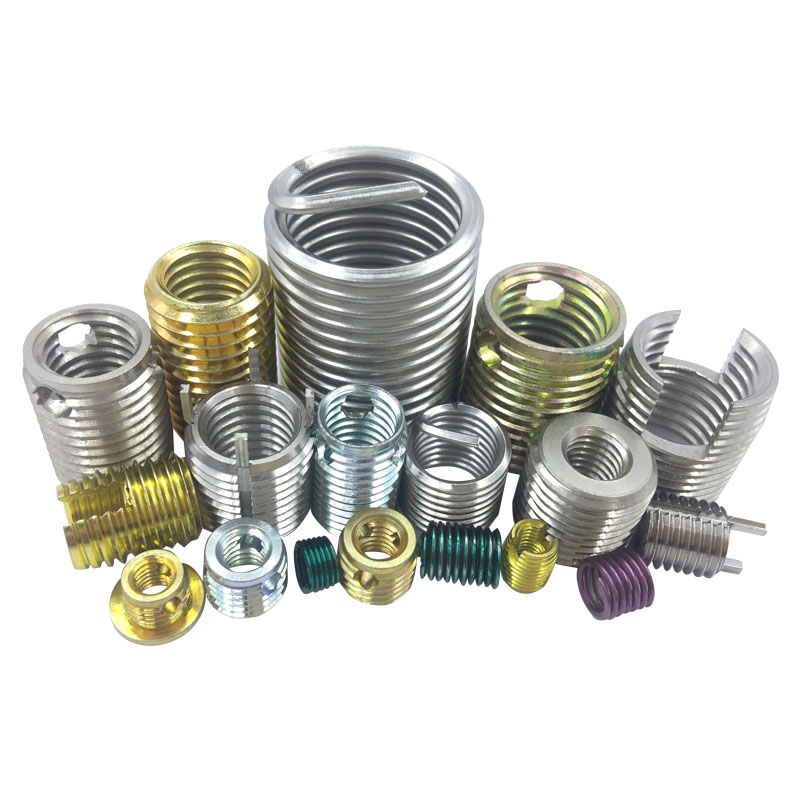

A self-tapping insert is a precision-engineered helical coil, typically diamond-shaped in cross-section:

• Internal Threads: The inner diameter has standard machine screw threads (e.g., M4, M5, 1/4-20, 10-32) ready to receive the mating screw or bolt.

• External Thread-Forming Edges: The outer surface features sharp, hardened cutting edges running along the coil.

• Drive Feature: One end has a tang (a small protruding tab) or sometimes an internal hex drive to engage the installation tool.

• Locking Feature: Many inserts have one or more locking coils near the drive end designed to deform slightly and lock the insert in place after installation.

3. The Installation Process - How the "Self-Tapping" Works:

Here's the step-by-step magic:

1. Prepare the Hole: The damaged hole is drilled out to a specific, precise diameter recommended by the insert manufacturer. This diameter is larger than the original thread's minor diameter but smaller than its major diameter.

2. Tap the Hole (Sometimes): Crucially, no standard tap is used to cut new threads in the hole itself. The hole remains smooth-walled after drilling. Note: Some specific insert types might require a special undersized "starter" tap, but true self-tapping inserts typically do not.

3. Engage the Insert with the Tool: The insert is screwed onto a dedicated installation mandrel or driver. The tool engages the insert's tang or drive feature.

4. Starting the Insert: The installer carefully aligns the insert coaxially with the prepared smooth hole and applies firm downward pressure while rotating the tool clockwise.

5. The "Self-Tapping" Action: As the insert is rotated under pressure, its sharp external cutting edges bite into the wall of the smooth, drilled hole. The hardened steel coil essentially acts like its own tap:

• The cutting edges shear away material from the wall of the host hole.

• This sheared material is displaced, flowing into the grooves of the helical coil.

• This process simultaneously cuts new external threads onto the insert itself (which are embedded into the hole wall) and forms the corresponding mating internal threads within the host material that grip the insert tightly.

6. Driving Home: The installer continues rotating the insert until it is fully seated, usually flush with or slightly below the material surface. Correct installation torque is important – enough to fully form the threads but not so much as to distort the insert or material.

7. Locking the Insert (Optional but Common): Once fully seated, a small final increase in torque (or sometimes a reverse turn) causes the specially designed locking coil(s) near the top to collapse inward slightly. This deformation jams the coil against the newly formed threads in the host material, mechanically locking the insert firmly in place and preventing it from backing out when the screw is removed later.

8. Breaking the Tang: For tang-drive inserts, once the insert is fully seated and locked, the installation tool is reversed slightly. A notch on the tool catches the tang and snaps it off cleanly at the break groove. The tang is discarded, leaving a smooth, unobstructed internal thread ready for use.

4. The Result:

• A hardened steel threaded sleeve is now permanently embedded in the host material.

• The sleeve's internal threads provide a strong, wear-resistant, and dimensionally correct mating surface for the original screw or bolt.

• The insert's external "threads," formed during installation, create a large surface area contact with the host material, distributing load effectively and providing excellent pull-out and shear strength, often exceeding the strength of the original threads.

Key Advantages:

• Repairs Damaged Threads: Restores stripped holes effectively.

• Strengthens Weak Threads: Provides robust threads in soft or thin materials.

• Vibration Resistance: The locking coil design helps prevent loosening.

• Corrosion Resistance: Stainless steel inserts resist corrosion.

• Standard Fasteners: Uses original screws/bolts.

• Durable: Creates a long-lasting repair.

Common Applications:

Automotive (engine blocks, cylinder heads, brake components), aerospace, machinery, electronics enclosures, appliances, furniture, and anywhere strong, reliable threads are needed in softer substrates or for repair.

In essence, a self-tapping thread insert works by transforming its own body into a tap as it's installed. It cuts its own customized external mating threads directly into the walls of a prepared smooth hole, creating an exceptionally strong and permanent threaded reinforcement within the host material. It's an elegant solution born out of practical engineering necessity.
