Standoff spacers, also known as threaded spacers or standoffs, are essential hardware components in mechanical and electronic assemblies. They provide structural support, maintain precise spacing between components, and ensure electrical isolation. This article explores their characteristics, types, and practical applications, offering a comprehensive guide for effective usage.
Standoff spacers are cylindrical or hexagonal fasteners with threaded ends, designed to separate and secure components in assemblies. They prevent direct contact between parts, reducing risks of short circuits, mechanical stress, or heat transfer. Common applications include PCB mounting, industrial machinery, and consumer electronics, where precise alignment and insulation are critical.

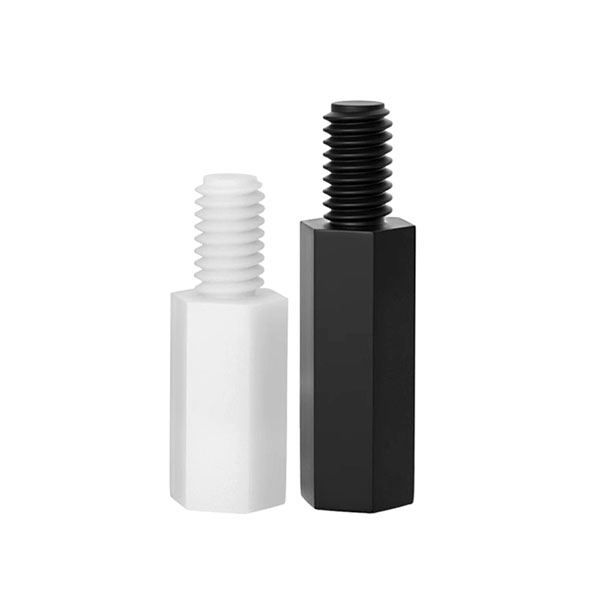

Nylon (PA6): Lightweight, corrosion-resistant, and non-conductive, ideal for electrical insulation in low-stress environments.

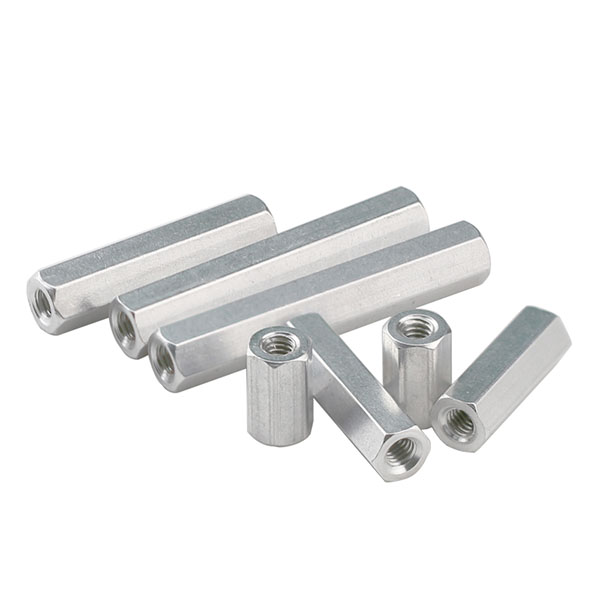

Aluminum: Combines strength with lightweight properties, often coated for enhanced durability (e.g., iridite or anodized finishes).

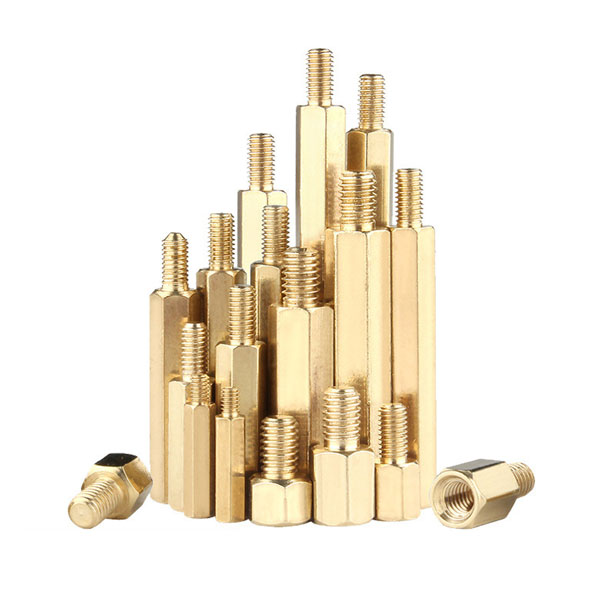

Brass: Offers excellent conductivity and corrosion resistance, suitable for grounding applications.

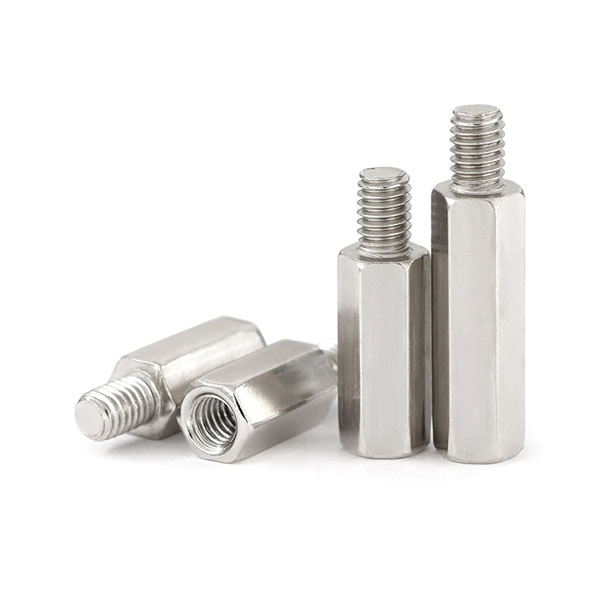

Stainless Steel: High tensile strength and resistance to extreme temperatures, used in harsh industrial settings.
Iridite/Chromate Coating: Improves corrosion resistance on aluminum spacers.
Nickel Plating: Enhances conductivity and wear resistance for brass or steel spacers.
Anodizing: Provides a durable, non-conductive layer for aluminum.
Standoff spacers vary in design to suit specific needs:

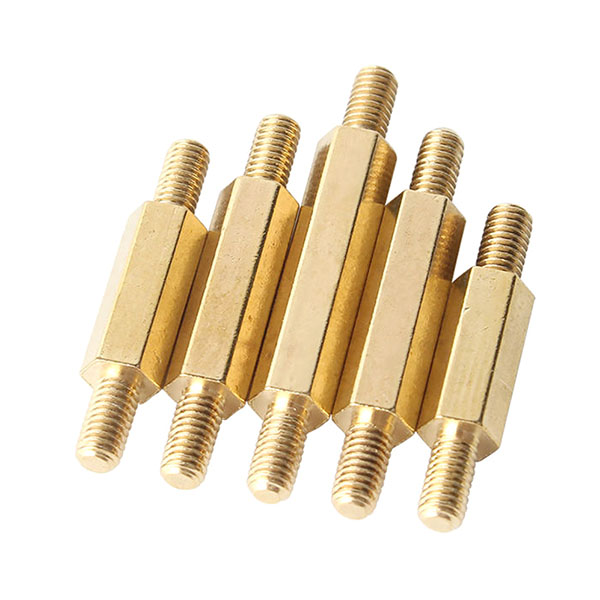

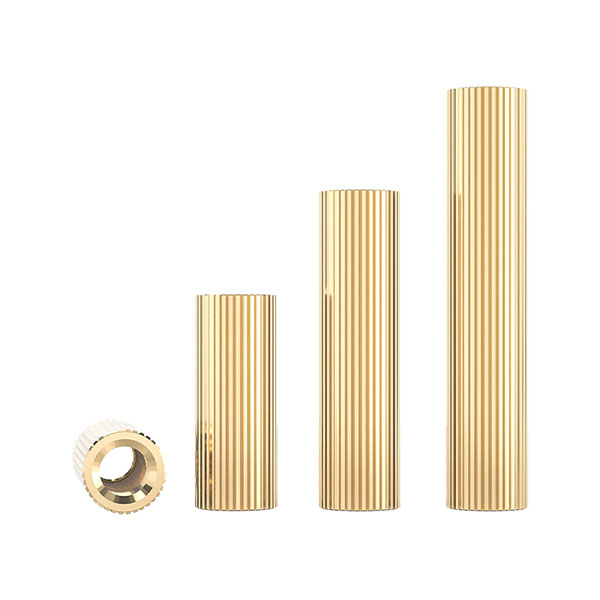

Thread Types: Male-female, female-female, or male-male ends for versatile connections.

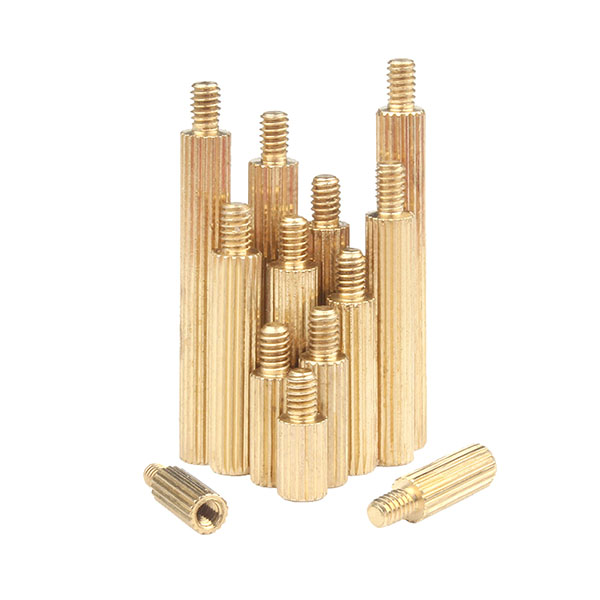

Shapes: Hexagonal (for tool gripping) or round (for compact spaces).
Holes: Through-hole or threaded designs to accommodate screws or bolts.
Metric Threads: M3, M4, M6 (e.g., M3×5mm for small PCBs).
Imperial Sizes: #4-40, #6-32 (common in North American electronics).
Lengths: Range from 3mm to 20mm, with customizable options for specialized applications.

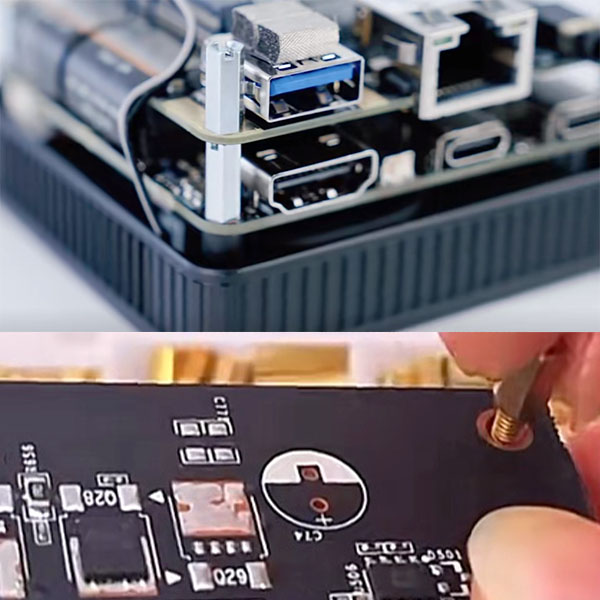

PCB Mounting: Isolate circuit boards from enclosures to prevent electrical interference.
Mechanical Assembly: Maintain spacing between gears, panels, or heat-sensitive components.
Aerospace and Automotive: Secure components in high-vibration environments.
Consumer Electronics: Used in laptops, routers, and LED fixtures for compact, organized layouts.
Select the Right Type:
Choose material based on conductivity, weight, and environmental needs (e.g., nylon for insulation, stainless steel for durability).
Match thread size and length to the mounting hardware and component thickness.
Installation Steps:
Step 1: Align the spacer between components (e.g., PCB and chassis).
Step 2: Insert a screw through one component into the spacer’s threaded end.
Step 3: Tighten with a hex key or screwdriver, ensuring even pressure to avoid over-torquing.
Design Considerations:
Thermal Expansion: Use aluminum or steel in high-temperature environments to prevent deformation.
Electrical Clearance: Ensure sufficient standoff height (e.g., >0.15mm for PCB wave soldering).
Vibration Resistance: Opt for threaded spacers with locking features in mobile or industrial equipment.
Avoid Over-Tightening: This can strip threads or damage components.
Use Anti-Corrosive Coatings: For outdoor or humid environments.
Organize with Kits: Pre-sorted standoff kits (e.g., mixed sizes and materials) streamline assembly workflows.
Standoff spacers are indispensable for ensuring precision and reliability in modern engineering. By selecting appropriate materials, sizes, and installation methods, engineers can optimize performance across industries—from consumer electronics to aerospace systems. For specialized requirements, offer customizable solutions to meet rigorous standards.
